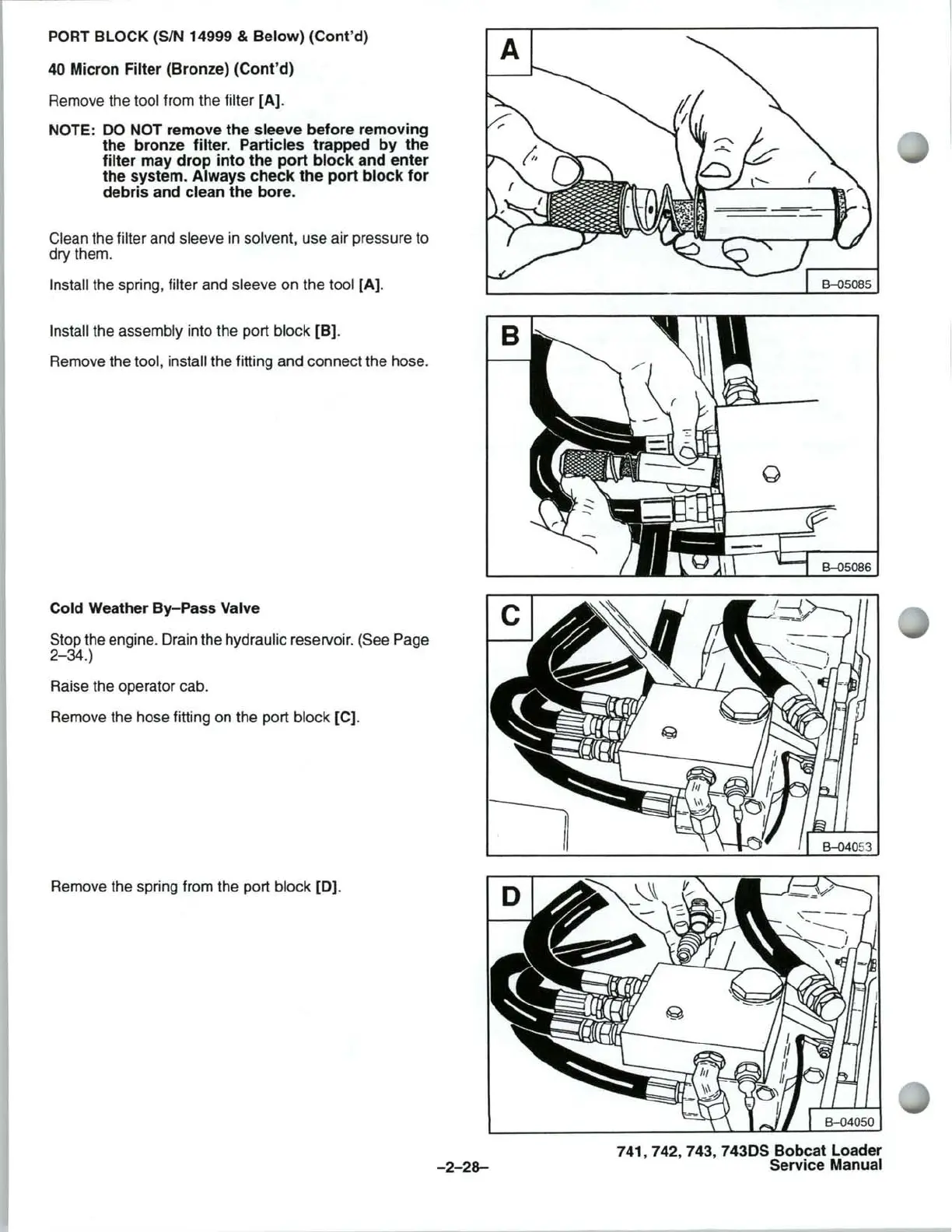

PORT BLOCK (SIN 14999 & Below) (Cont'd)
40 Micron Filter (Bronze) (Cont'd)
Remove the
tool from the filter [A).
NOTE: DO NOT remove the sleeve before removing
the bronze filter.
Particles trapped by the
filter may drop into the port block and enter
the system. Always check the port block for
debris and
clean the bore.
Clean the filter and sleeve in solvent, use air pressure to
dry them.
Install the spring, filter and sleeve on the tool [A).
Install the assembly into the port block [B).
Remove the
tool, install the fitting and connect the hose.
Cold Weather
By-Pass
Valve
Stop
the engine. Drain the hydraulic reservoir. (See Page
2-34
.)
Raise the operator cab.
Remove the hose fitting on the port
block [C).
Remove the spring from the port
block
[0).
-2-28-
741,742,743,
7430S
Bobcat Loader
Service Manual
