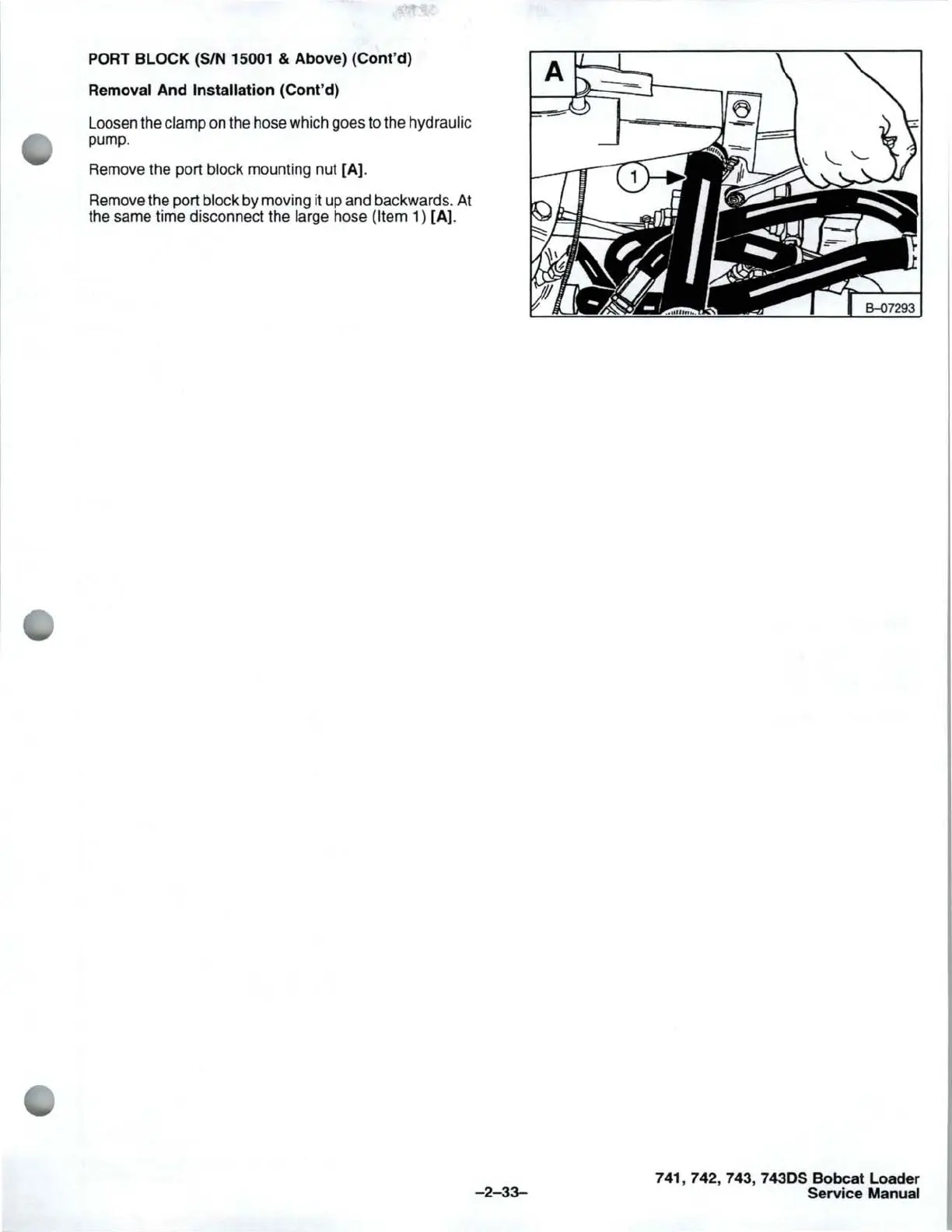

PORT BLOCK (SIN 15001 & Above) (Cont'd)
Removal And Installation (Cont'd)
Loosen the clamp on the hose which goes to the hydraulic
pump.
Remove the port block mounti
ng nut [A) .
Remove the port block by moving it up and backwards. At
the same time disconnect the large hose
(Item 1) [A).
-2-33-
741, 742, 743, 7430S Bobcat Loader
Service Manual
