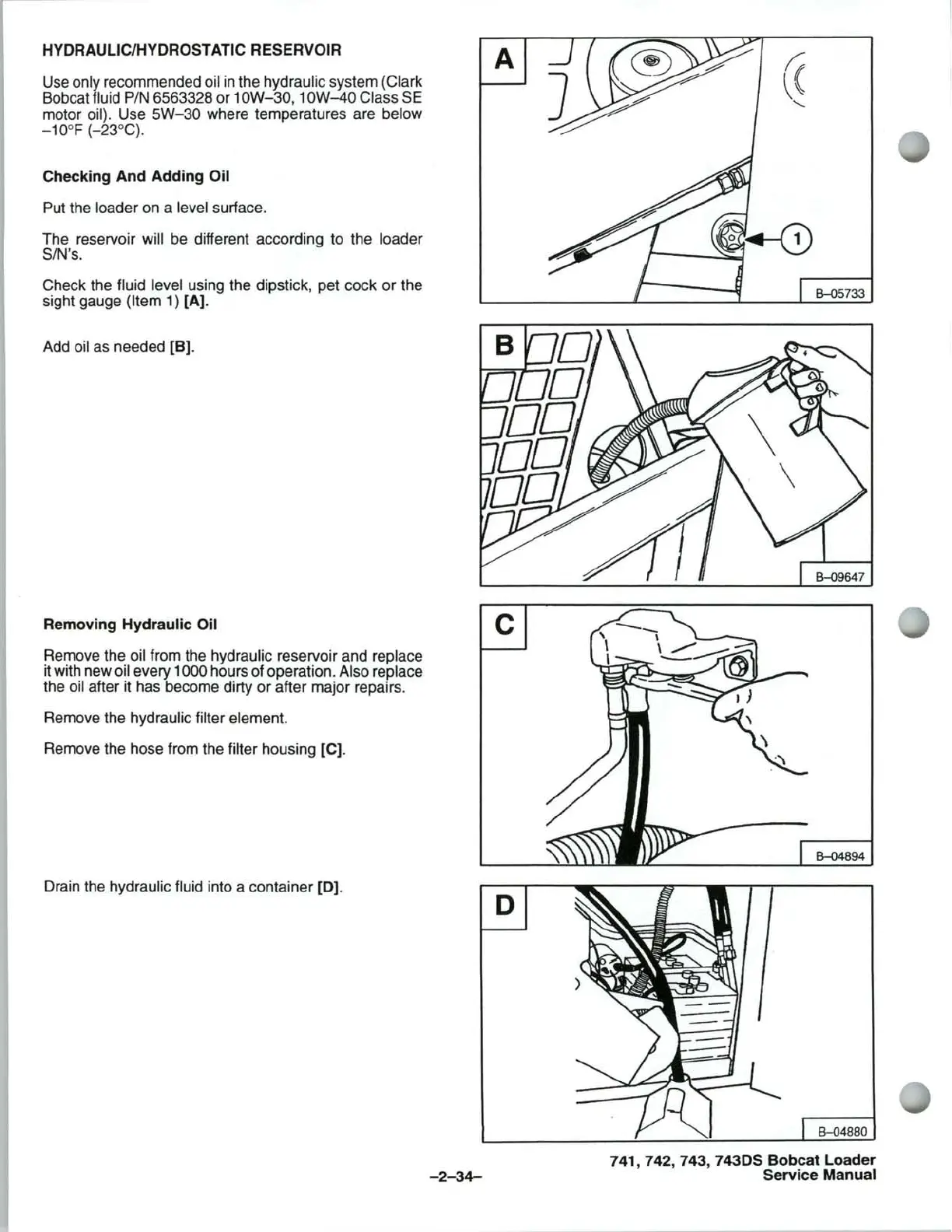

HYDRAULIC/HYDROSTATIC RESERVOIR
Use only recommended oil
in
the hydraulic system (Clark
Bobcat fluid
PIN 6563328 or
10W-30
, 1 OW-40 Class SE
motor oil). Use
5W-30
where temperatures are below
-10
°F (-23°C).
Checking And Adding
Oil
Put the loader on a level surface.
The reservoir will be different according to the loader
SIN's.
Check the fluid level using the dipstick, pet cock
or
the
sight gauge
(Item 1) [A).
Add oil as needed
[B).
Removing Hydraulic Oil
Remove the oil from the hydraulic reservoir and replace
it with new oil every
1000 hours of operation. Also replace
the oil after it has become dirty
or
after major repairs.
Remove the hydraulic filter element.
Remove the hose from the filter housing
[C).
Drain the hydraulic fluid into a container
(0).
A
c
D
-2-34-
8-05733
8-09647
8-04894
8-04880
741 ,
742,743,
7430S
Bobcat Loader
Service Manual
