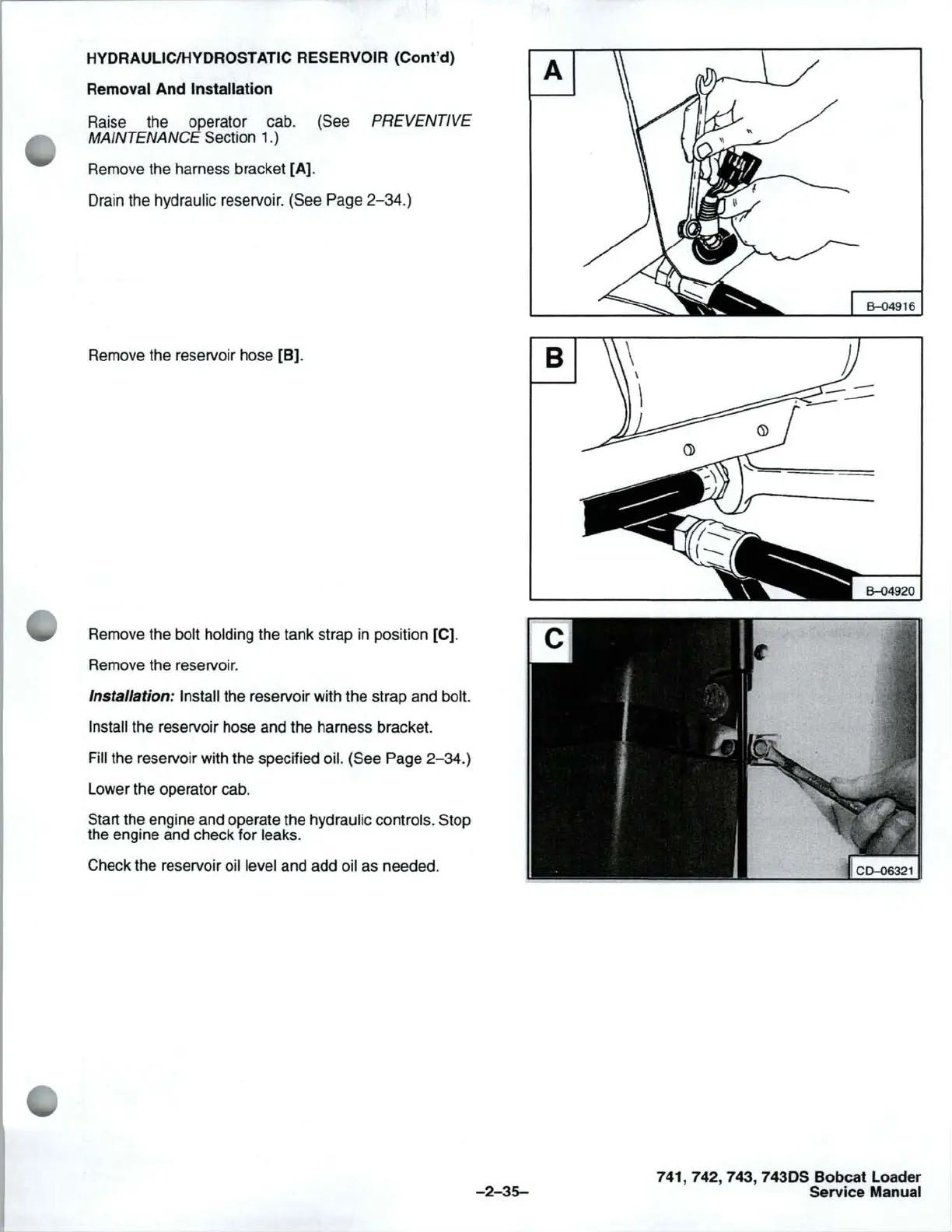

HYDRAULIC/HYDROSTATIC RESERVOIR (Cont'd)
Removal And Installation
Raise the operator cab. (See PREVENTIVE
MAINTENANCE Section 1.)
Remove the harness bracket [A].
Drain the hydraulic reservoir.
(See Page
2-34.)
Remove the reservoir hose
[B].
Remove the bolt holding the tank strap
in
position [C].
Remove the reservoir.
Installation: Install the reservoir with the strap and bolt.
Install the reservoir hose and the harness bracket.
Fill the reservoir with the specified oil.
(See Page
2-34.)
Lower the operator cab.
Start the engine and operate the hydraulic controls. Stop
the engine and check for leaks.
Check the reservoir oil level and add oil as needed.
A
B
-2-35-
B-04916
B-04920
741, 742, 743, 743DS Bobcat Loader
Service
Manual
