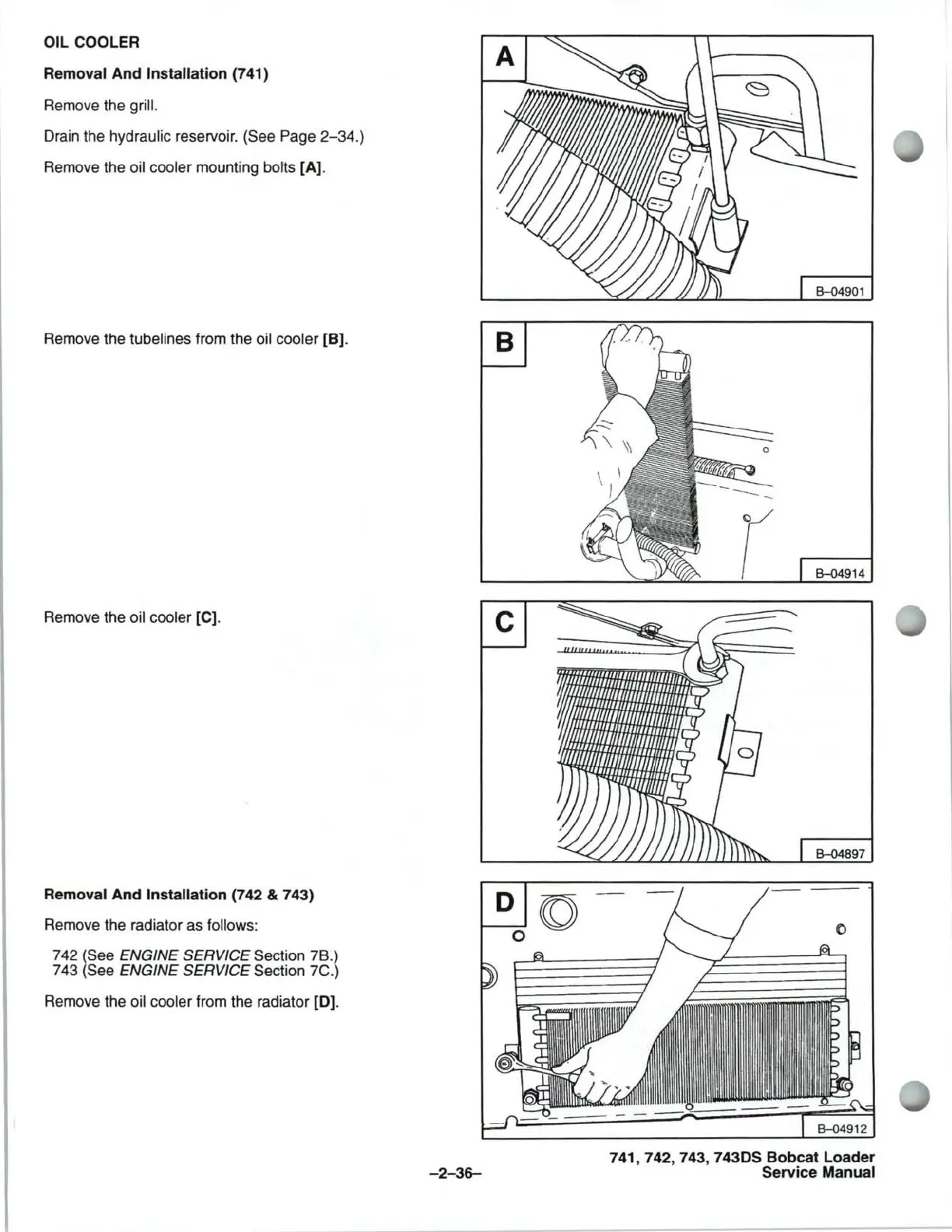

OIL COOLER
Removal
And Installation (741)
Remove the grill.
Drain the hydraulic reservoir. (See Page 2-34.)
Remove the oil cooler mounting bolts [A].
Remove the tubelines from the oil cooler [B].
Remove the oil cooler [C].
Removal And Installation (742 & 743)
Remove the radiator as follows:
742 (See ENGINE SERVICE Section 7B.)
743 (See ENGINE SERVICE Section 7e.)
Remove the oil cooler from the radiator [0].
B
c
-2-36-
B-04914
B-04897
741, 742, 743, 7430S Bobcat Loader
Service
Manual
