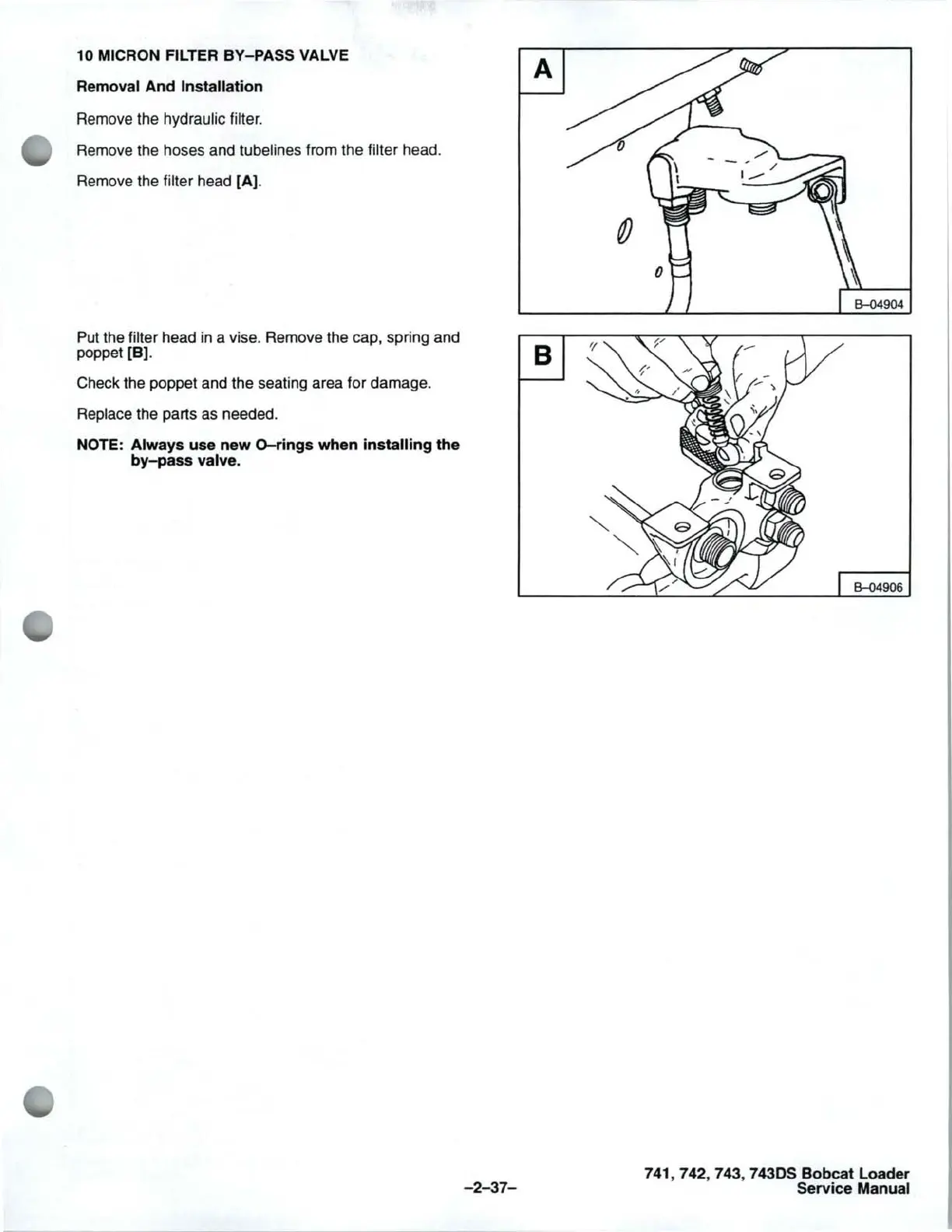

10 MICRON FILTER BY-PASS VALVE
A
Removal And Installation
Remove the hydraulic filter.
Remove the hoses and
tubelines from the filter head.
Remove the filter head [A].
Put the filter head
in
a vise. Remove the cap, spring and
poppet [B]. B
Check the poppet and the seating area for damage.
Replace the parts as needed.
NOTE: Always use new O-rings when installing the
by-pass
valve.
-2-37-
B-04906
741 , 742, 743,
7430S
Bobcat Loader
Service Manual
