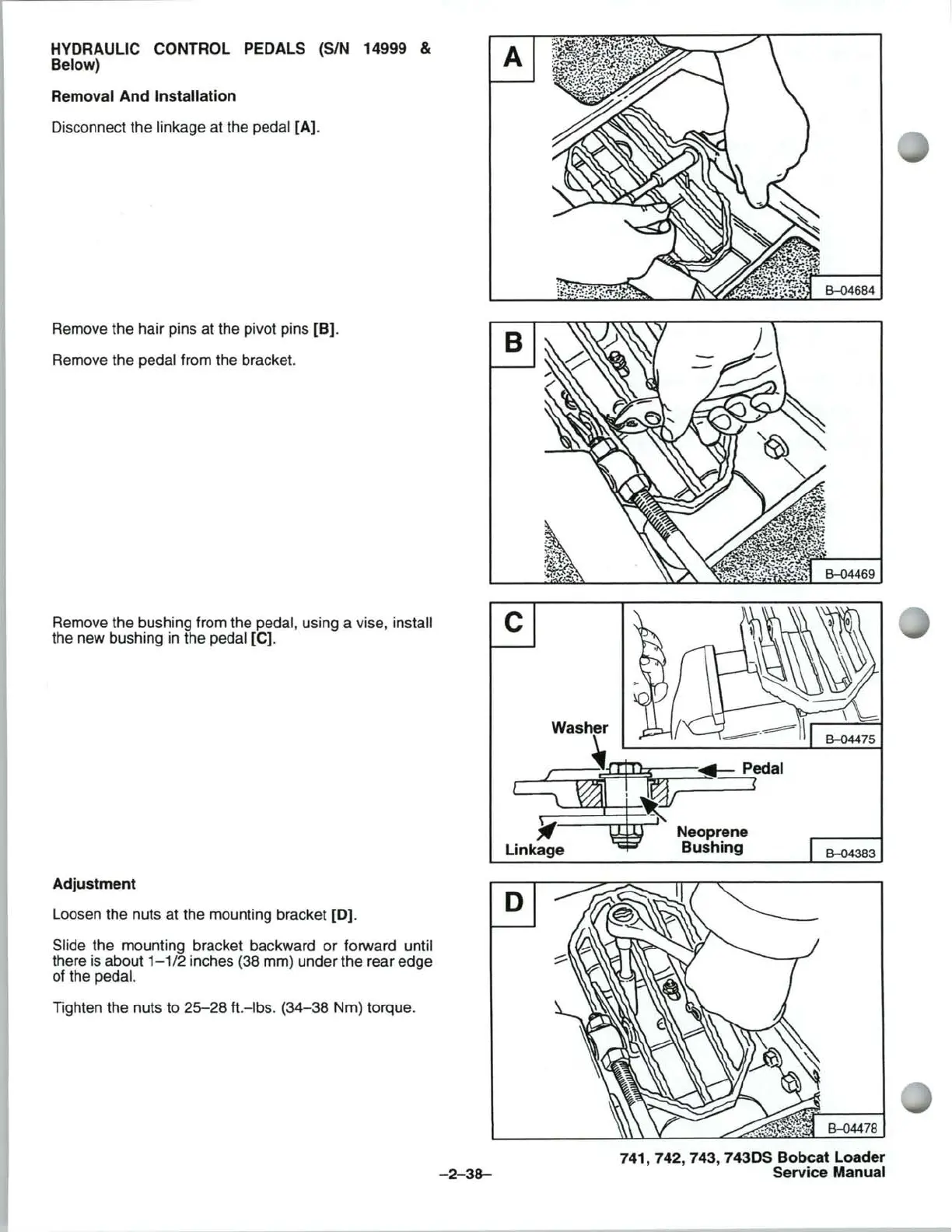

HYDRAULIC CONTROL PEDALS (SIN 14999 & A
Below)
Removal And Installation
Disconnect the linkage at the pedal [A).
Remove the hair pins at the pivot pins [B).
Remove the
pedal from the bracket.
Remove the bushing from the
pedal, using a vise, install C
the new bushing in the pedal [C).
Adjustment
Loosen the nuts at the mounting bracket [0).
Slide the mounting bracket backward or forward until
there is about 1-1/2 inches (38 mm) under the rear edge
of the
pedal.
Tighten the nuts to 25-28 ft. -Ibs . (34-38 Nm) torque.
o
-2-38-
Neoprene
Bushing
B-04684
B-04469
B-04383
B-04478
