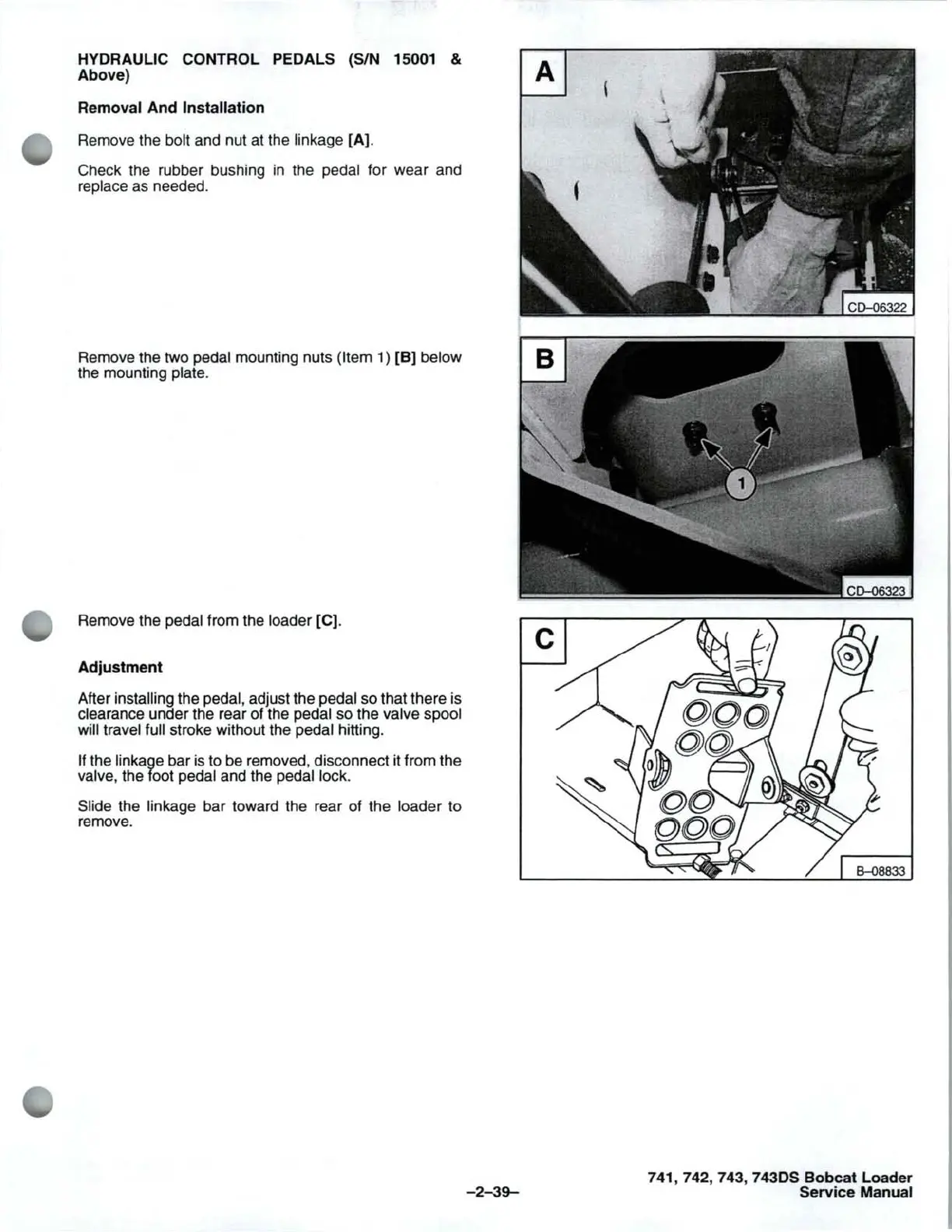

HYDRAULIC CONTROL PEDALS (SIN 15001 &
Above)
Removal And
Installation
Remove the bolt and nut at the linkage [A).
Check the rubber bushing
in
the pedal for wear and
replace as needed.
Remove the two
pedal mounting nuts (Item
1)
[B]
below
the mounting plate.
Remove the pedal from the loader [C].
Adjustment
After installing the pedal, adjust the pedal so that there is
clearance under the rear of the pedal so the valve spool
will travel full
stroke without the pedal hitting.
If the linkage bar
is
to be removed, disconnect it from the
valve, the foot pedal and the pedal lock.
Slide
the linkage bar toward the rear of the loader to
remove.
