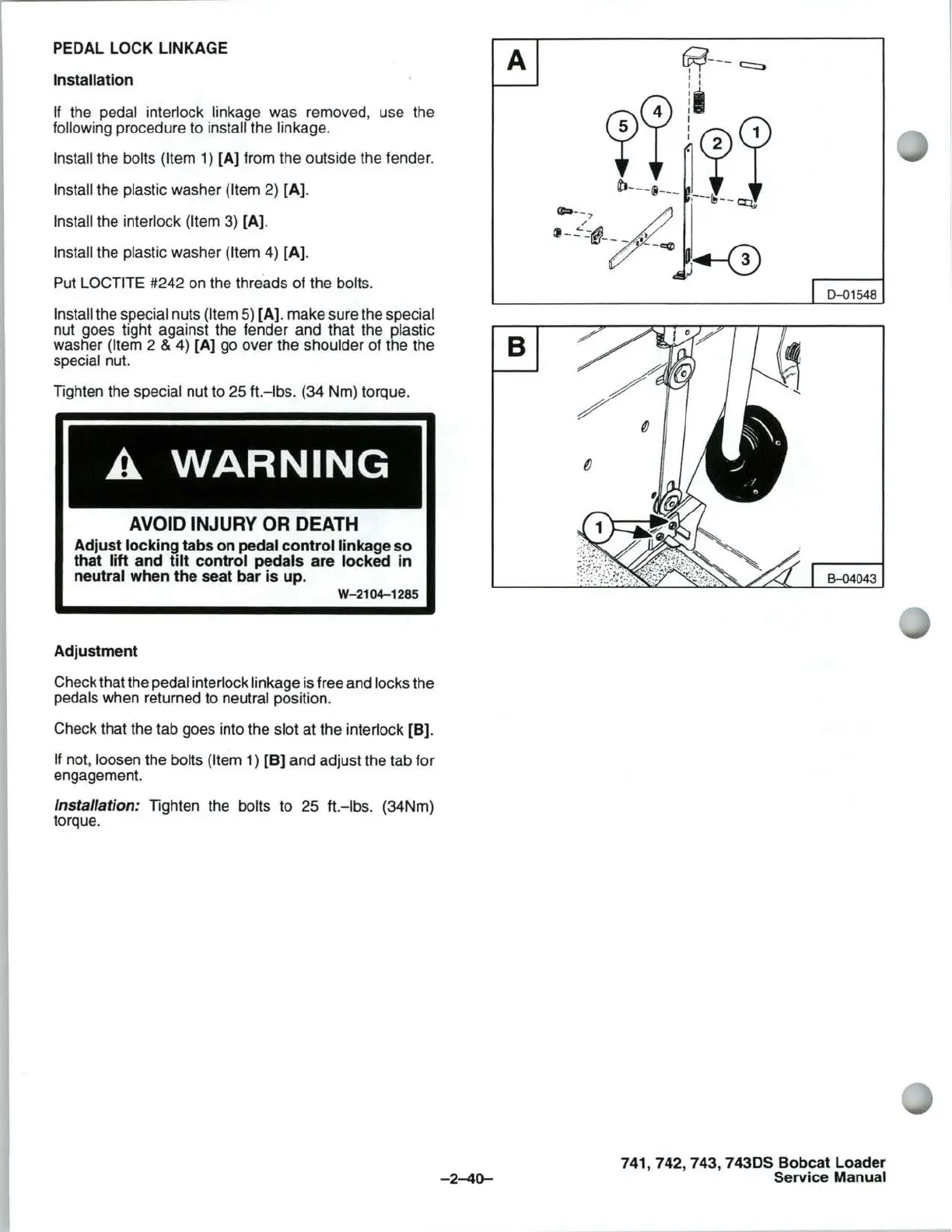

PEDAL LOCK LINKAGE
Installation
If
the pedal interlock linkage was removed, use the
following procedure to install the linkage.
Install
the bolts (Item 1) [A] from the outside the fender.
Install the plastic washer (Item
2)
[A].
Install the interlock (Item
3)
[A).
Install the plastic washer (Item
4)
[A).
Put LOCTITE #242
on
the threads of the bolts.
Install
the special nuts (Item
5)
[A). make sure the special
A
nut goes tight against the fender and that the plastic B
washer (Item 2 & 4) [A]
go
over the shoulder of the the
special nut.
Tighten the
special nut to 25 ft.
-Ibs.
(34 Nm) torque.
A
WARNING
AVOID
INJURY
OR
DEATH
Adjust
locking
tabs on pedal
control
linkage
so
that
lift
and
tilt
control pedals are locked
in
neutral when
the
seat bar
is
up.
W-21
04-1285
Adjustment
Check that the pedal interlock linkage is free and locks the
pedals when returned to neutral position.
Check that the tab goes into the
slot at the interlock
[8).
If not, loosen the bolts (Item
1)
[8]
and adjust the tab for
engagement.
Installation: Tighten the bolts to 25 ft.-Ibs. (34Nm)
torque.
-2-40-
~---~
I I
I I
m>
--,
~
~
-
!::~
/.
-
~;/
'--~
~
..!i
I 0-01548
8-04043
741,742,743,
743DS Bobcat Loader
Service
Manual
