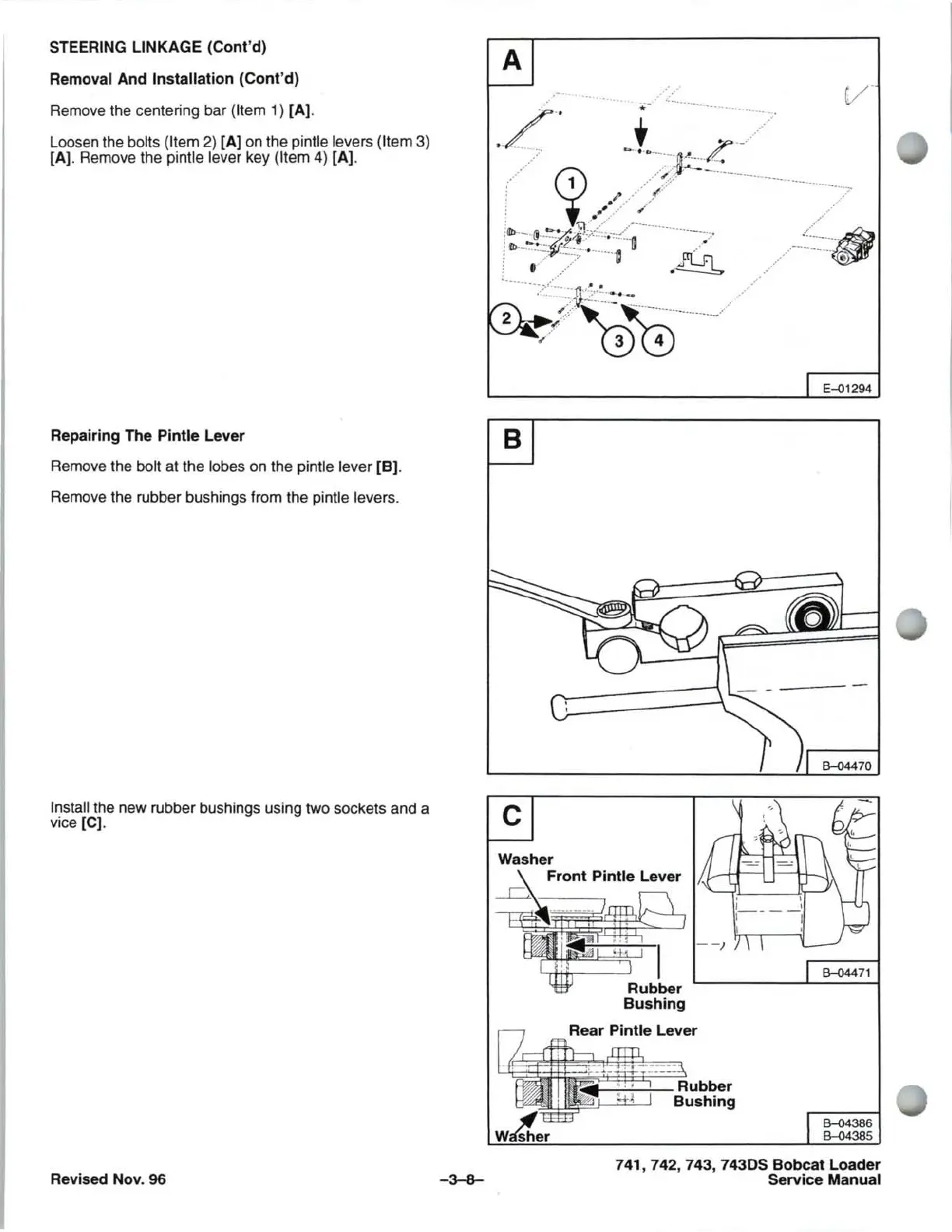

STEERING LINKAGE (Cont'd)
Removal And Installation (Cont'd)
Remove the centering bar (Item 1) [A].
Loosen the
bolts (Item 2) [A] on the pintle levers (Item 3)
[A]. Remove the pintle lever key (Item 4) [A].
Repairing The Pintle Lever
Remove the bolt at the lobes on the pintle lever [B].
Remove the rubber bushings from the pintle levers.
A
8
Install the new rubber bushings using two sockets and a C
vice [C].
E-{)1294
Washer
Revised Nov. 96
-3-8-
Front Pintle Lever
e m 3:=RRubber
Bushing
8-04471
6-04386
6-04385
741,742,743,74305 Bobcat Loader
Service Manual
