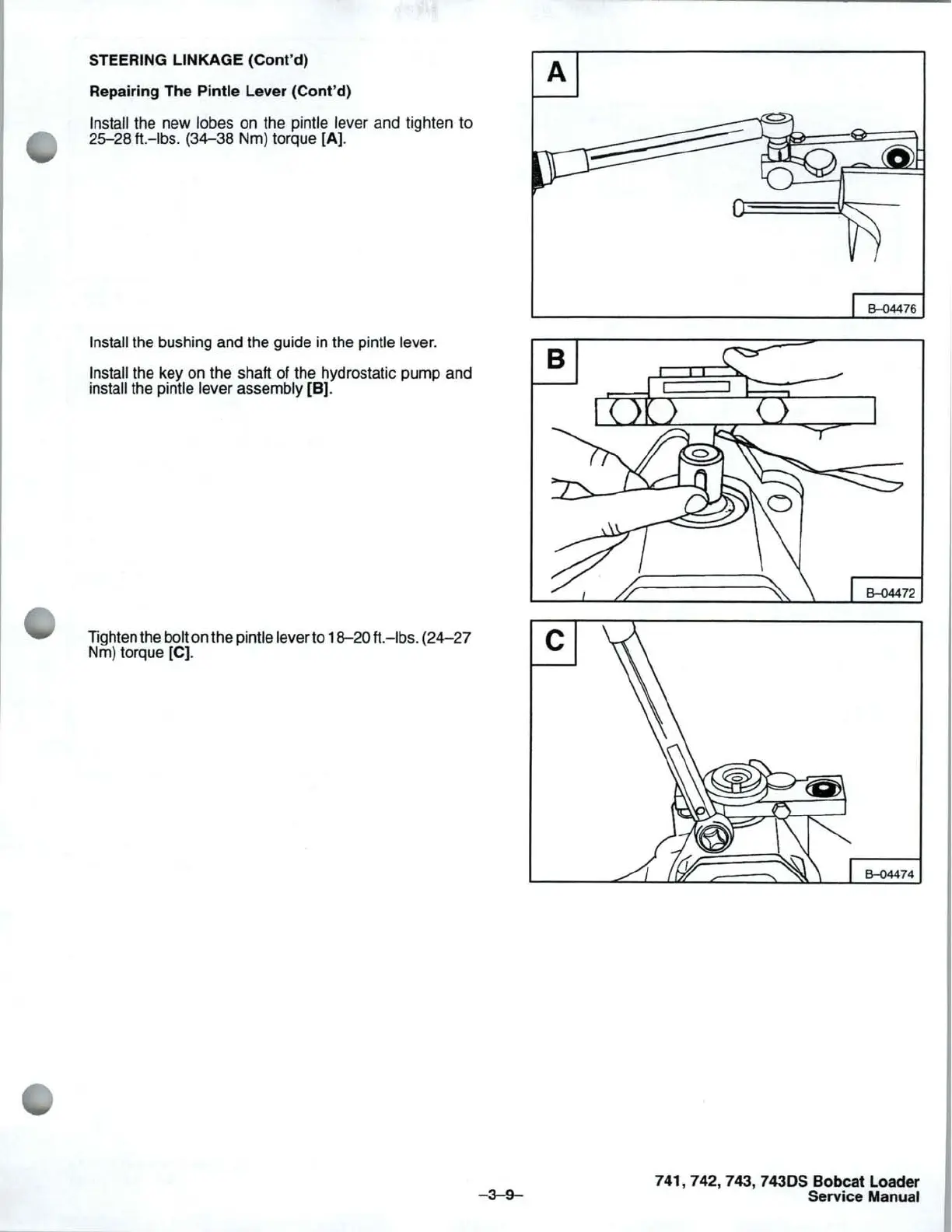

STEERING LINKAGE (Cont'd)
Repairing The Pintle Lever (Cont'd)
Install the new lobes on the pintle lever and tighten to
25-28 ft.-Ibs. (34-38 Nm) torque [A).
Install the bushing and the guide in the pintle lever.
Install
the key on the shaft of the hydrostatic pump and
install the pintle lever assembly [B].
TIghten the bolt on the pintle lever to 18-20 ft.-Ibs. (24-27
Nm) torque [C).
A
-3-9-
6-04476
741, 742, 743, 7430S Bobcat Loader
Service Manual
