HYDROSTATIC MOTOR
Removal
IMPORTANT
When repairing
hydrostatic
and
hydraulic
systems, clean the
work
area before
disassembly and keep
all parts clean.
Always
use caps and
plugs
on hoses, tubelines
and
ports
to
keep
dirt
out.
Dirt
can
quickly
damage
the system.
1-2003-0888

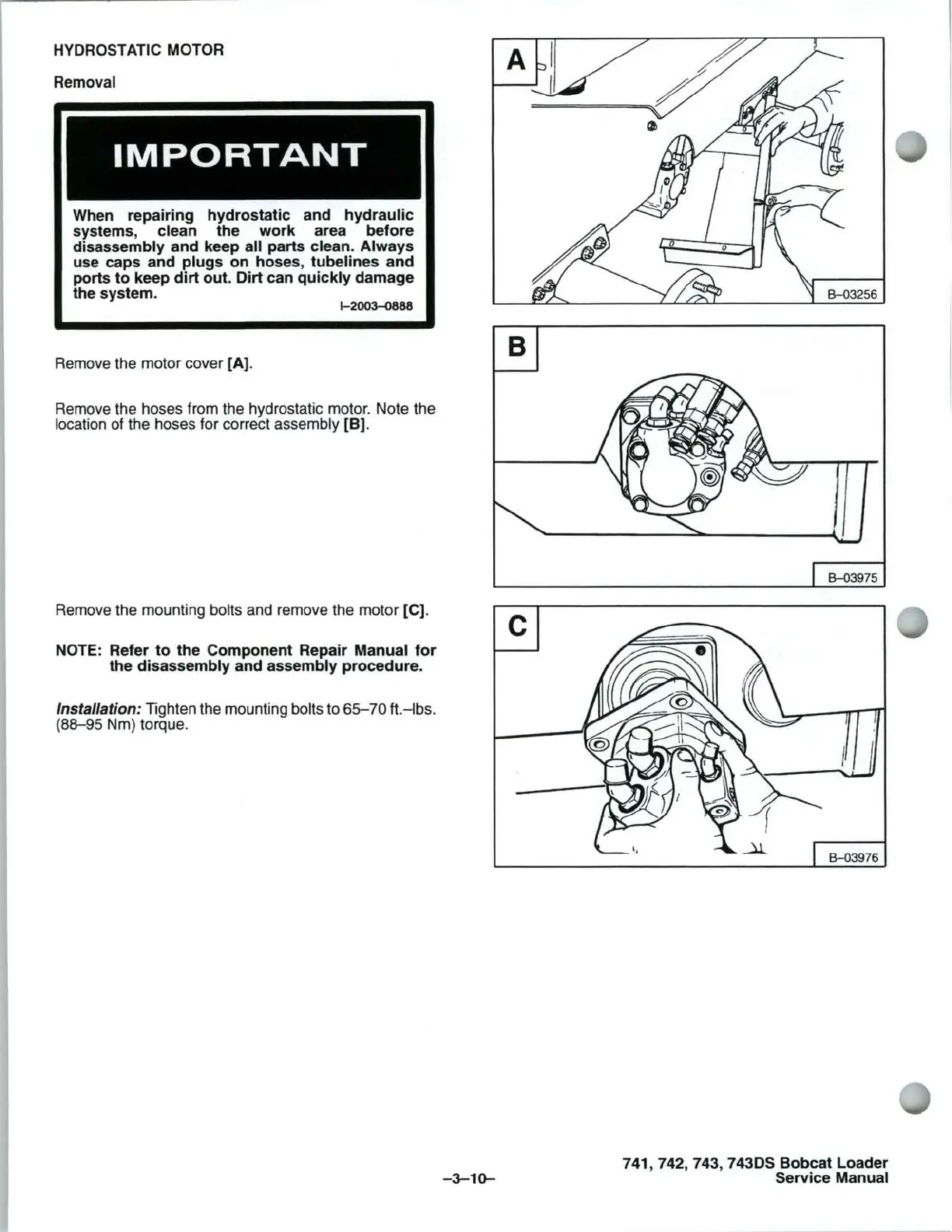

Remove the motor cover [A).
Remove the hoses from the hydrostatic motor. Note the
location of the hoses for correct assembly [B].
Remove the mounting bolts and remove the motor [C).
NOTE: Refer
to
the Component Repair Manual
for
the disassembly
and
assembly procedure.
Installation: Tighten the mounting bolts to
65-70
ft.-Ibs.
(88-95 Nm) torque.
