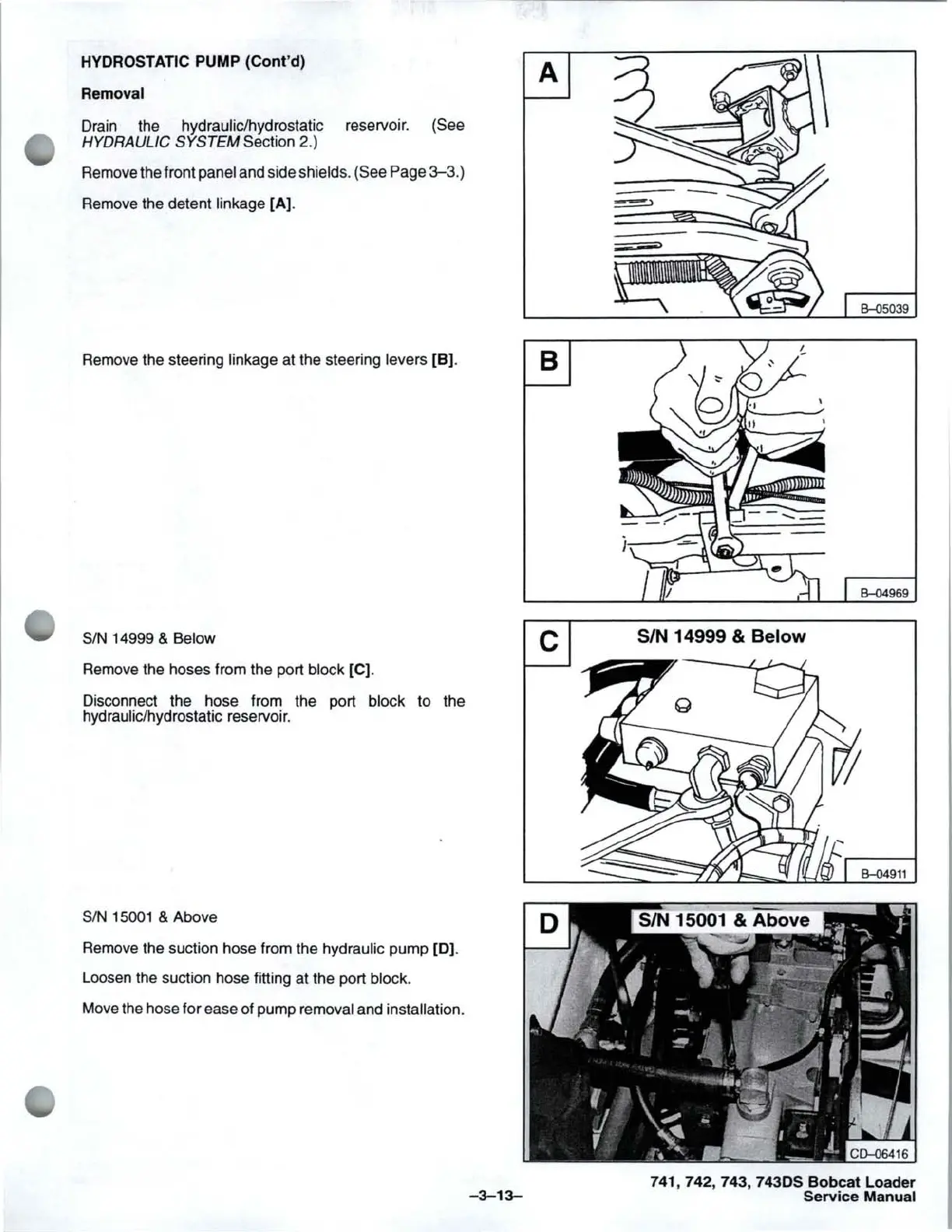

HYDROSTATIC PUMP (Cont'd)
Removal
Drain the hydraulic/hydrostatic reservoir. (See
HYDRAULIC SYSTEM Section 2.)
Remove the front panel and side shields.
(See Page 3-3.)
Remove the detent linkage [A).
Remove the steering linkage at the steering levers (8).
SIN 14999 & Below
Remove the hoses from the port block [C).
Disconnect the hose from the port block to the
hydraulic/hydrostatic reservoir.
SIN 15001 & Above
Remove the suction hose from the hydraulic
pump [0].
Loosen the suction hose fitting at the port block.
Move the hose
for ease of pump removal and installation.
A
B
c
-3-13-
B-D5039
B-04969
SIN 14999 & Below
741 , 742, 743, 743DS Bobcat Loader
Service Manual
