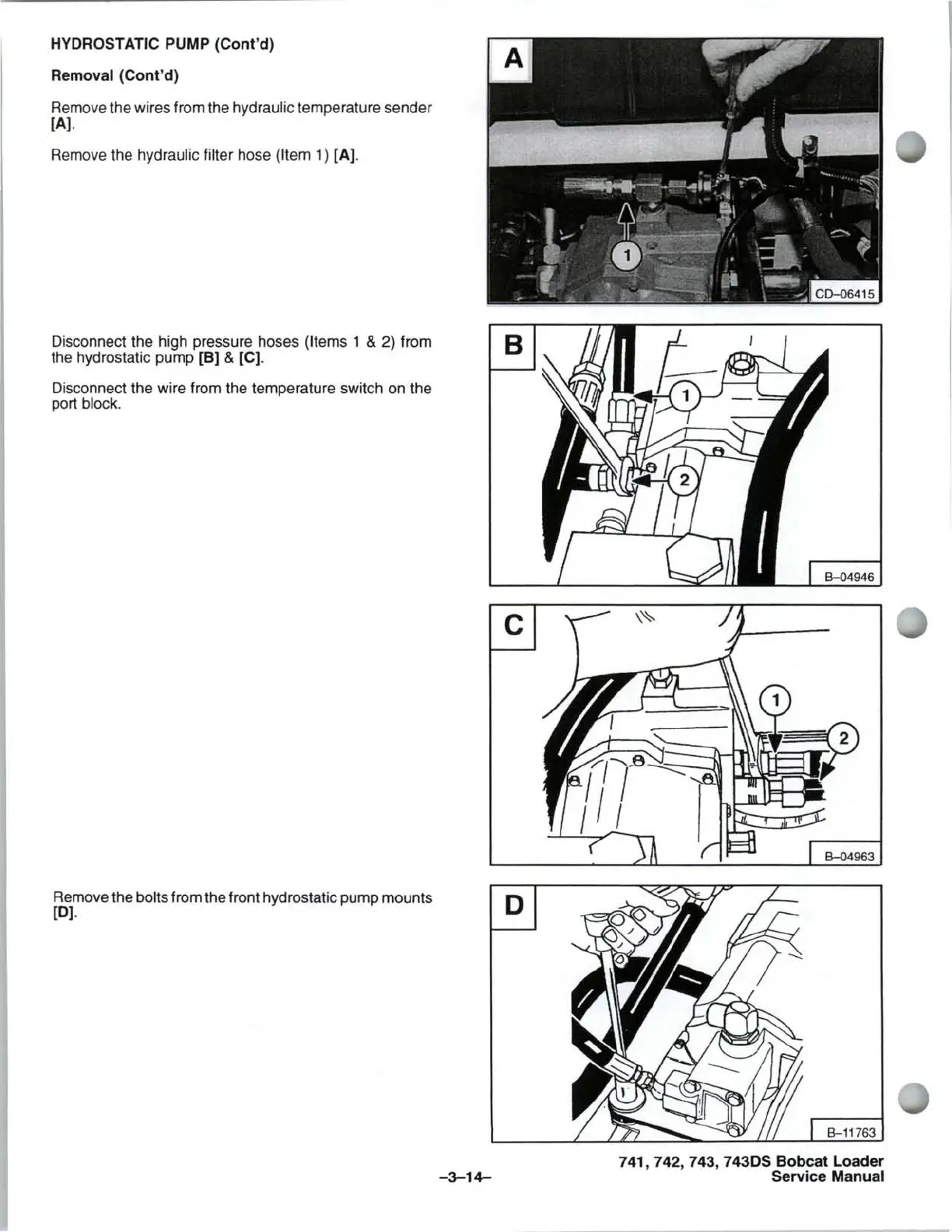

HYDROSTATIC PUMP (Cont'd)
Removal (Cont'd)
Remove the wires from the hydraulic temperature
sender
[A).
Remove the hydraulic filter hose (Item 1) [A].
Disconnect
the
high pressure hoses (Items 1 & 2) from B
the hydrostatic pump [B) & [C).
Disconnect the wire from the temperature switch on the
port block.
c
Remove
the
bolts from the front hydrostatic pump mounts D
[0).
741, 742, 743,
7430S
Bobcat Loader
-3-14-
