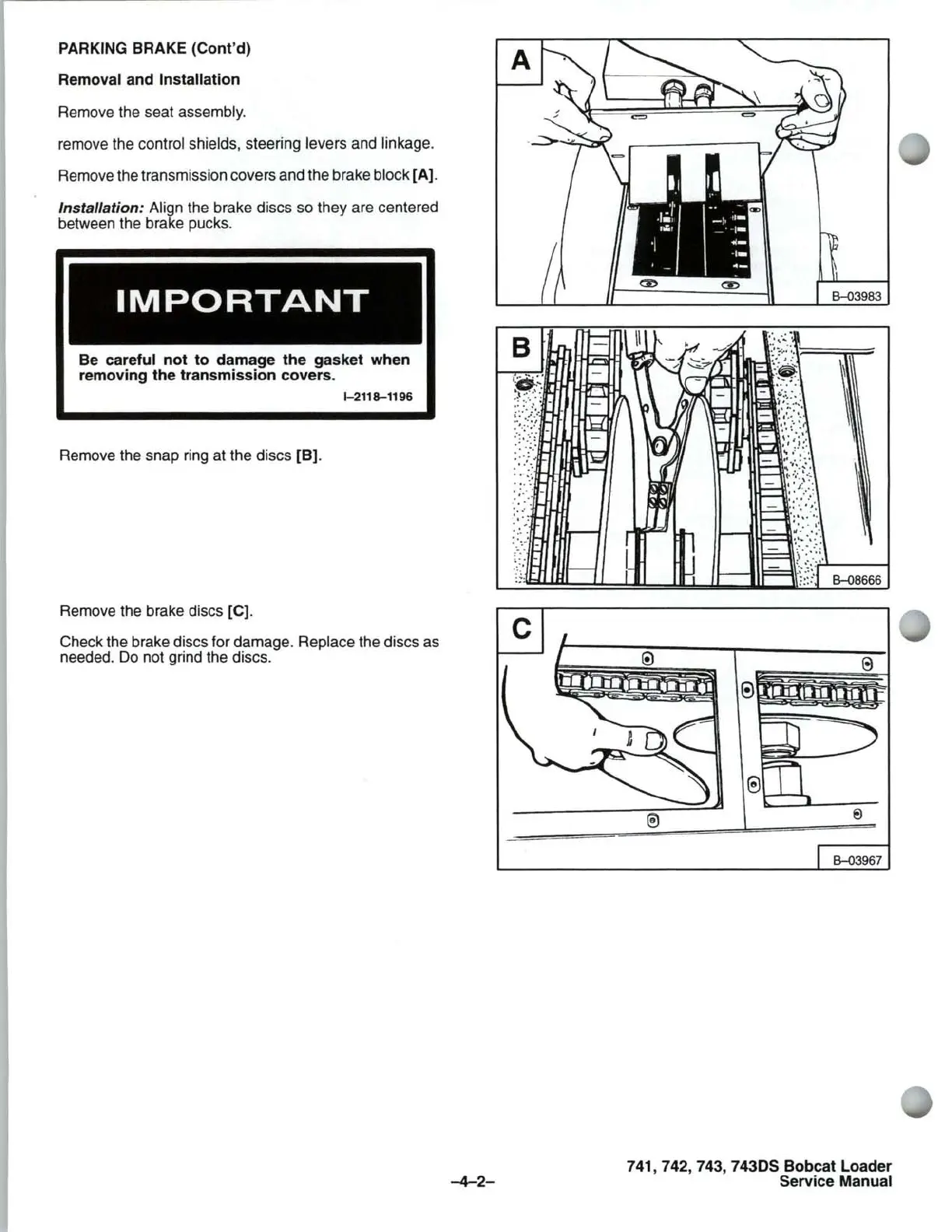

PARKING BRAKE (Cont'd)
Removal and Installation
Remove the seat assembly.
remove the control shields, steering levers and linkage.
Remove the transmission covers and the brake block
[A].
Installation: Align the brake discs so they are centered
between the brake pucks.
IMPORTANT
Be careful not to damage the gasket when
removing the transmission covers.
1-2118-1196
Remove the snap ring at the discs [B].
Remove the brake discs [C].
Check the brake discs for damage. Replace the discs as
needed. Do not grind the discs.
-4-2-
A
8
' cC-
~~, :~.:': i _
" ' .. \
i:'/ ."
., -'0,
,'. ;,, '
; ~ . : :' :'
:. '::
.; :;."
.. '
... ....
,f • • ~
.'
' ..
. ':; " -
.".
c
EH>3967
