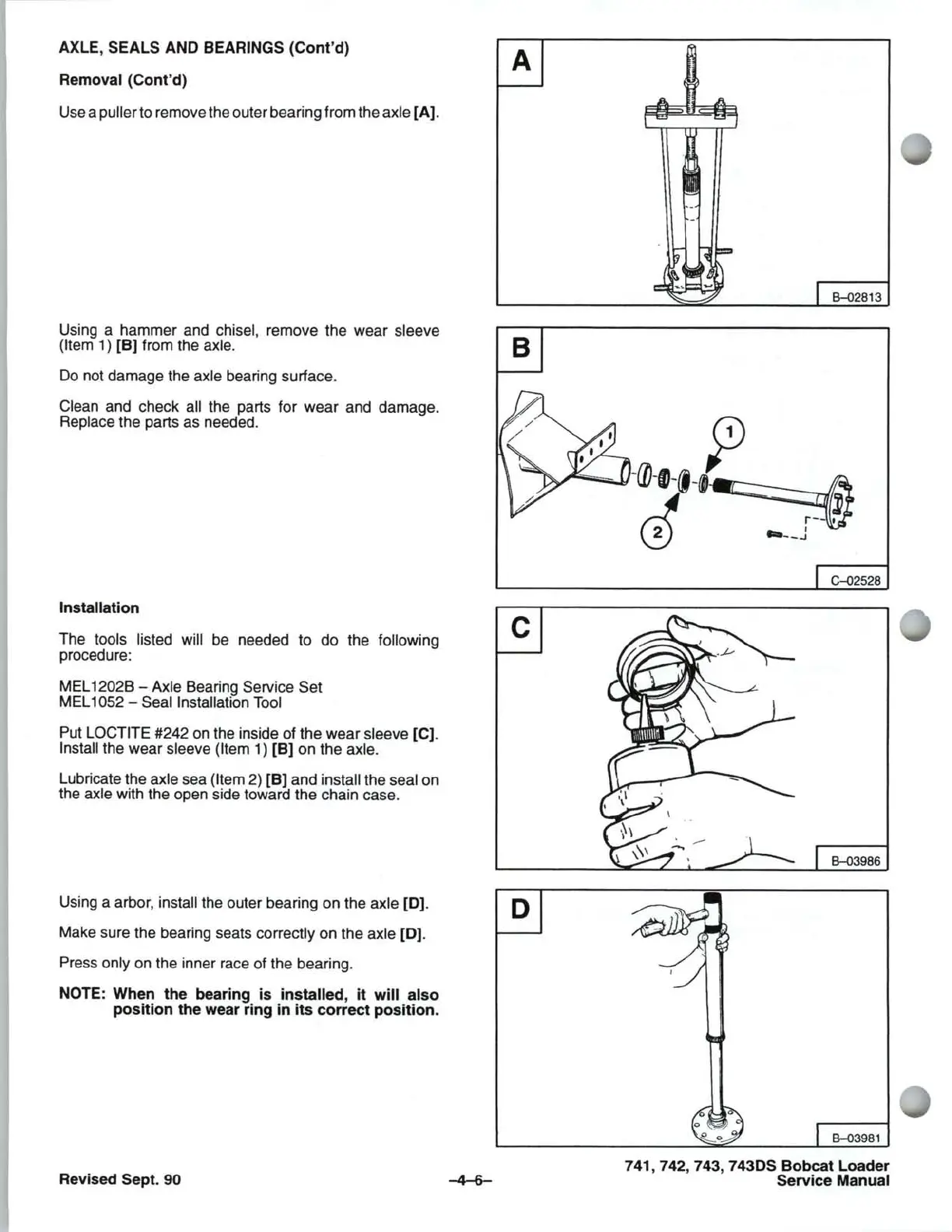

AXLE, SEALS AND BEARINGS (Cont'd)
Removal (Cont'd)
Use a puller to remove the outer bearing from the axle [AJ .
A
Using a hammer and chisel, remove the wear sleeve
(Item
1) [B) from the axle. 8
Do not damage the axle bearing surface.
Clean and check all the parts for wear and damage.
Replace the parts as needed.
Installation
The tools listed will be needed to do the following
procedure:
MEL
1202B - Axle Bearing Service Set
MEL
1052 - Seal Installation Tool
Put LOCTITE #242 on the inside of the wear sleeve [C).
Install the wear sleeve (Item 1) [B) on the axle.
Lubricate the axle sea (Item 2) [B) and install the seal on
the
axle with the open side toward the chain case.
Using a arbor,
install the outer bearing on the axle (0).
Make sure the bearing seats correctly on the axle (0).
Press only on the inner race of the bearing.
NOTE: When the bearing is installed, it will also
position the wear ring in its correct position.
Revised Sept. 90
c
D
EHl2813
C-02528
EHl3986
EHl3981
741,742,743,74305 Bobcat Loader
Service Manual
