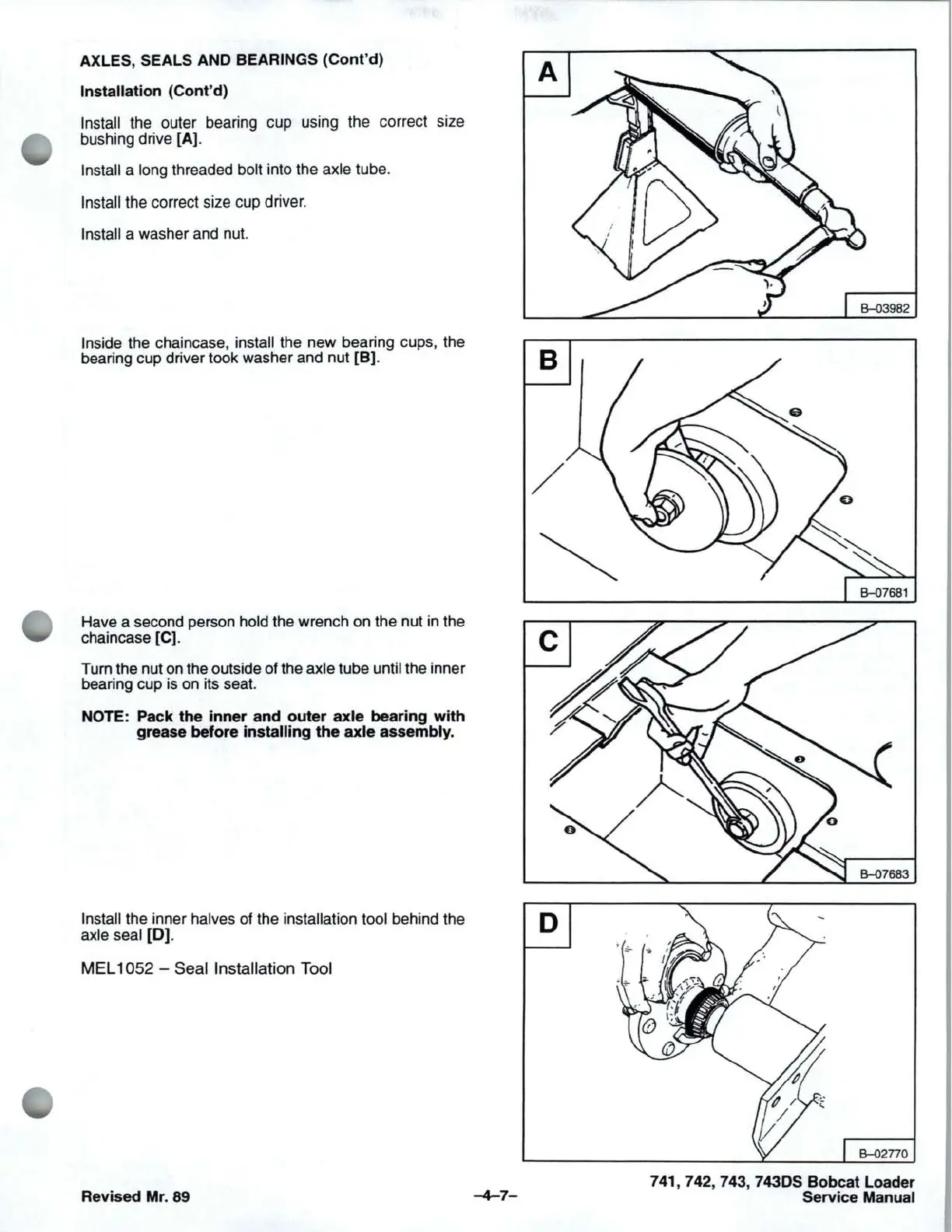

AXLES, SEALS AND BEARINGS (Cont'd)
Installation (Cont'd)
Install the outer bearing cup using the correct size
bushing drive
[A].
Install a long threaded bolt into the axle tube.
Install the correct size cup driver.
Install a washer and nut.
A
Inside the chaincase, install the new bearing cups, the
bearing cup driver took washer and nut [B].
B
Have a second person hold the wrench on the nut
in
the
chaincase
[C].
Turn the nut on the outside of the axle tube until the inner
bearing cup
is
on its seat.
NOTE: Pack the inner and outer axle bearing with
grease before installing the axle assembly.
/
Install the inner halves of the installation tool behind the D
axle seal [0].
MEL 1052 - Seal Installation Tool
Revised Mr. 89
-4-7-
8-02770
741, 742, 743,
7430S
Bobcat Loader
Service Manual
