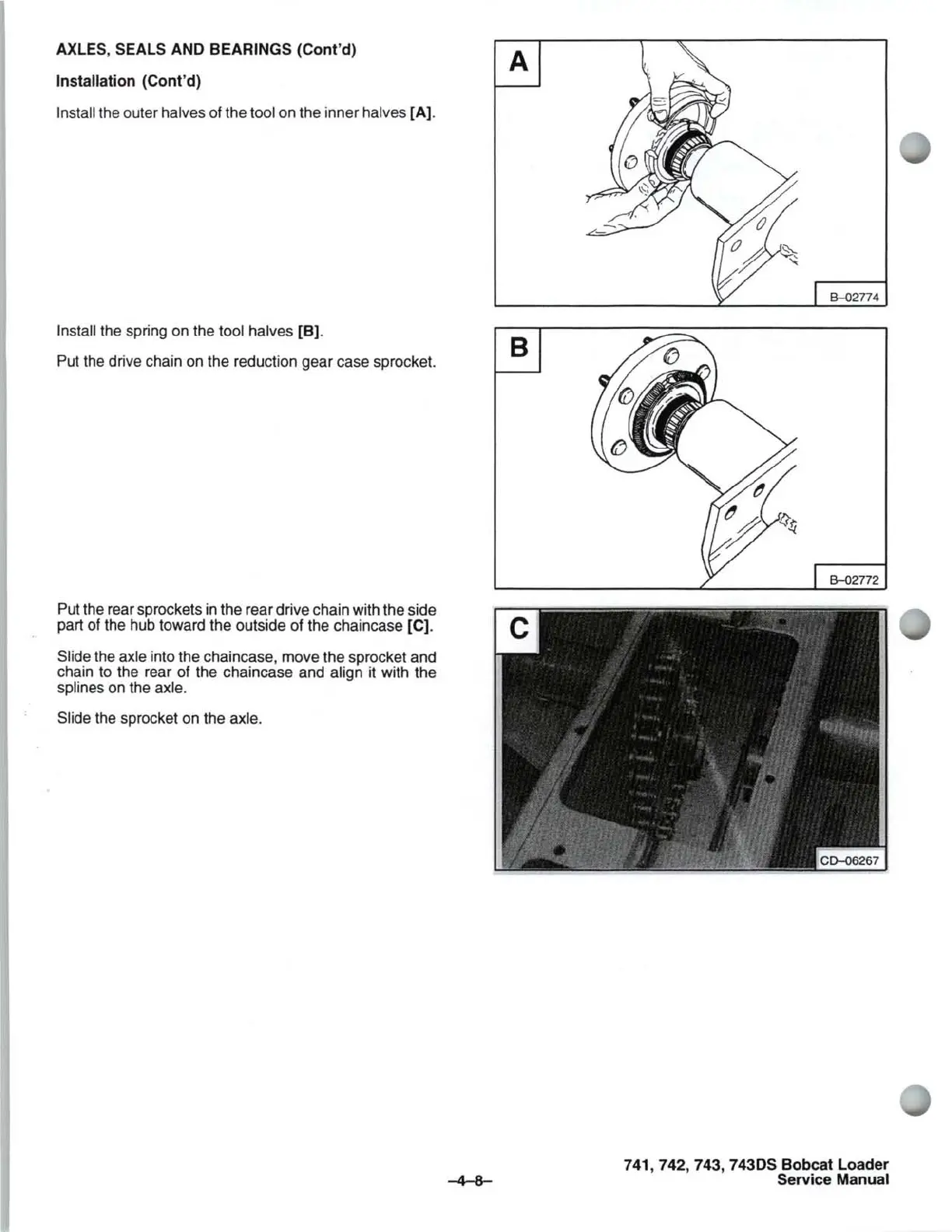

AXLES, SEALS AND BEARINGS (Cont'd)
Installation (Cont'd)
Install the outer halves of the tool on the inner halves [A).
Install the spring on the tool halves [B).
Put the drive chain on the reduction gear case sprocket.
Put the rear sprockets in the rear drive chain with the side
part of the hub toward the outside of the chaincase
[C).
Slide the axle into the chaincase, move the sprocket and
chain to the rear of the chaincase and
align it with the
splines on the axle.
Slide
the sprocket on the axle.
A
B-02774
741,742,743,
743DS Bobcat Loader
Service
Manual
