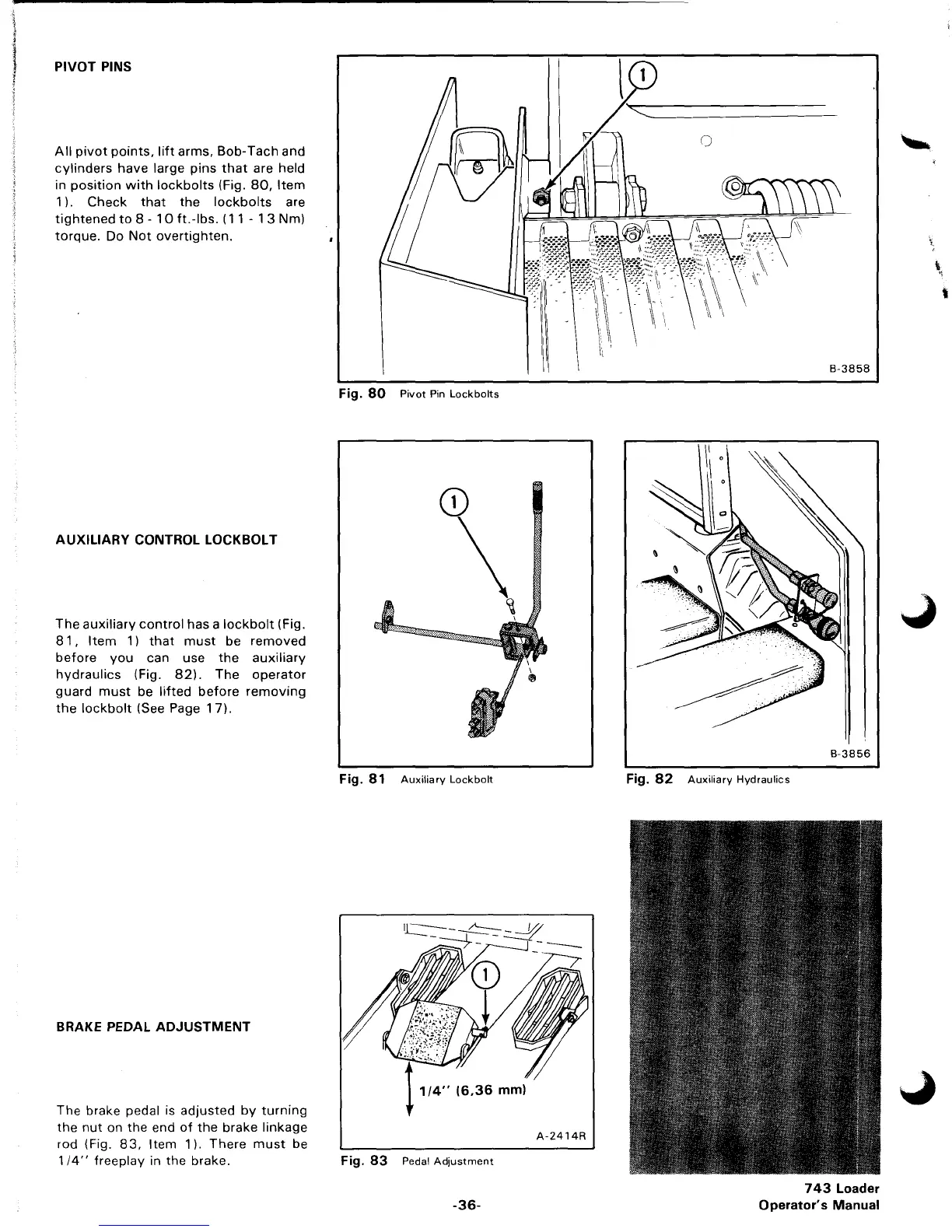

PIVOT PINS
All
pivot
points,
lift
arms,
Bob-
Tach
and
cylinders
have
large
pins
that
are held
in
position
with
lockbolts
(Fig.
80,
Item
1).
Check
that
the
lockbolts
are
tightened
to
8 -
10
ft.-Ibs.
(11 -
13
Nm)
torque.
Do
Not
overtighten.
AUXILIARY CONTROL LOCKBOL T
The
auxiliary
control
has a
lockbolt
(Fig.
81,
Item
1)
that
must
be
removed
before
you
can use
the
auxiliary
hydraulics
(Fig.
82).
The
operator
guard
must
be
lifted
before
removing
the
lockbolt
(See Page
17).
BRAKE PEDAL
ADJUSTMENT
The
brake pedal is
adjusted
by
turning
the
nut
on
the
end
of
the
brake
linkage
rod (Fig.
83,
Item
1).
There
must
be
1/4"
freeplay
in
the
brake.
Fig.
80
Pivot
Pin
Lockbolts
Fig. 81
Auxiliary
Lockbolt
Fig.
83
Pedal
Adjustment
-36-
A-2414R
B-3856
Fig.
82
Auxiliary
Hydraulics
743
Loader
Operator's
Manual
