Bobcat s250 - Instrument Panel Identification (Continued); Right Instrument Panel (Standard)

S250 Bobcat Loader
OI-6 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)
Right Panel (Standard - With Key Switch)

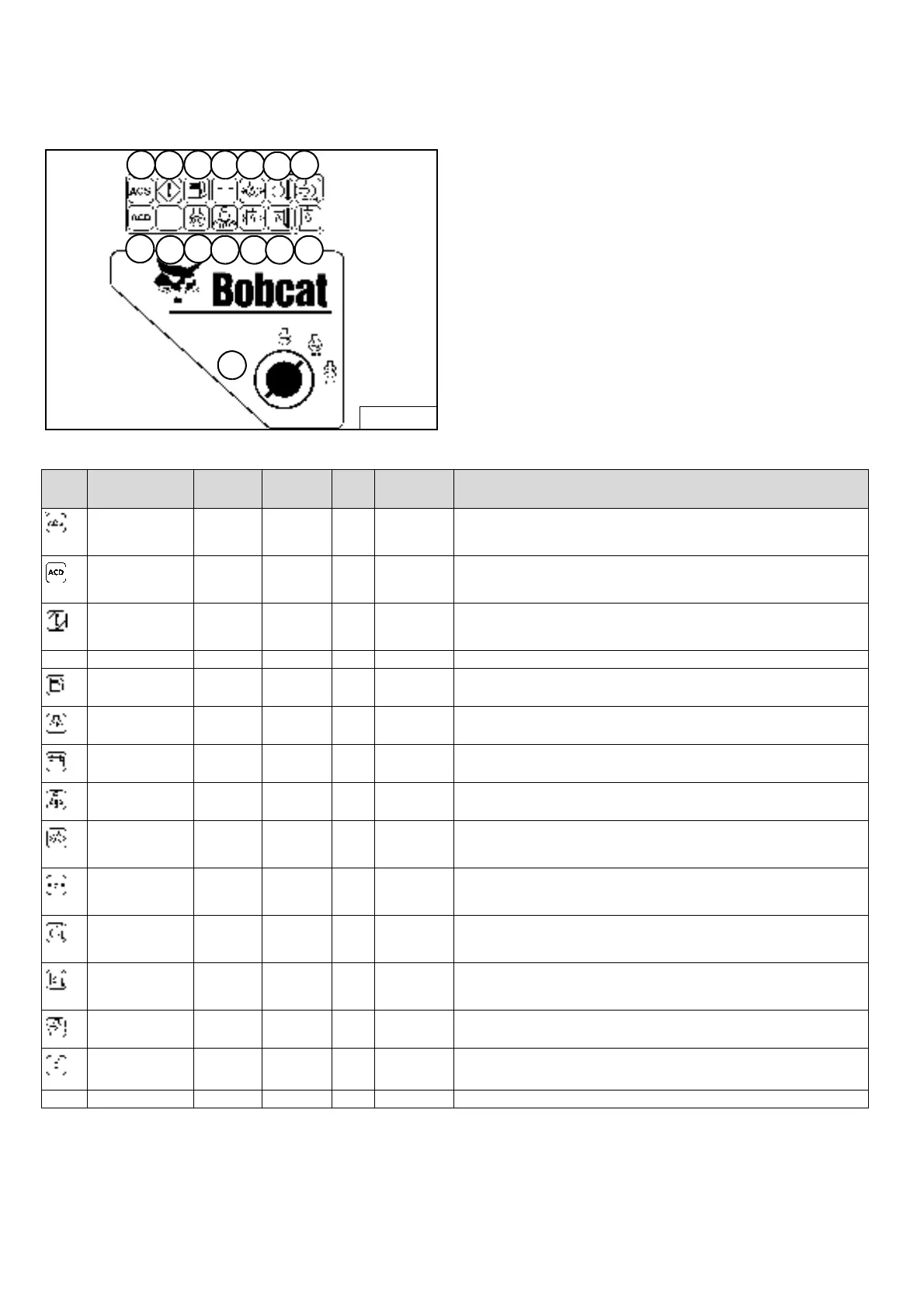

Figure OI-2
The right instrument panel shown [Figure OI-2] is the
Standard Panel.
The table below shows the Icons and other components
of the Right Standard Panel.
B-15552B
15 17 19 21 23
25
27
16
18
20
22 24 26 28
29
* See SYSTEM SETUP & ANALYSIS, Page SA-4 for further description of SERVICE CODES.
REF. FUNCTION
ICON/
LIGHT
ALARM CODE CONDITION DESCRIPTION
15
Advanced Control
System (ACS)
(Opt.)
ON 3 Beeps * Error Error with Advanced Control System (ACS).
16
Attachment Control
Device (ACD)
(Opt.)
ON
FLASHING
---
3 Beeps
---
*
---
Error
Electrical controlled attachment is present.
Error with Attachment Control Device (ACD).
17
General
Warning
ON
ON
FLASHING
3 Beeps
3 Beeps
Continuous
*
*
*
Error
WARNING
SHUTDOWN
Error with one or more engine or hydraulic functions.
Engine speed high or in shutdown.
Engine speed very high. Engine will stop in 10 seconds.
18 NOT USED
19
Fuel
Level
ON
FLASHING
3 Beeps
3 Beeps
*
*
Error
WARNING
Fuel level sender system fault.
Fuel level low.
20
Glow
Plugs
ON
FLAHSING
---
3 Beeps
---
*
---
Error
Air Intake Heater energized.
Error with Air Intake Heater
21
System Voltage ON 3 Beeps * WARNING Voltage low, high or very high.
22
Seat Belt ON --- --- --- Light stays on for 45 seconds to remind operator to fasten seat belt.
23
Engine
Oil Pressure
ON
ON
FLASHING
3 Beeps
3 Beeps
Continuous
*
*
*
Error
WARNING
SHUTDOWN
Engine Oil Pressure sender out of range.
Engine oil level low.
Engine oil pressure very low. Engine will shutdown in 10 seconds.
24
Hydrostatic
Charge
Pressure
ON
ON
FLASHING
3 Beeps
3 Beeps
Continuous
*
*
*
Error
WARNING
SHUTDOWN
Hydraulic oil pressure sender out of range.
Hydraulic oil pressure low.
Hydraulic charge pressure very low. Engine will stop in 10 seconds.
25
Engine
Coolant
Temperature
ON
ON
FLASHING
3 Beeps
3 Beeps
Continuous
*
*
*
Error
WARNING
SHUTDOWN
Engine coolant sender out of range
Engine coolant temperature high.
Engine coolant temperature very high. Engine will stop in 10 seconds.
26
Hydraulic
Oil
Temperature
ON
ON
FLASHING
3 Beeps
3 Beeps
Continuous
*
*
*
Error
WARNING
SHUTDOWN
Hydraulic oil temperature out of range.
Hydraulic oil temperature high.
Hydraulic oil temperature very high. Engine will stop in 10 seconds.
27
Engine
Air Filter
ON
FLASHING
3 Beeps
3 Beeps
*
*
Error
WARNING
Air filter with high restriction.
Air filter switch not connected.
28
Hydraulic
Filter
ON
FLASHING
3 Beeps
3 Beeps
*
*
Error
WARNING
Hydraulic filter with high restriction.
Hydraulic filter switch not connected.
29 Key Switch --- --- ---- --- Used to start and stop the engine.
