S250 Bobcat Loader
OI-14 Operation & Maintenance Manual

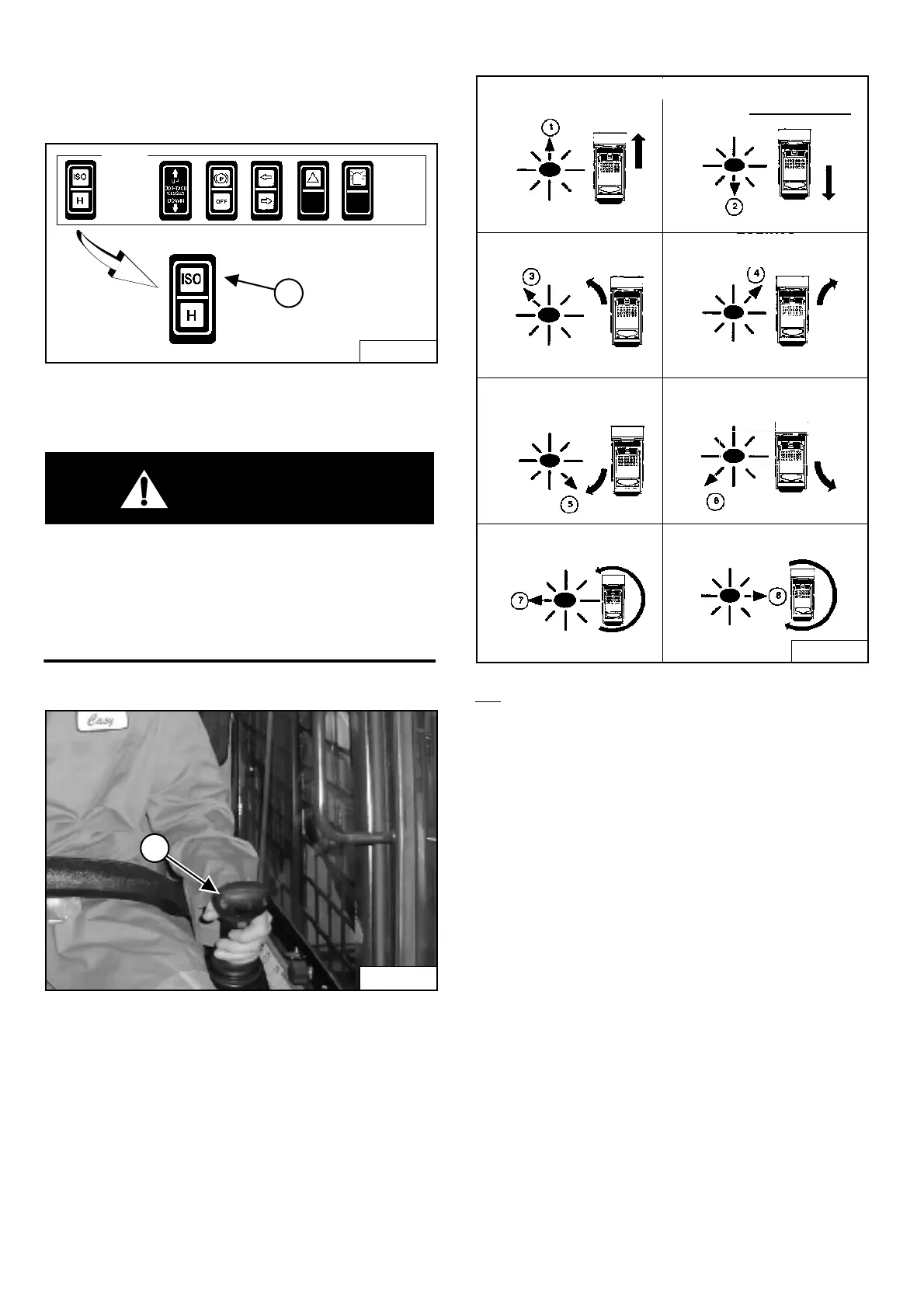

DRIVING AND STEERING THE LOADER (CONT’D)
Operation (SJC in ‘ISO’ Control Pattern)
Figure OI-19
Select the ‘ISO’ control pattern by pressing the top of the
switch (Item 1) [Figure OI-19].
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure OI-20
The joystick which controls drive and steering is on the
left side in front of the seat (Item 1) [Figure OI-20].
Figure OI-21
Left
Joystick Functions (Drive and Steering)
[Figure OI-21].
Move the joystick smoothly. Avoid sudden starting and
stopping.
1. Forward Travel - Move joystick forward.
2. Backward Travel - Move joystick backward.
3. Forward Left Turn - Move joystick forward and to the
left.
4. Forward Right Turn - Move joystick forward and to
the right.
5. Backward Left Turn - Move joystick backward and to
the right.
6. Backward Right Turn - Move joystick backward and
to the left.
7. Left Fast Turn - Move joystick to the left.
8. Right Fast Turn - Move joystick to the right.
B-15993B
1
P-45116
1
B-21970
N
LEFT JOYSTICK
N
N
N
N
N
N
N
SJC in ‘ISO’
Control Pattern
FORWARD
LEFT TURN
FORWARD
RIGHT TURN
BACKWARD
RIGHT TURN
BACKWARD
LEFT TURN
RIGHT FAST TURNLEFT FAST TURN
