S250 Bobcat Loader
OI-13 Operation & Maintenance Manual
DRIVING AND STEERING THE LOADER (CONT’D)

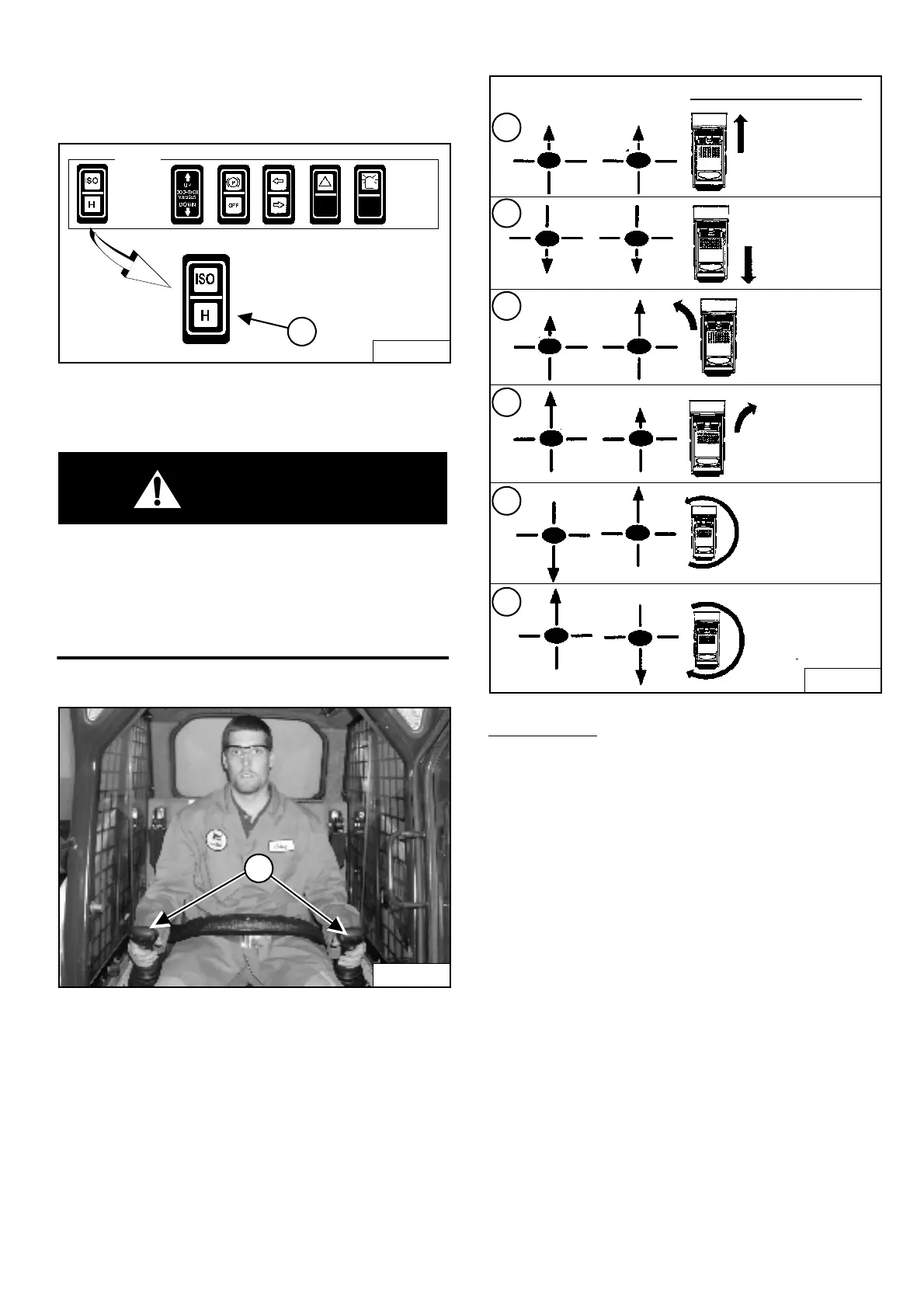

Operation (SJC in ‘H’ Control Pattern)
Figure OI-16
Select the ‘H’ control pattern by pressing the bottom of
the switch (Item 1) [Figure OI-16].
WARNING
AVOID INJURY OR DEATH
When operating the machine:
• Keep the seat belt fastened snugly.
• The seat bar must be lowered.
• Keep your feet on the foot rests and hands on
control levers.
W-2399-0501
Figure OI-17
Both joysticks control drive and steering and are located
on the right and left side in front of the seat (Item 1)
[Figure OI-17].
Figure OI-18
Hand Control
Functions (Drive and Steering)
[Figure OI-18].
1. Forward Travel - Move both joysticks forward.
2. Backward Travel - Move both joysticks backward.
3. Forward Left Turn - Move the right joystick farther
forward than the left joystick.
4. Forward Right Turn - Move the left joystick farther
forward than the right joystick.
5. Left Fast Turn - Move the left joystick backward and
the right joystick forward.
6. Right Fast Turn - Move the left joystick forward and
the right joystick backward.
B-15993B
1
P-45116
1
B-22029
1
2
3
4
5
6
N
N
NN
N
N
N
N
N
N
N
N
Left
Joystick
Right
Joystick
SJC in’H’ Control Pattern
BACKWARD
FORWARD
RIGHT
TURN
LEFT
TURN
RIGHT
FAST
TURN
LEFT
FAST
TURN
