Bobcat s250 - Hydraulic Controls

S250 Bobcat Loader
OI-16 Operation & Maintenance Manual
HYDRAULIC CONTROLS
Operation
Two foot pedals (or optional hand controls) control the
hydraulic cylinders for the lift and tilt functions.
Put your feet on the pedals (or footrests) and KEEP
THEM THERE any time you operate the loader.

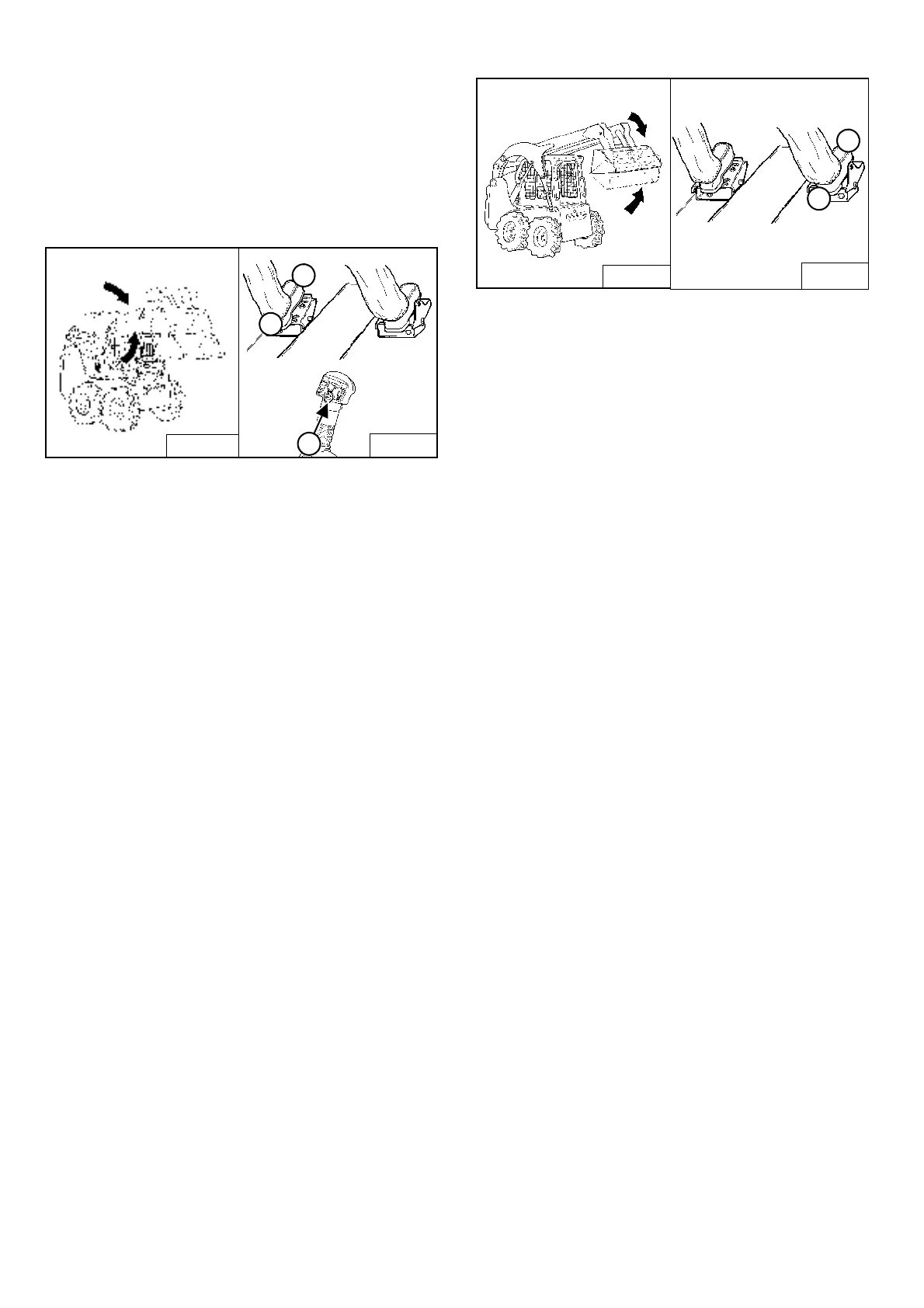

Figure OI-23
Standard Controls (Also ACS in Foot Pedal Mode)
Lift Arm Operation - (Left Pedal)
Push the heel (Item 1) [Figure OI-23] of the pedal to
raise the lift arms.
Push the toe (Item 2) [Figure OI-23] of the pedal to
lower the lift arms.
Lift Arm Float Position - (Left Pedal)
Push the toe (Item 2) [Figure OI-23] of the pedal all
the way forward until it locks into the float position.
Use the float position of the lift arms to level loose
material while driving backward.
Raise the lift arms to disengage the float position.
Lift Arm Float Position (With ACS) - (Left Pedal)
Press and hold the Float button (Item 3)
[Figure OI-23].
Push the toe (Item 2) [Figure OI-23] of the pedal
forward to lower the lift arms. Then release the float
button.
Use the float position of the lift arms to level loose
material while driving backward.
Raise the lift arms to disengage the float position.
Figure OI-24
Tilt Operation - (Right Pedal)
Push the heel (Item 1) [Figure OI-24] of the pedal to
tilt the bucket backward.
Push the toe (Item 2) [Figure OI-24] of the pedal to tilt
the bucket forward.
B-16247
3
B-15781
1
2
B-16246
B-15973
1
2
