Bobcat s250 - Hydraulic Controls (Continued); Selectable Joystick Control (SJC) Operation

S250 Bobcat Loader
OI-18 Operation & Maintenance Manual
HYDRAULIC CONTROLS (CONT’D)
Selectable Joystick Control (SJC) - ‘H’ Control
Pattern

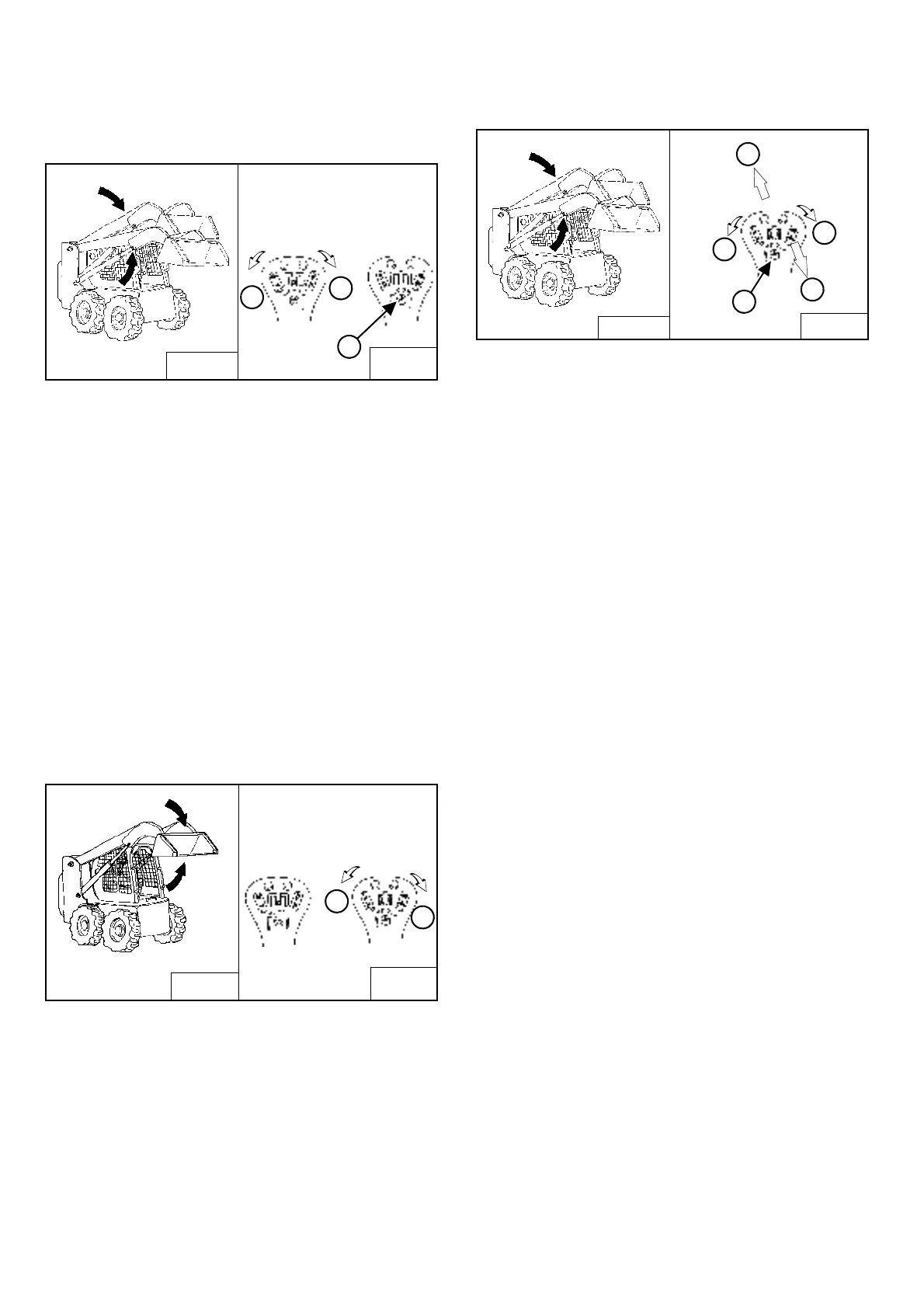

Figure OI-27
Lift Arm Operation - (Left Hand Joystick)
Move the joystick outward (Item 1) [Figure OI-27] to
raise the lift arms.
Move the joystick inward (Item 2) [Figure OI-27] to
lower the lift arms.
Lift Arm Float Position - (Left & Right Hand Joysticks)
Press and hold the Float Button (Item 3)
[Figure OI-27] while the joysticks are in neutral. Move
the left joystick to lift arm down position (Item 2)
[Figure OI-27], then release the button.
Press Float Button again or move the left joystick to lift
arm up position (Item 3) [Figure OI-27] to disengage.
Use the float position of the lift arms to level loose
material while driving backward.
Figure OI-28
Tilt Operation - (Right Hand Joystick)
Move the joystick inward (Item 1) [Figure OI-28] to tilt
the bucket backward.
Move the joystick outward (Item 2) [Figure OI-28] to
tilt the bucket forward.
Selectable Joystick Control (SJC) - ‘ISO’ Control
Pattern
Figure OI-29
Lift Arm Operation - (Right Hand Joystick)
Move the joystick backward (Item 1) [Figure OI-29] to
raise the lift arms.
Move the joystick forward (Item 2) [Figure OI-29] to
lower the lift arms.
Lift Arm Float Position - (Right Hand Joystick)
Press and hold the Float Button (Item 3)
[Figure OI-29] while the joystick is in neutral. Move
the joystick to lift arm down position (Item 2)
[Figure OI-29], then release the button.
Press Float Button again or move the joystick to lift
arm up position (Item 2) [Figure OI-29] to disengage.
Use the float position of the lift arms to level loose
material while driving backward.
Tilt Operation - (Right Hand Joystick)
Move the joystick inward (Item 4) [Figure OI-29] to tilt
the bucket backward.
Move the joystick outward (Item 5) [Figure OI-29] to
tilt the bucket forward.
B-15579
B-19873
B-19874
1
2
3
Right
Joystick
Left
Joystick
B-15581A
B-19873
B-19874
2
1
Left
Joystick
Right
Joystick
B-15579
B-15781
5
4
3
2
1
Right Joystick
