S250 Bobcat Loader
OI-45 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)
Selectable Joystick Control (SJC) with ‘ISO’ Pattern
Selected
Filling The Bucket:

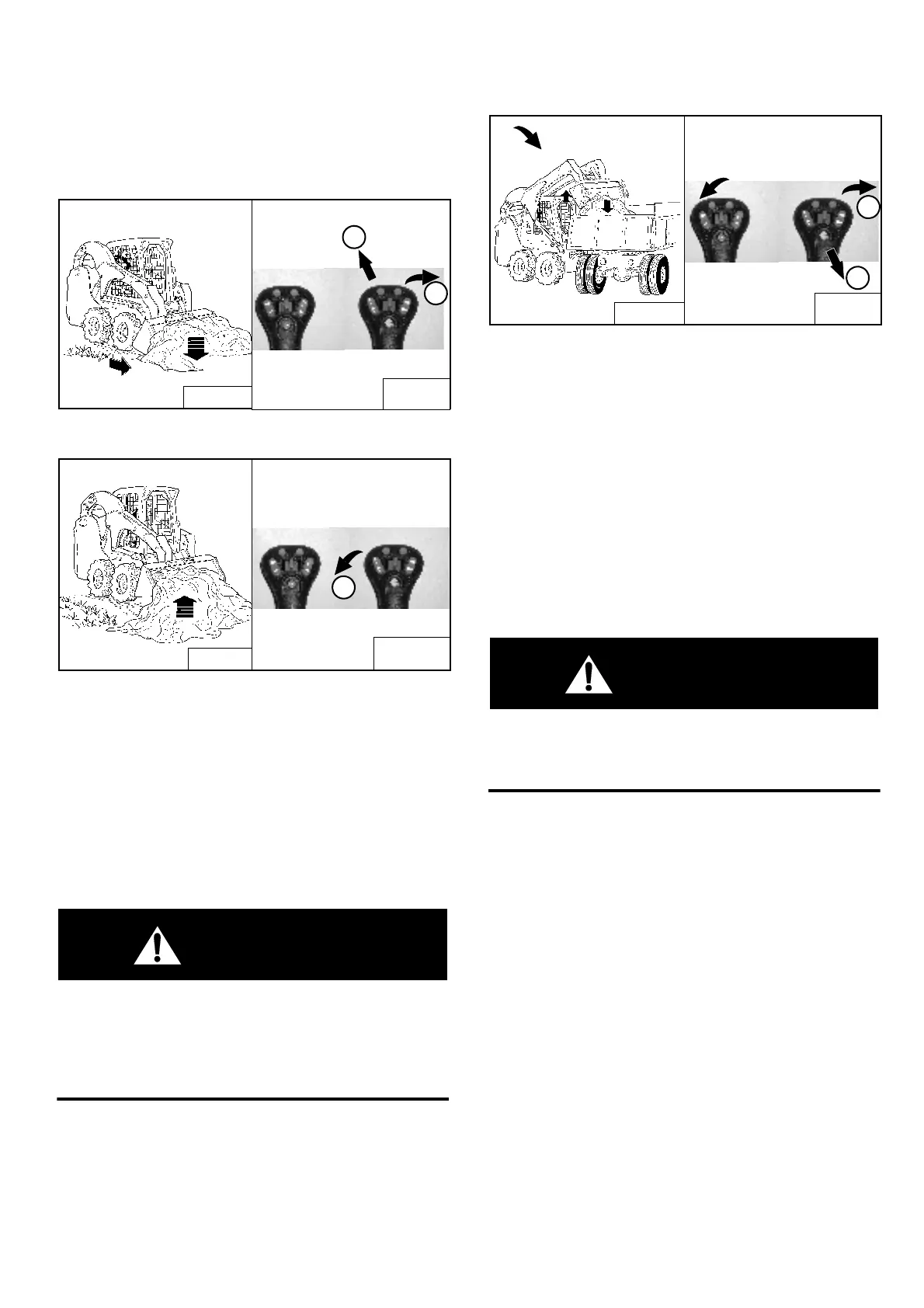

Figure OI-90
Figure OI-91
Lower the lift arms all the way (Item 1) [Figure OI-90].
Tilt the bucket forward (Item 2) [Figure OI-90] until the
cutting edge of the bucket is on the ground.
Drive slowly forward into the material. Tilt the bucket
backward (Item 1) [Figure OI-91] all the way when the
bucket is full.
Drive backward away from the material.
WARNING
Load, unload and turn on flat level ground. Do not
exceed Rated Operating Capacity (ROC) shown on
sign (decal) in cab. Failure to obey warnings can
cause the machine to tip or roll over and cause injury
or death.
W-2056-0903
Emptying The Bucket:
Figure OI-92
Keep the bucket low when moving to the area where you
want to empty the bucket.
Raise the lift arms (Item 1) [Figure OI-92]. Level the
bucket (Item 2) [Figure OI-92] while raising the lift arms
to help prevent material from falling off the back of the
bucket.
Drive forward slowly until the bucket is over the top of the
truck box or bin.
Empty the bucket (Item 2) [Figure OI-92]. If all material is
near the side of the truck or bin, use the bucket tilt to
move it to the other side.
WARNING
Never dump over an obstruction, such as a post, that
can enter the operator cab. The machine could tip
forward and cause injury or death.
W-2057-0694
B-16267
P-24820
P-24802
1
2
B-16273
1
P-24820
P-24802
B-16259
1
2
P-24820
P-24802
To Next Page
