Bobcat s250 - Operator Cab (Continued); Emergency Exit Procedures

S250 Bobcat Loader
PM-10 Operation & Maintenance Manual
OPERATOR CAB (CONT’D)

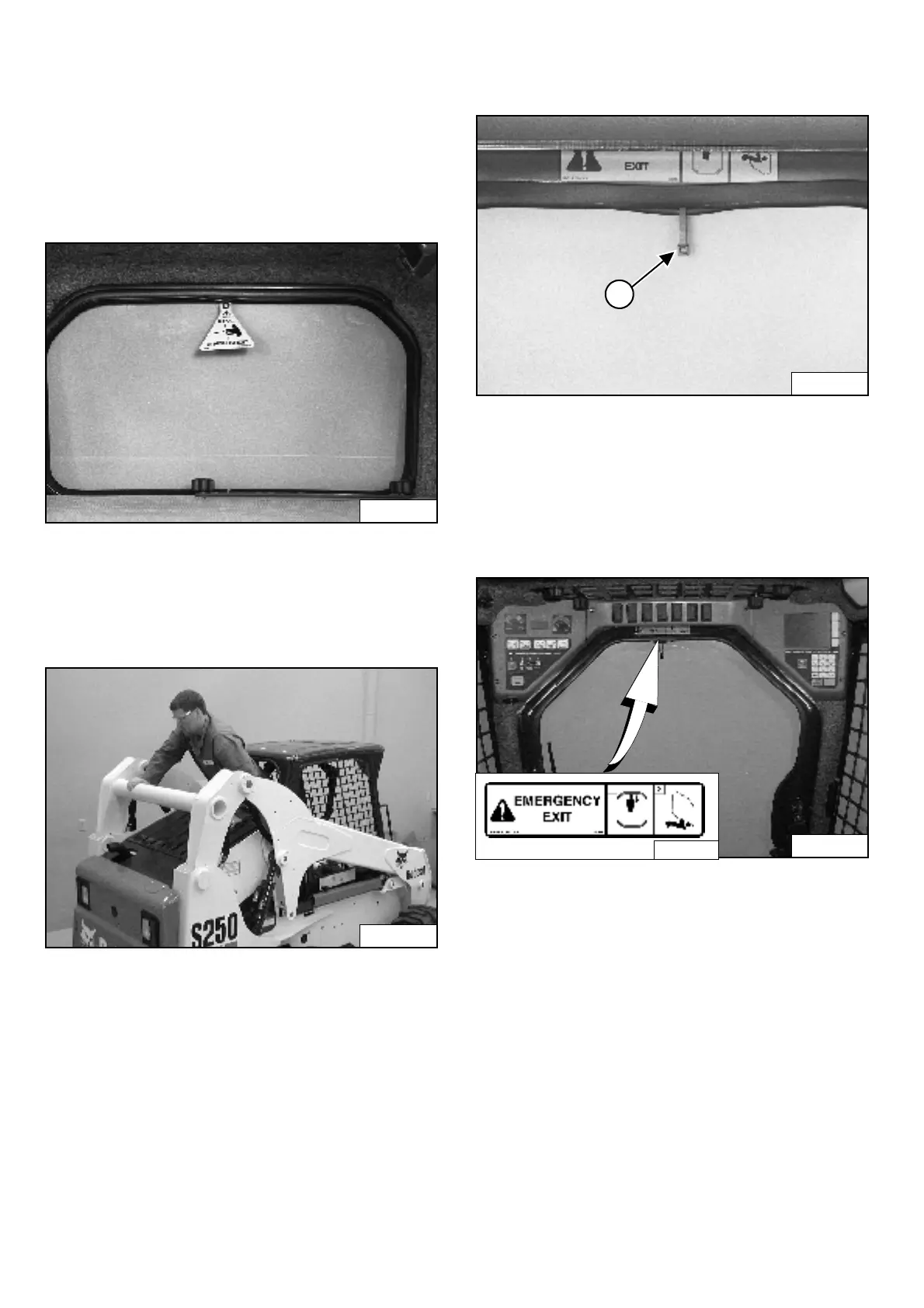

Emergency Exit
The front opening on the operator cab and rear window
provide exits.
Rear Window (If Equipped)
Figure PM-10
Pull on the tag [Figure PM-10] on the top of the rear
window to remove the rubber cord.
Push the rear window out of the rear of the operator cab.
Figure PM-11
Exit through the rear of the operator cab [Figure PM-11].
Front Door (If Equipped)
Figure PM-12
NOTE: When an Operator Cab Enclosure Kit is
installed, the window of the front door can be
used as an emergency exit [Figure PM-13].
Pull the plastic loop at the top of the window in the front
door to remove the rubber cord (Item 1) [Figure PM-12].
Figure PM-13
Push the window out with your foot [Figure PM-13] at
any corner (X) of the window.
Exit through the front door.
N-19386
P-31269
N-20171
1
P-24472
X
X
X
X
6707852
