S250 Bobcat Loader
PM-21 Operation & Maintenance Manual
ELECTRICAL SYSTEM
Description

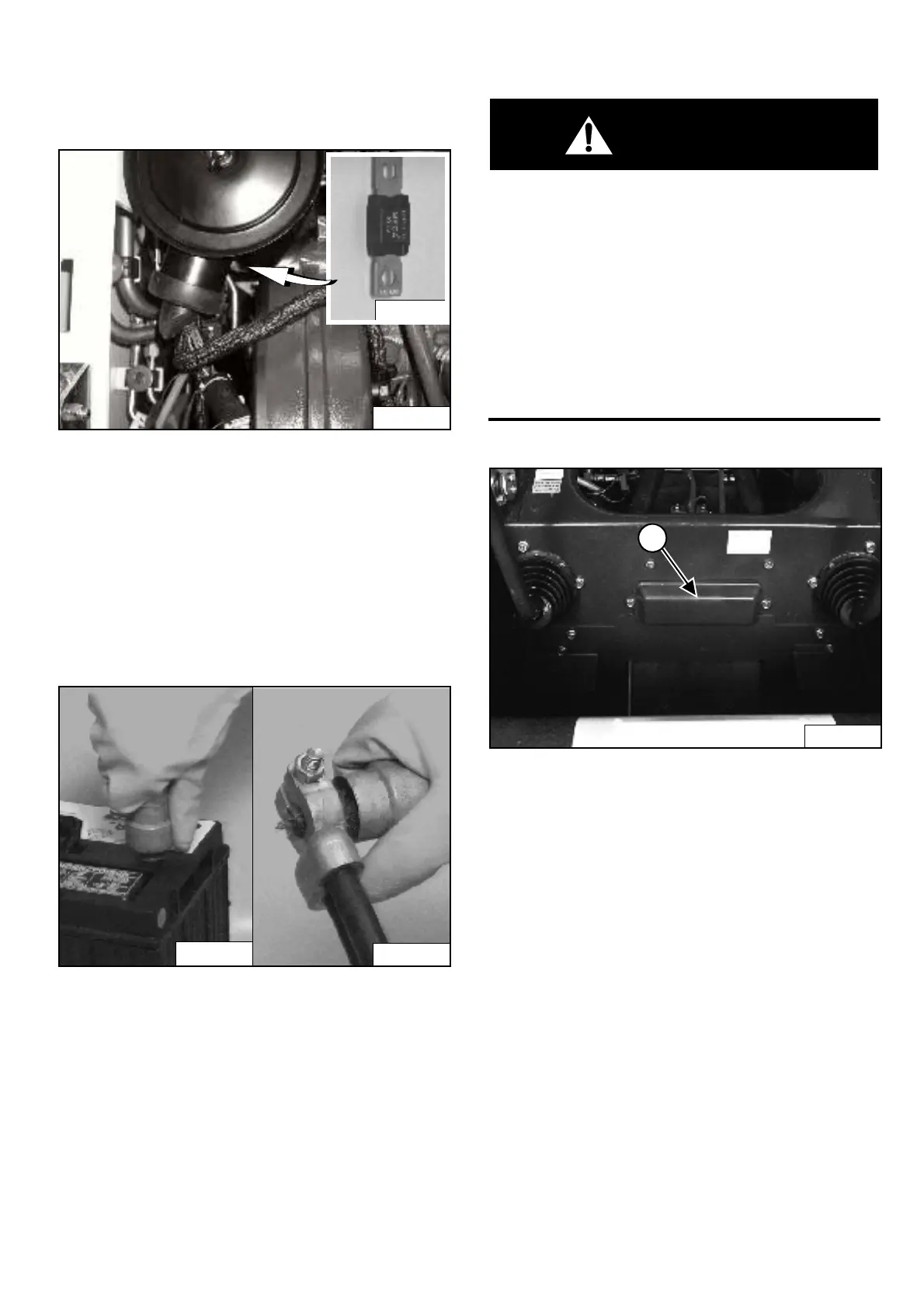

Figure PM-36
The loader has a 12 volt, negative ground alternator
charging system. The electrical system is protected by
fuses located in the cab on the steering control panel,
and a 100 amp master fuse [Figure PM-36] in the engine
compartment on the left side of the engine, under the air
cleaner. The fuses will protect the electrical system when
there is an electrical overload. The reason for the
overload must be found before staring the engine again.
Cleaning Battery and Terminals
Figure PM-37
The battery cables must be clean and tight
[Figure PM-37]. Check electrolyte level in the battery.
Add distilled water as needed. Remove acid or corrosion
from battery and cables with sodium bicarbonate (baking
soda) and water solution.
Put Battery Saver (6664458) or grease on the battery
terminals and cable ends to prevent corrosion.
Fuse Location
WARNING
Batteries contain acid which burns eyes and skin on
contact. Wear goggles, protective clothing and
rubber gloves to keep acid off body.
In case of acid contact, wash immediately with water.
In case of eye contact get prompt medical attention
and wash eye with clean, cool water for at least
15 minutes.
If electrolyte is taken internally drink large quantities
of water or milk! DO NOT induce vomiting. Get
prompt medical attention.
W-2065-1296
Figure PM-38
The electrical system is protected from overload by fuses
and relays under the fuse panel cover (Item 1)
[Figure PM-38]. A decal is inside the cover to show
location and amp ratings.
Remove the cover to check or replace the fuses.
P-34871
P-13849
P-09590
P-09589
N-19659
1
