S250 Bobcat Loader
PM-22 Operation & Maintenance Manual
ELECTRICAL SYSTEM (CONT’D)
Fuse Location (Cont’d)

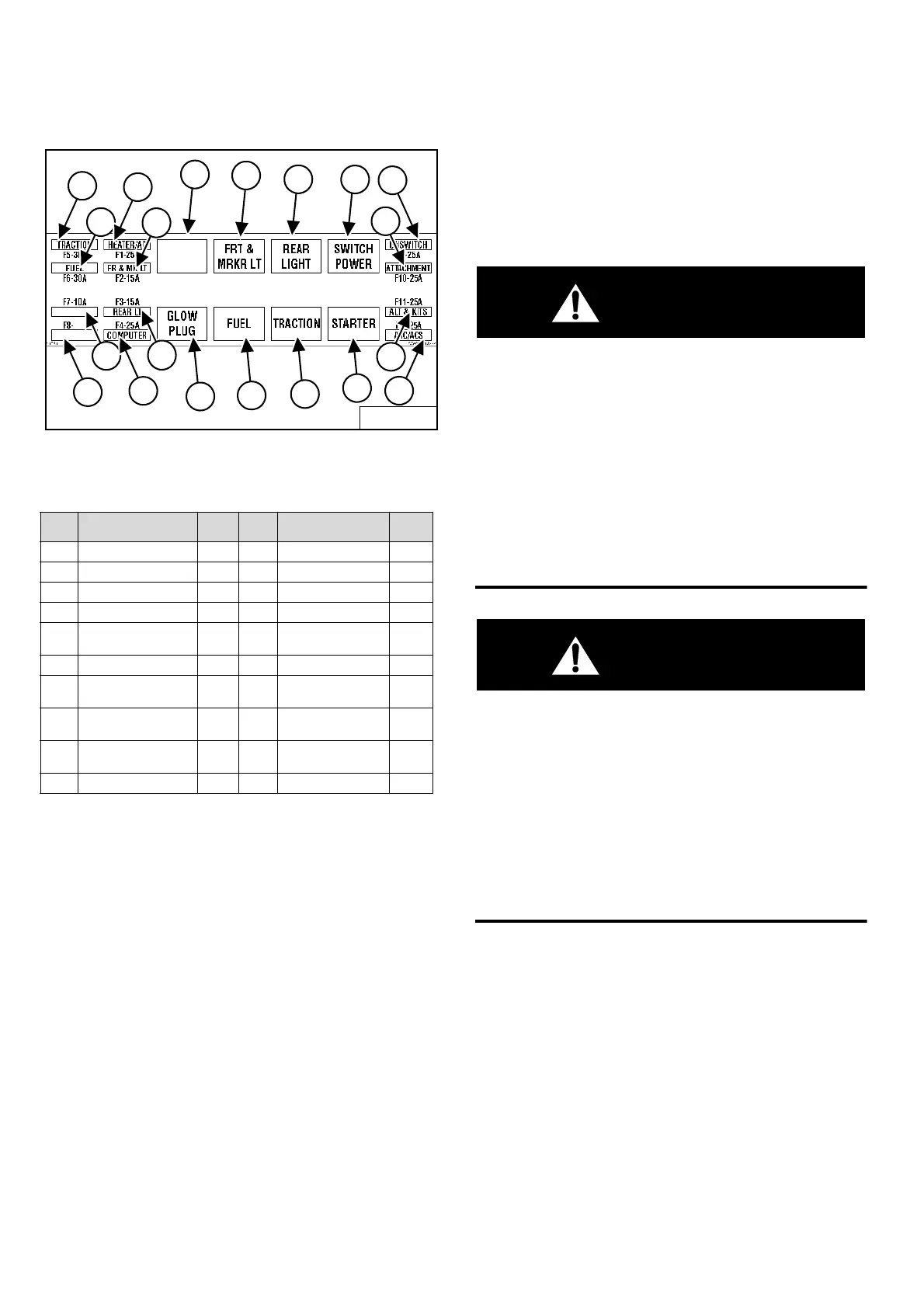

Figure PM-39
The location and sizes are shown below and in
[Figure PM-39].
R=Relay
Using A Booster Battery (Jump Starting)
If it is necessary to use a booster battery to start the
engine, BE CAREFUL! There must be one person in the
operator’s seat and one person to connect and
disconnect the battery cables.
The key switch must be OFF (Standard Panel) OR the
STOP Button must be pressed (Deluxe Panel). The
booster battery must be 12 volt.
WARNING
Batteries contain acid which burns eyes and skin on
contact. Wear goggles, protective clothing and
rubber gloves to keep acid off body.
In case of acid contact, wash immediately with water.
In case of eye contact get prompt medical attention
and wash eye with clean, cool water for at least
15 minutes.
If electrolyte is taken internally drink large quantities
of water or milk! DO NOT induce vomiting. Get
prompt medical attention.
W-2065-1296
WARNING
Keep arcs, sparks flames and lighted tobacco away
from batteries. When jumping from booster battery
make final connection (negative) at engine frame.
Do not jump start or charge a frozen or damaged
battery. Warm battery to 16°C (60°F) before
connecting to a charger. Unplug charger before
connecting or disconnecting cables to battery. Never
lean over battery while boosting, testing or charging.
Battery gas can explode and cause serious injury.
W-2066-1296
6718774
1
2
5
6
9
17
11
13
15
4
3
8
7
10
20
19
12
14
16
18
REF DESCRIPTION AMP REF DESCRIPTION AMP
1 Traction 30 11 Front & Marker Lights R
2 Fuel Shutoff 30 12 Fuel Shutoff R
3 Not Used - - 13 Rear Lights R
4 Not Used - - 14 Traction R
5 Heater & Air
Conditioner
25 15 Switch Power R
6 Front & Marker Lights 15 16 Starter R
7 Rear Lights 15 17 Unswitched
Attachments
25
8 Bobcat Controller 25 18 Switched
Attachments
25
9 Not Used - - 19 Alternator &
Accessories
25
10 Glow Plugs R 20 Accessory Plug 25
