HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Replacing Hydraulic/Hydrostatic Filter (Cont’d)
Check the fluid level in the reservoir and add as needed.
WARNING
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire which can result in injury or death.
W-2103-1285
Replacing Hydraulic Fluid and Case Drain Filters
For the correct service interval (See SERVICE
SCHEDULE on Page PM-5).
Replace the fluid if it becomes contaminated or after
major repair.
Always replace the hydraulic/hydrostatic filter (See
Replacing Hydraulic/Hydrostatic Filter on Page PM-25)
and clean the hydraulic fill screen and the case drain
filters whenever the hydraulic fluid is replaced.
Remove the fill cap and raise the operator cab (See
Raising The Operator Cab on Page PM-7).

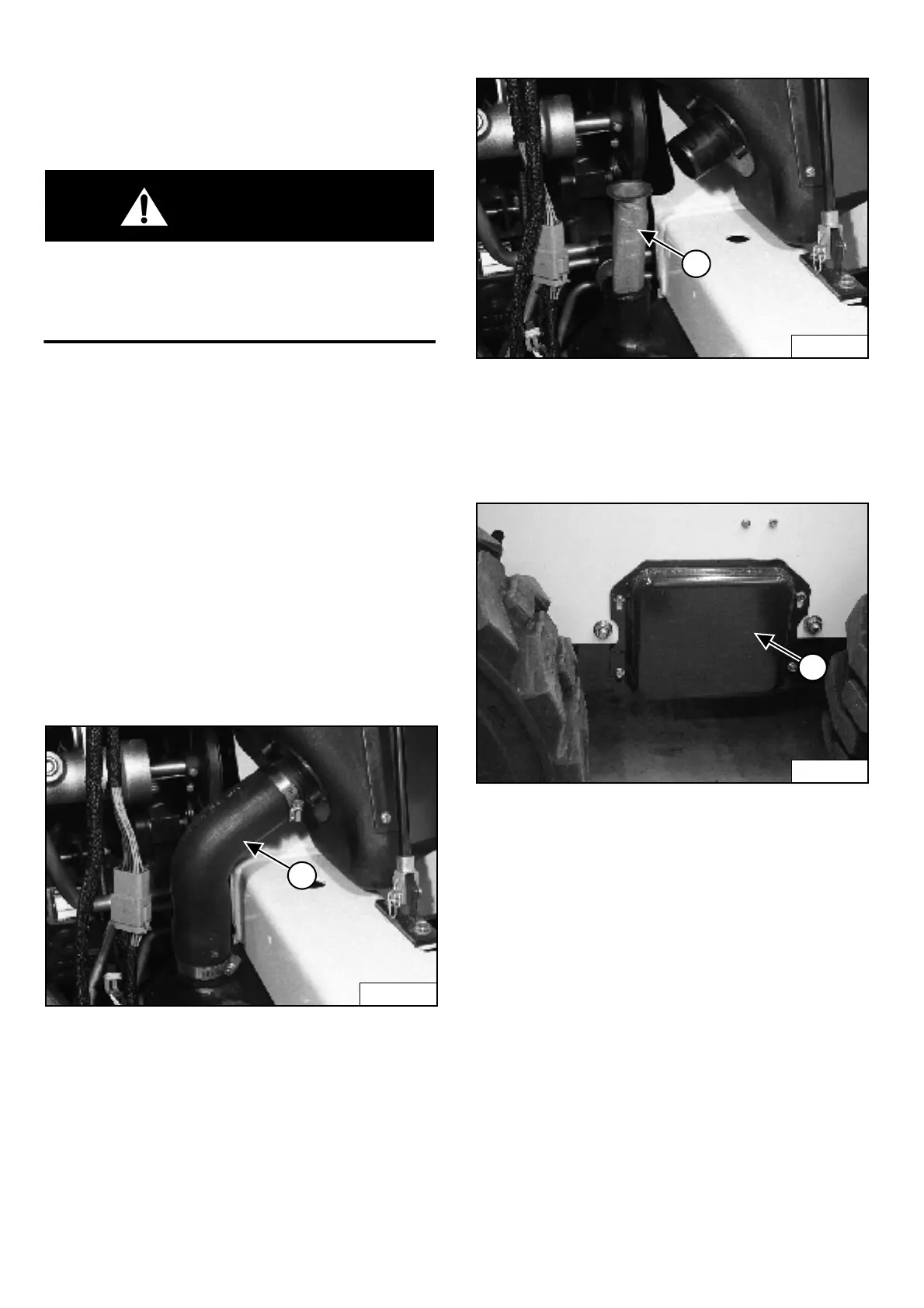

Hydraulic Fill Screen
Figure PM-46
Remove the two hose clamps and remove the
hose (Item 1) [Figure PM-46].
Figure PM-47
Remove the hydraulic fill screen (Item 1) [Figure PM-47].
Use air pressure to dry the screen.
Install screen, hose and hose clamps.
Figure PM-48
Remove the hydrostatic motor cover (Item 1)
[Figure PM-48]. (Left Side)
N-19610
1
N-19611
1
P-31285
1
