S250 Bobcat Loader
PM-27 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Replacing Hydraulic Fluid and Case Drain Filters
(Cont’d)

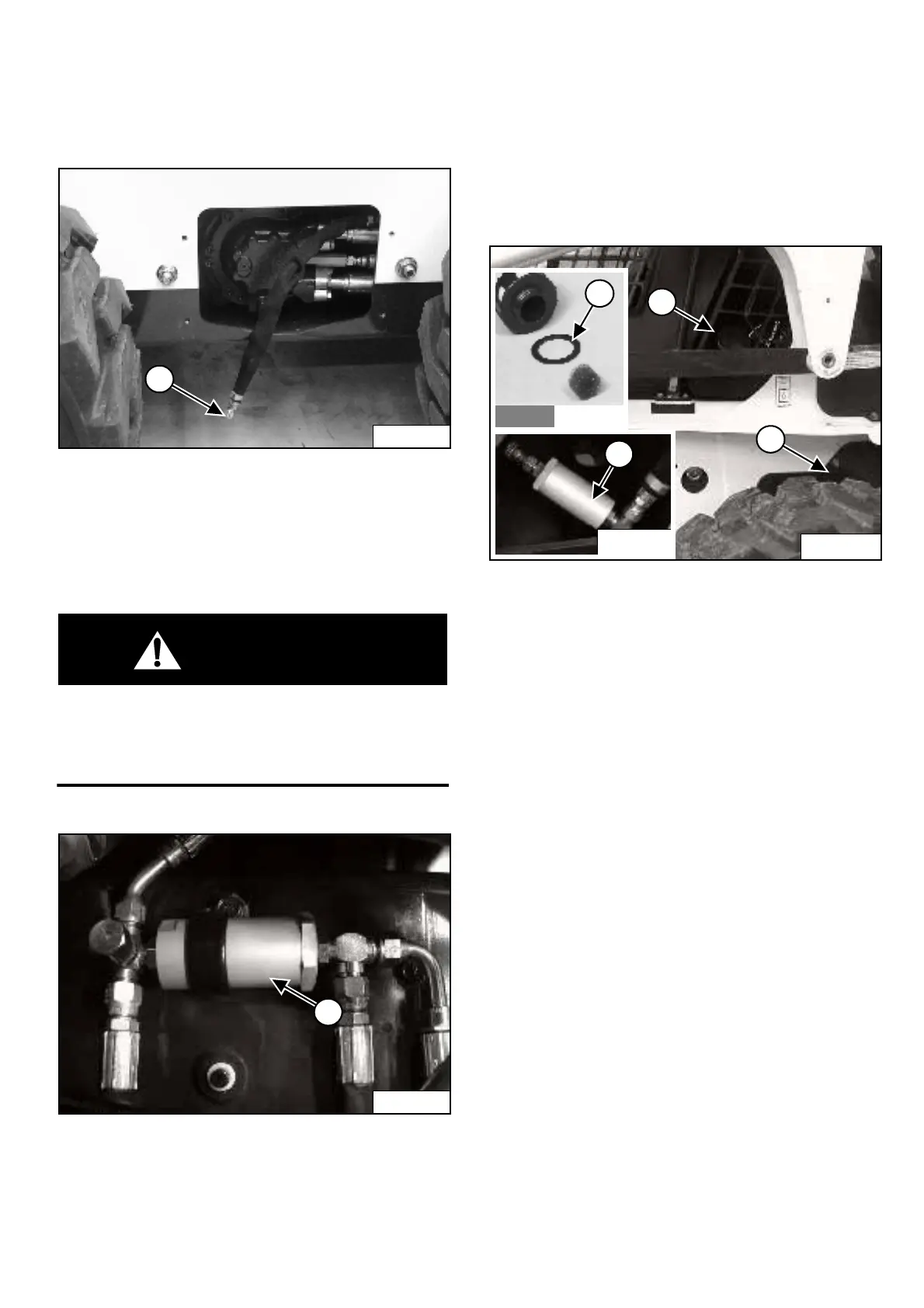

Figure PM-49
Pull the reservoir drain hose out the left motor cover hole.
Remove the plug (Item 1) [Figure PM-49] and drain the
fluid into a container.
Recycle or dispose of used fluid in an environmentally
safe manner.
WARNING
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire which can result in injury or death.
W-2103-1285
Figure PM-50
Disconnect the hoses from the hydrostatic motor case
drain filter (Item 1) [Figure PM-50], remove the filter and
discard.
Install a new filter; connect and tighten the hoses.
Install the plug in the reservoir drain hose and tighten.
Install the motor cover.
Figure PM-51
Remove the left lower side cover (Item 1)
[Figure PM-51].
Disconnect the hoses from the attachment case drain
filter (Item 2) [Figure PM-51]. Remove and discard the
filter.
Install new filter, tighten the hose fittings and install the
cover.
Add the correct fluid to the reservoir until the fluid level is
at the center of the sight gauge. (See Checking And
Adding Fluid on Page PM-25.)
Breather Cap
The fill cap is also a breather for the hydraulic/hydrostatic
reservoir. For the correct service interval (See SERVICE
SCHEDULE on Page PM-5).
Remove the cap (Item 3) [Figure PM-51] and use clean
solvent to remove debris. Dry the cap thoroughly. Install
the fill/breather cap [Figure PM-51].
NOTE: Be sure the rubber gasket (Item 4)
[Figure PM-51] is installed on the fill cap.
