51 S450 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)
Right Panel (Deluxe Instrumentation Panel)

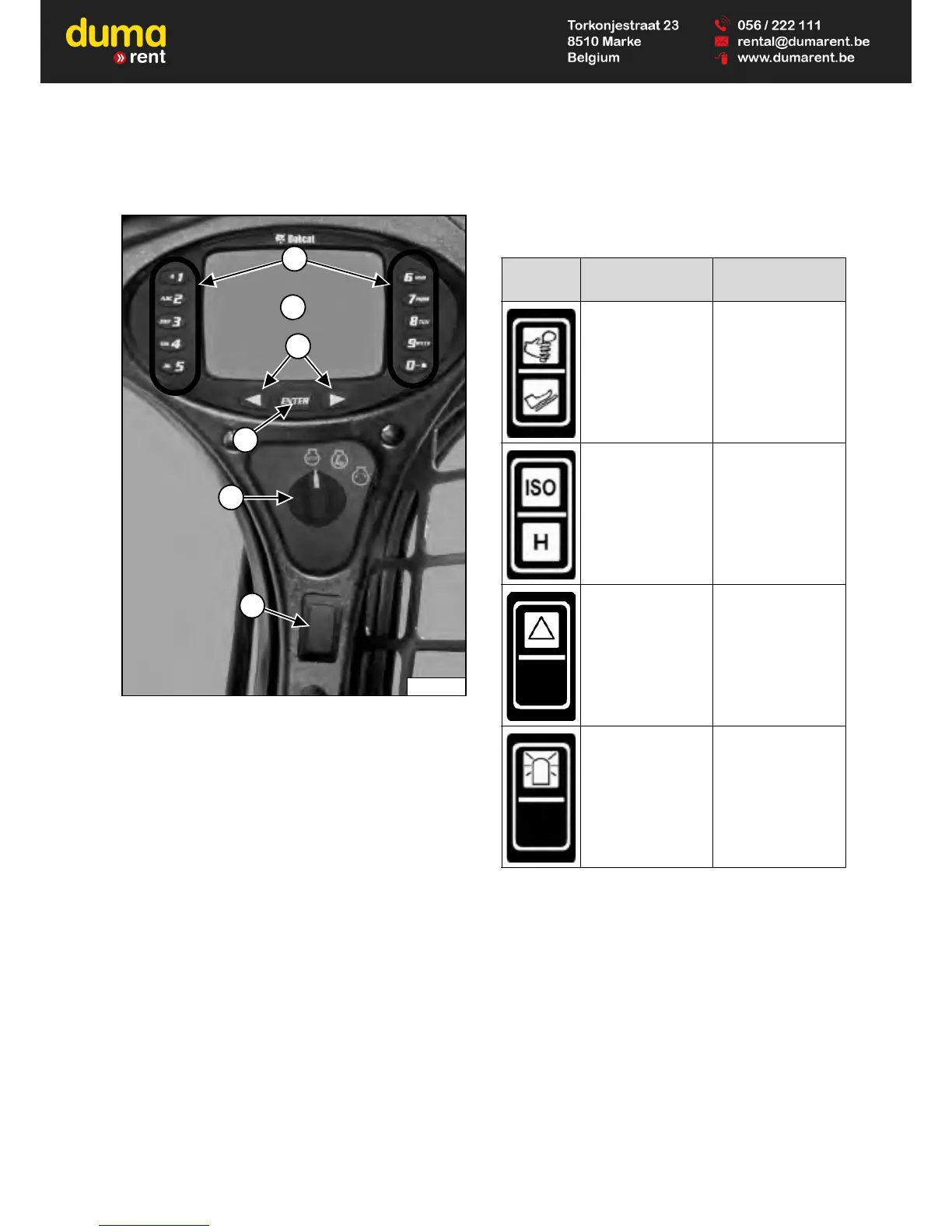

Figure 16
This machine may be equipped with a Deluxe
Instrumentation Panel [Figure 16].
1. Keypad (keys 1 through 0): The keypad has two
functions:
- To enter a number code (password) to allow starting
the engine.
- To enter a number as directed for further use of the
display screen.
2. Display Screen: The display screen is where all
system setup, monitoring, and error conditions are
displayed.
3. Scroll Buttons: Used to scroll through display screen
choices.
4. ENTER Button: Used to make selections on the
display screen.
5. Key Switch: Used to turn the loaders electrical
system on and off, and to start and stop the engine.
The switch location (Item 6) [Figure 16] can have
different functions depending on machine configuration.
See the following table for more information.
To Next Page
