106 S650 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Power
Bob-Tach) (Cont’d)
Installing (Cont’d)

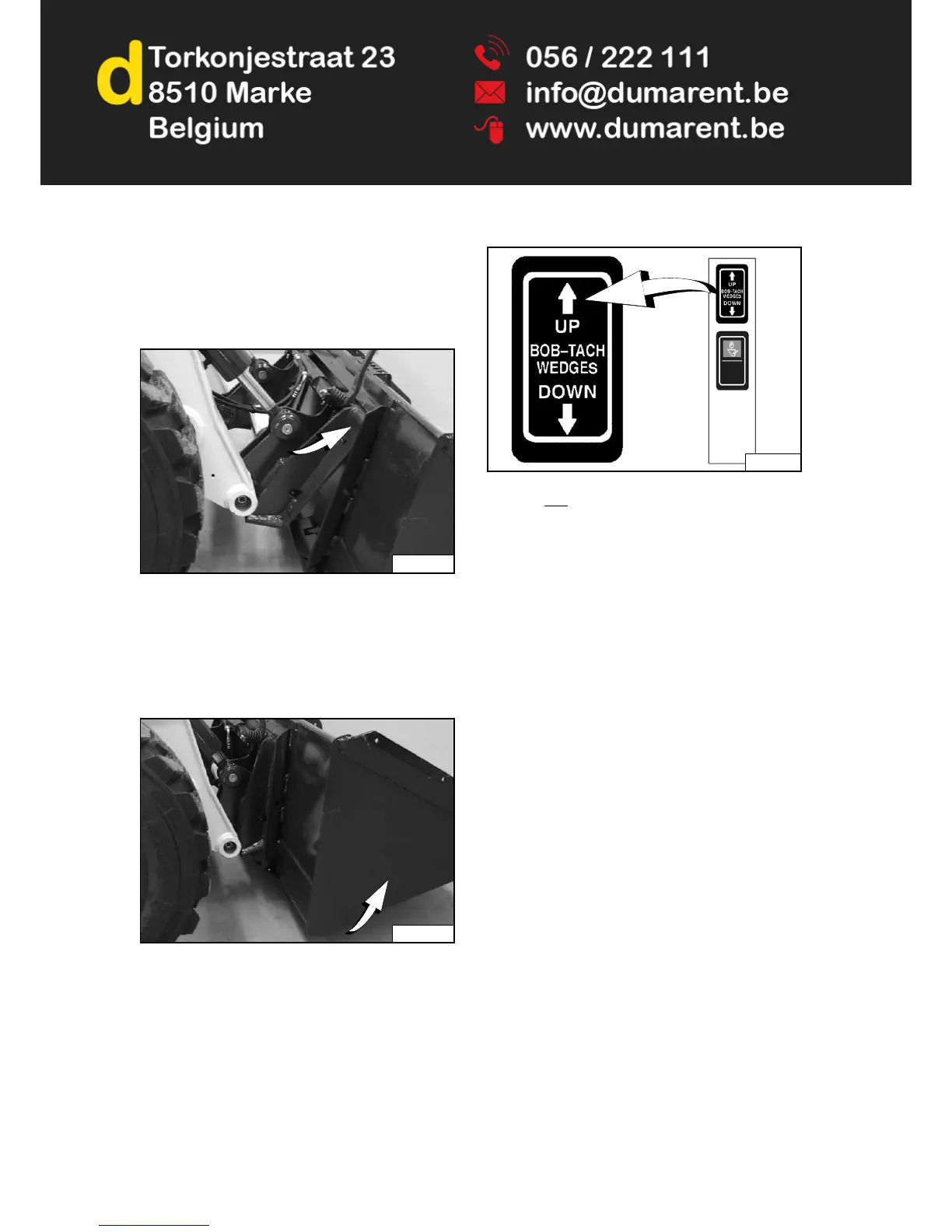

Figure 138
Drive the loader slowly forward until the top edge of the
Bob-Tach is completely under the top flange of the bucket
mounting frame [Figure 138] (or other attachment).
NOTE: Be sure the Bob-Tach levers do not hit the
attachment.
Figure 139
Tilt the Bob-Tach backward until the cutting edge of the
bucket (or other attachment) is slightly off the ground
[Figure 139]. This will cause the bucket mounting frame
to fit up against the front of the Bob-Tach.
Figure 140
Push and hold
BOB-TACH “WEDGES UP” switch (Right
Switch Panel) [Figure 140] to make sure the levers are
fully raised (wedges fully raised).
NOTE: The Power Bob-Tach system has continuous
pressurised hydraulic oil to keep the wedges
in the engaged position and prevent
attachment disengagement. Because the
wedges can slowly lower, the operator may
need to reactivate the switch (BOB-TACH
WEDGES UP) to be sure both wedges are fully
raised before installing the attachment.
