109 S650 Operation & Maintenance Manual
ATTACHMENTS (CONT’D)
Installing And Removing The Attachment (Power
Bob-Tach) (Cont’d)
Removing (Cont’d)

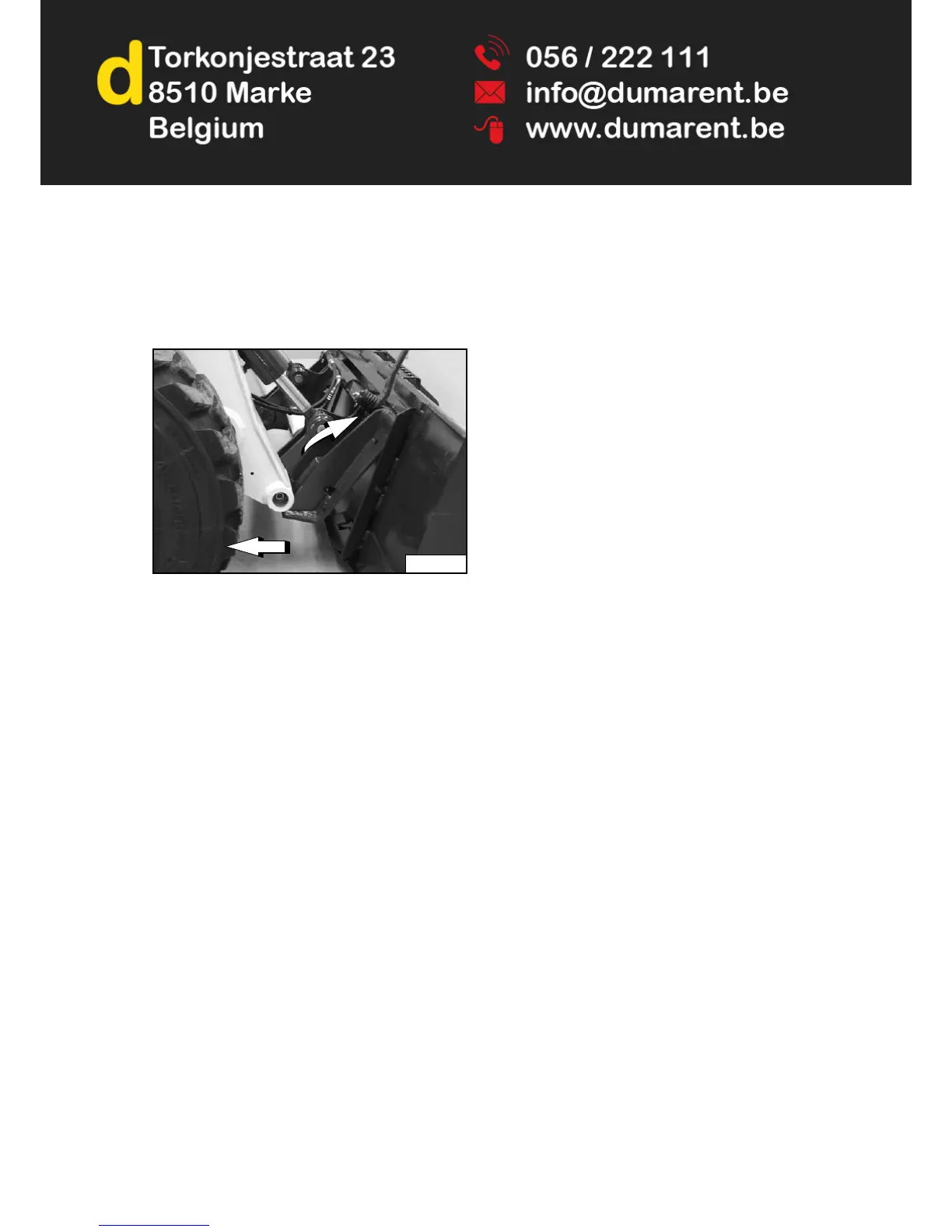

Figure 145
Tilt the Bob-Tach forward and drive the loader backward,
away from the bucket or attachment [Figure 145].
NOTE: The Power Bob-Tach system has continuous
pressurised hydraulic oil to keep the wedges
in the engaged position and prevent
attachment disengagement. Because the
wedges can slowly lower, the operator may
need to reactivate the switch (BOB-TACH
WEDGES UP) when removing an attachment
to be sure both wedges are fully raised.
P-31231
