OPERATING PROCEDURE (CONT’D)
Leveling The Ground Using Float (Foot Pedals)

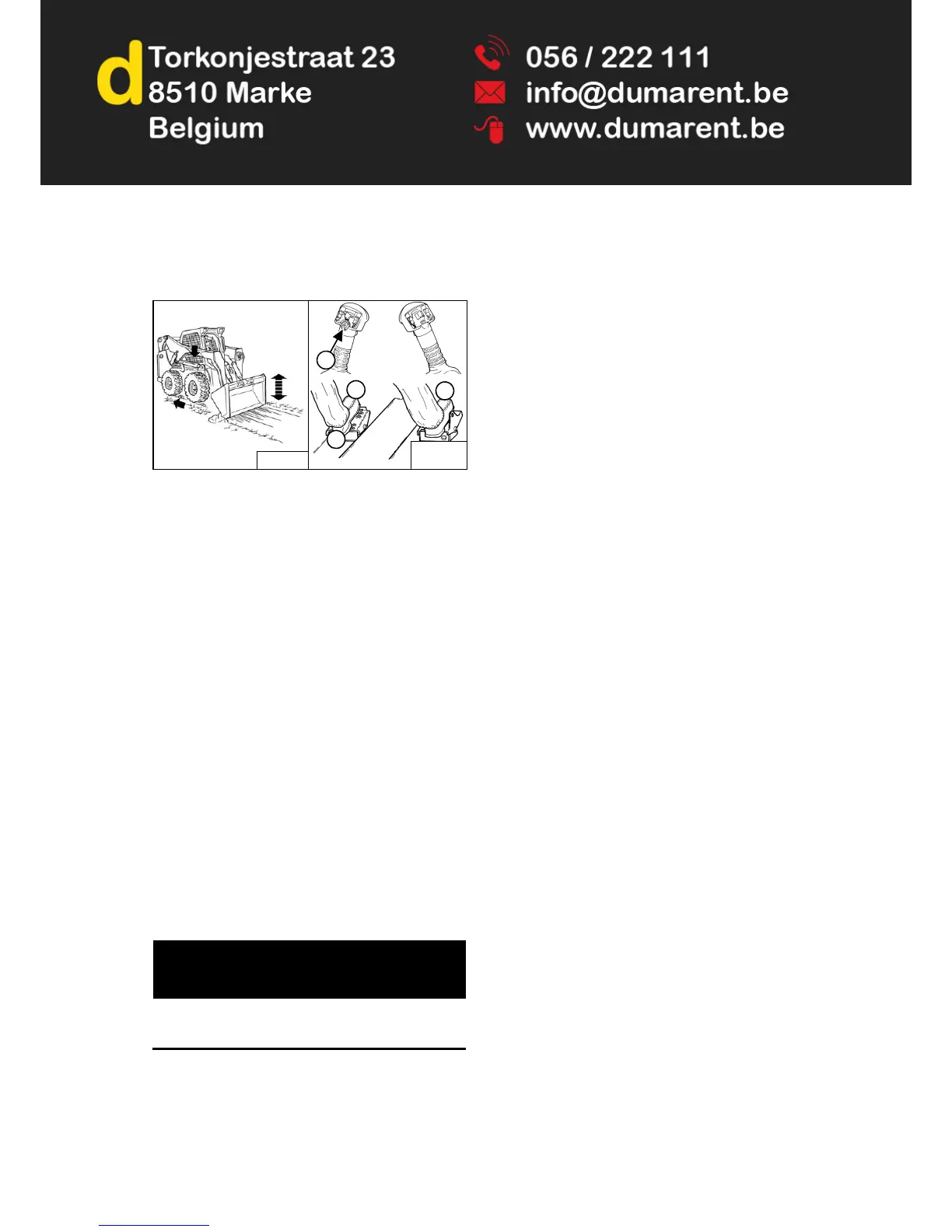

Figure 153
Standard Controls
Put the lift arms in float position by pushing the pedal all
the way forward (Item 1) [Figure 153] until the pedal is
locked in the forward position.
ACS In Foot Pedal Mode
Press and hold the float button (Item 4) on the left handle
while the left pedal is in neutral. While lowering the lift
arms (Item 1) [Figure 153], release the float button.
Standard Controls And ACS In Foot Pedal Mode
Tilt the bucket forward (Item 2) [Figure 153] to change
the position of the cutting edge of the bucket.
With the bucket tilted farther forward, there is more force
on the cutting edge and more loose material can be
moved.
Drive backward to level loose material.
Push the bottom of the lift pedal (Item 3) [Figure 153] to
unlock the float position.
NOTE: On ACS equipped loaders in Foot Pedal Mode,
pressing the float button again will disengage
float.
IMPORTANT
Never drive forward when the hydraulic control for lift
arms is in float position.
