116 S650 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)
Leveling The Ground Using Float (ACS - Handles,
AHC - Handles And SJC - ‘H’ Pattern)

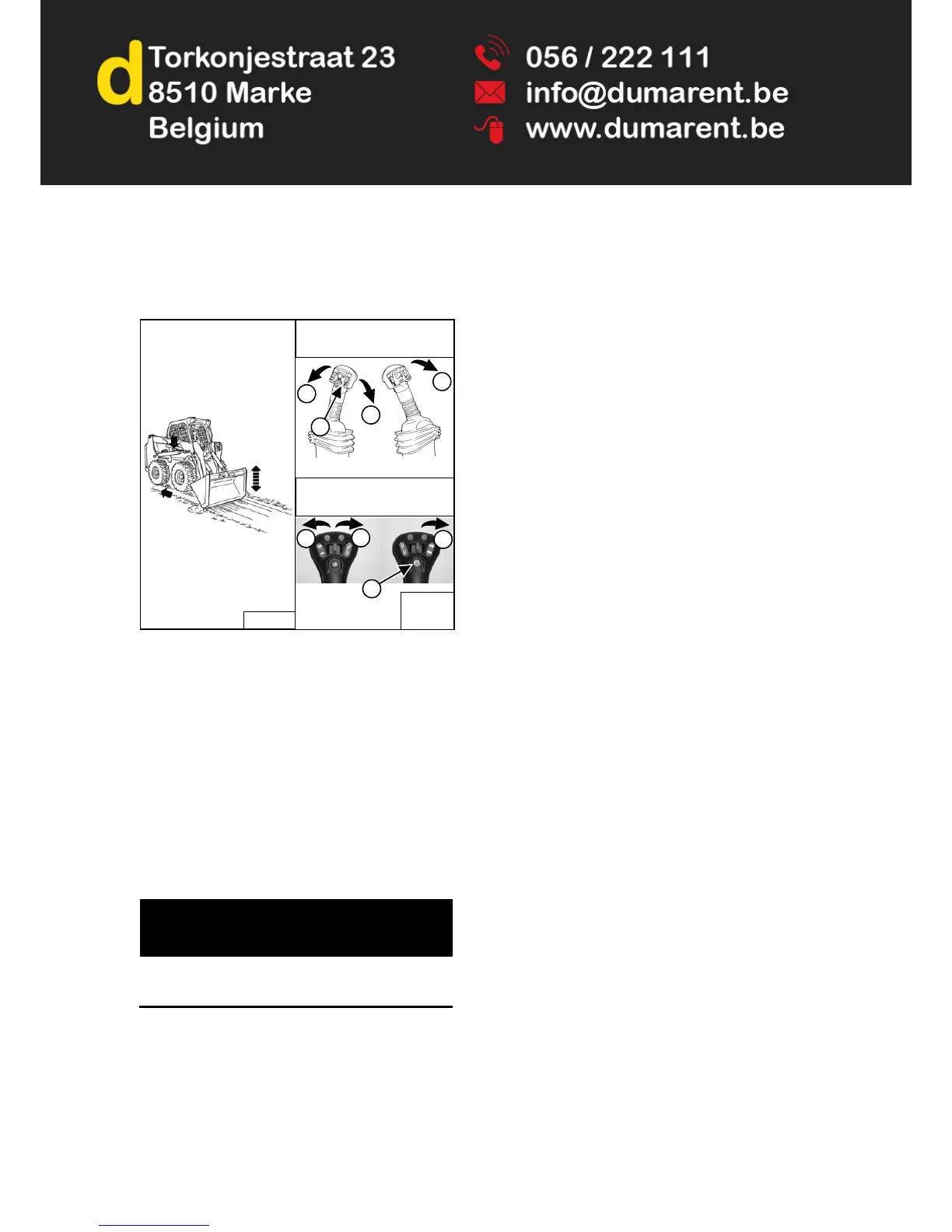

Figure 160
Press and hold the float button (Item 1) [Figure 160]
while the lever is in neutral. While lowering the lift arms
(Item 2) [Figure 160], release the float button.
Tilt the bucket forward (Item 3) [Figure 160] to change
the position of the cutting edge of the bucket.
With the bucket tilted farther forward, there is more force
on the cutting edge and more loose material can be
moved.
Drive backward to level loose material.
To disengage float, press the float button again or raise
the lift arms (Item 4) [Figure 160].
IMPORTANT
Never drive forward when the hydraulic control for lift
arms is in float position.
I-2005-1285
NA1141A
B-15781
P-24820
P-24802
1
1
2
3
4
1
4
2
3
SJC - ‘H’ Pattern
ACS / AHC - Handles
To Next Page
