117 S650 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)
Digging And Filling A Hole (ACS - Handles, AHC -
Handles And SJC - ‘H’ Pattern)
Digging

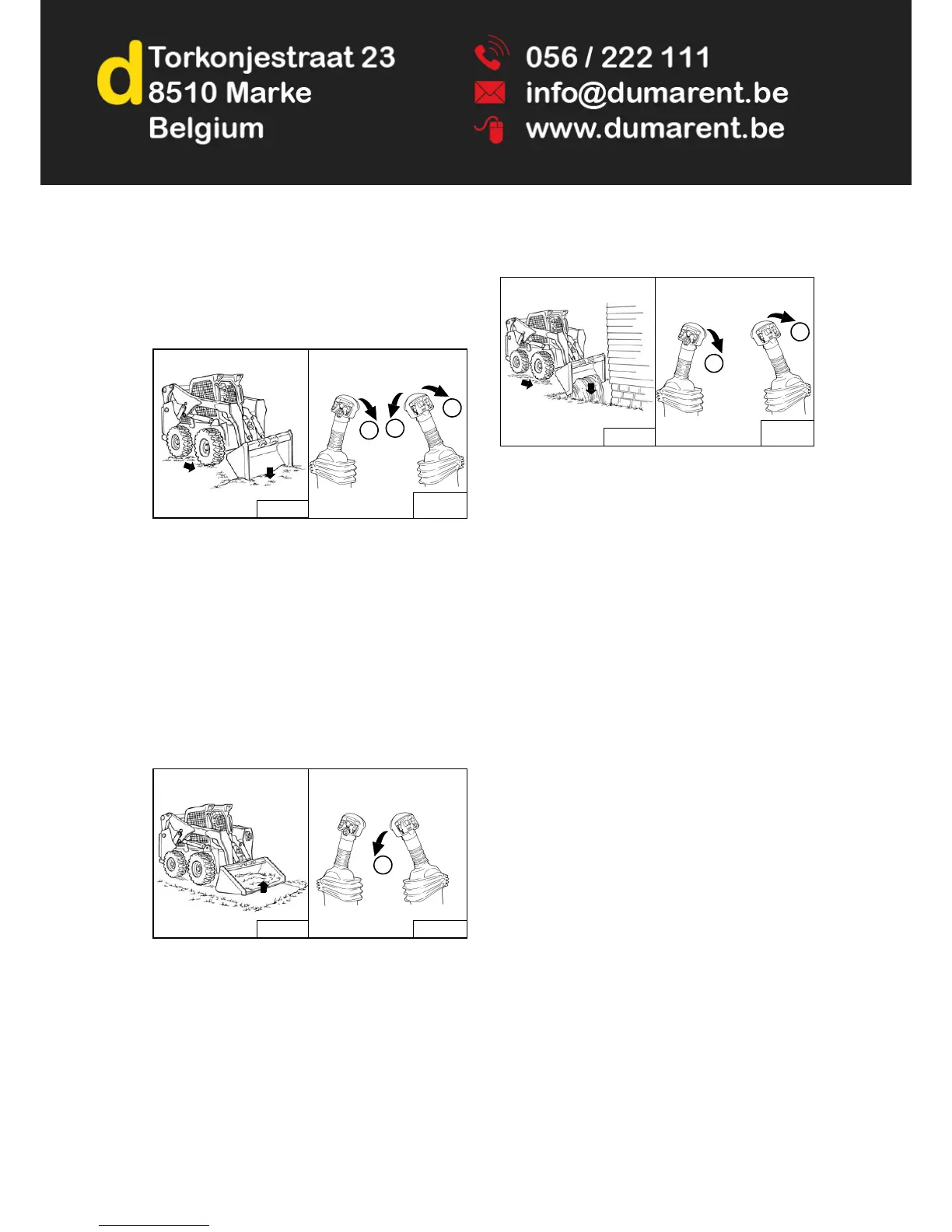

Figure 161
Lower the lift arms all the way (Item 1) [Figure 161]. Tilt
the bucket forward (Item 2) [Figure 161] until the cutting
edge of the bucket is on the ground.
Drive forward slowly and continue to tilt the bucket down
(Item 2) [Figure 161] until it enters the ground.
Tilt the bucket backward a small amount (Item 3)
[Figure 161] to increase traction and keep an even
digging depth. Continue to drive forward until the bucket
is full. When the ground is hard, raise and lower the
cutting edge (Items 2 and 3) [Figure 161] while driving
forward.
Figure 162
Tilt the bucket backward (Item 1) [Figure 162] as far as it
will go when the bucket is full.
Filling
Figure 163
Lower the lift arms (Item 1) [Figure 163] and put the
cutting edge of the bucket on the ground (Item 2)
[Figure 163]. Drive forward to the edge of the hole to
push the material into the hole.
Tilt the bucket forward (Item 2) [Figure 163] as soon as it
is past the edge of the hole.
If necessary, raise the lift arms to empty the bucket.
NA1691
B-15781A
B-15781B
3
2
1
NA1685
1
B-15781
NA1692
1
2
B-15781A
B-15781B
