132 S650 Operation & Maintenance Manual
SERVICE SCHEDULE (CONT’D)
Inspection Checkbook
Regularly scheduled maintenance is essential to
continuous operation and operating safety. The life
expectancy of your machine depends on proper and
meticulous care.
The Inspection Checkbook contains the following
information:
Doosan Trading Limited Warranty Conditions
Protection Plus Extended Warranty Conditions
General Parts Policy
General Information
First Inspection
Scheduled Services
Identification
Authorised Identification
Lubricants and Fluids Table
Service Parts Chart
Your local dealer can order the Inspection Checkbook.
Part number: 4420300.
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)
Inspecting The BICS™ (Engine STOPPED - Key ON)

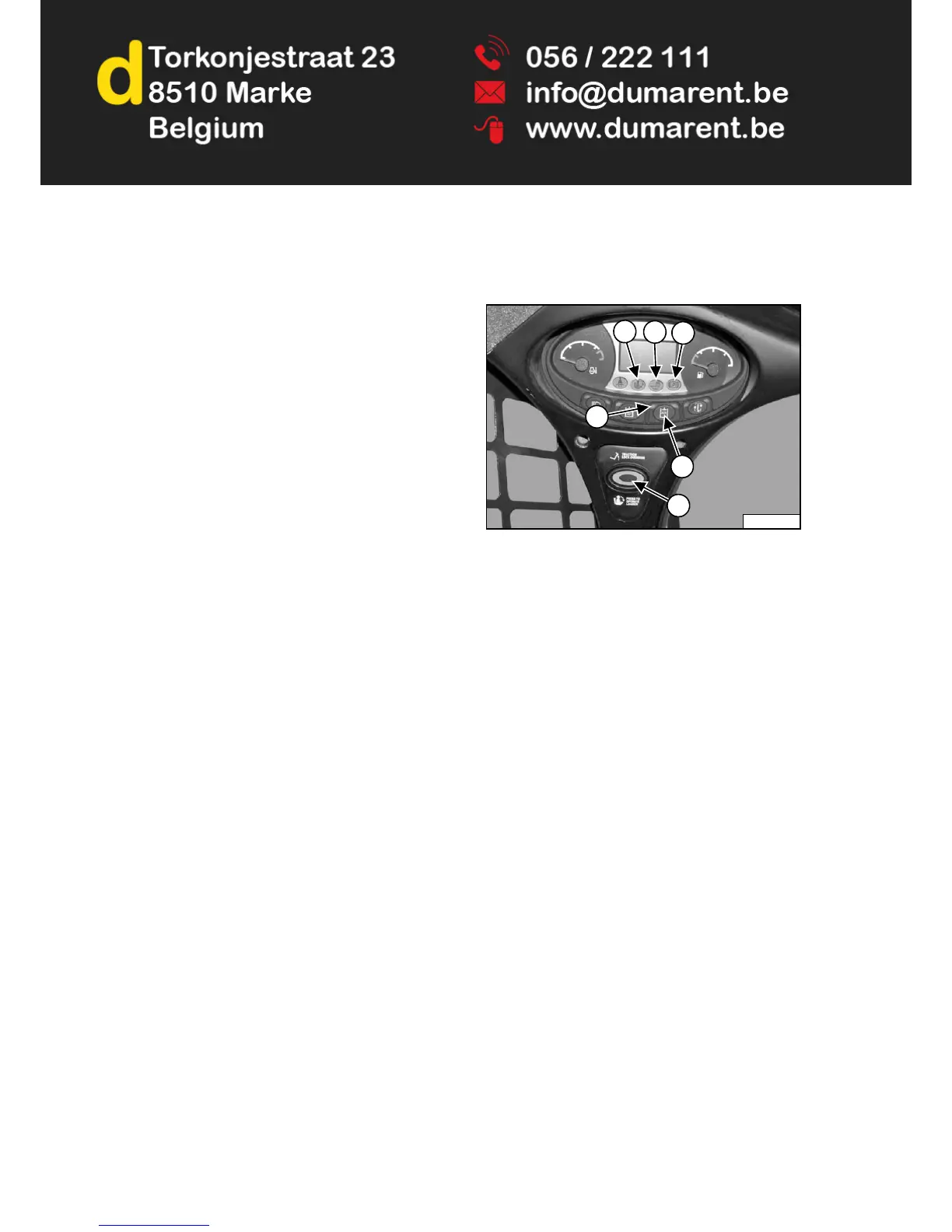

Figure 176
1. Sit in operator’s seat. Turn key switch to RUN or press
RUN button. Lower seat bar and disengage parking
brake. Press the PRESS TO OPERATE LOADER
button (Item 6). Two BICS™ lights (Items 1 and 2)
[Figure 176] [SEAT BAR AND LIFT & TILT VALVE] on
left instrument panel must be OFF. The PRESS TO
OPERATE LOADER button will light.
2. Raise seat bar fully. All three BICS™ lights (Items 1,
2 and 3) [Figure 176] [SEAT BAR, LIFT & TILT
VALVE and PARKING BRAKE] on left instrument
panel must be ON. The PRESS TO OPERATE
LOADER button light will turn OFF.
Inspecting Deactivation Of The Auxiliary Hydraulics
System (Engine STOPPED - Key ON)
3. Sit in operator’s seat, lower seat bar and press the
PRESS TO OPERATE LOADER button (Item 6).
Press the auxiliary hydraulics button (Item 5). The
auxiliary hydraulics light will be ON (Item 4)
[Figure 176]. Raise the seat bar. The light must be
OFF.
P-85413C
5
1
2
3
6
4
