Bobcat S650 - LIFT ARM SUPPORT DEVICE

135 S650 Operation & Maintenance Manual
SEAT BAR RESTRAINT SYSTEM (CONT’D)
Maintaining
See the SERVICE SCHEDULE for correct service
interval. (See SERVICE SCHEDULE on Page 131.)

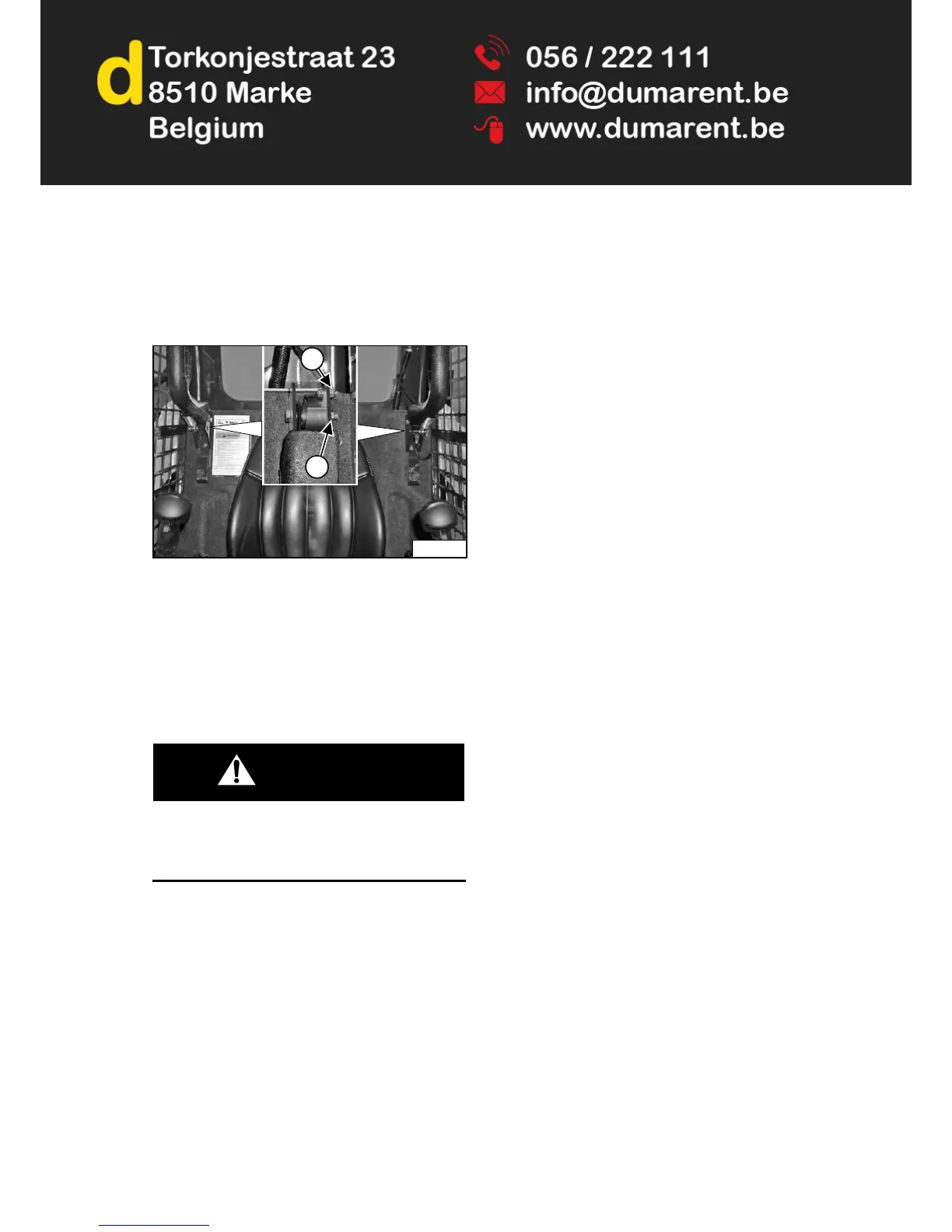

Figure 177
Use compressed air to clean any debris or dirt from the
pivot parts. Do not lubricate. Inspect all mounting
hardware. The correct hinge bolt (Item 1) torque is 34 -
38 N•m (25 - 28 ft-lb). The seat bar sensor nut (left side
only) (Item 2) [Figure 177] torque is 6 - 8 N•m (50 - 70 in-
lb).
If the seat bar system does not function correctly, replace
parts that are worn or damaged. Use only genuine Bobcat
replacement parts.
WARNING
The seat bar system must deactivate the lift and tilt
control functions when the seat bar is up. See your
Bobcat dealer for service if hydraulic controls do not
deactivate.
W-2465-111
P-85318
1
2
