12 S650 Operation & Maintenance Manual
LOADER IDENTIFICATION

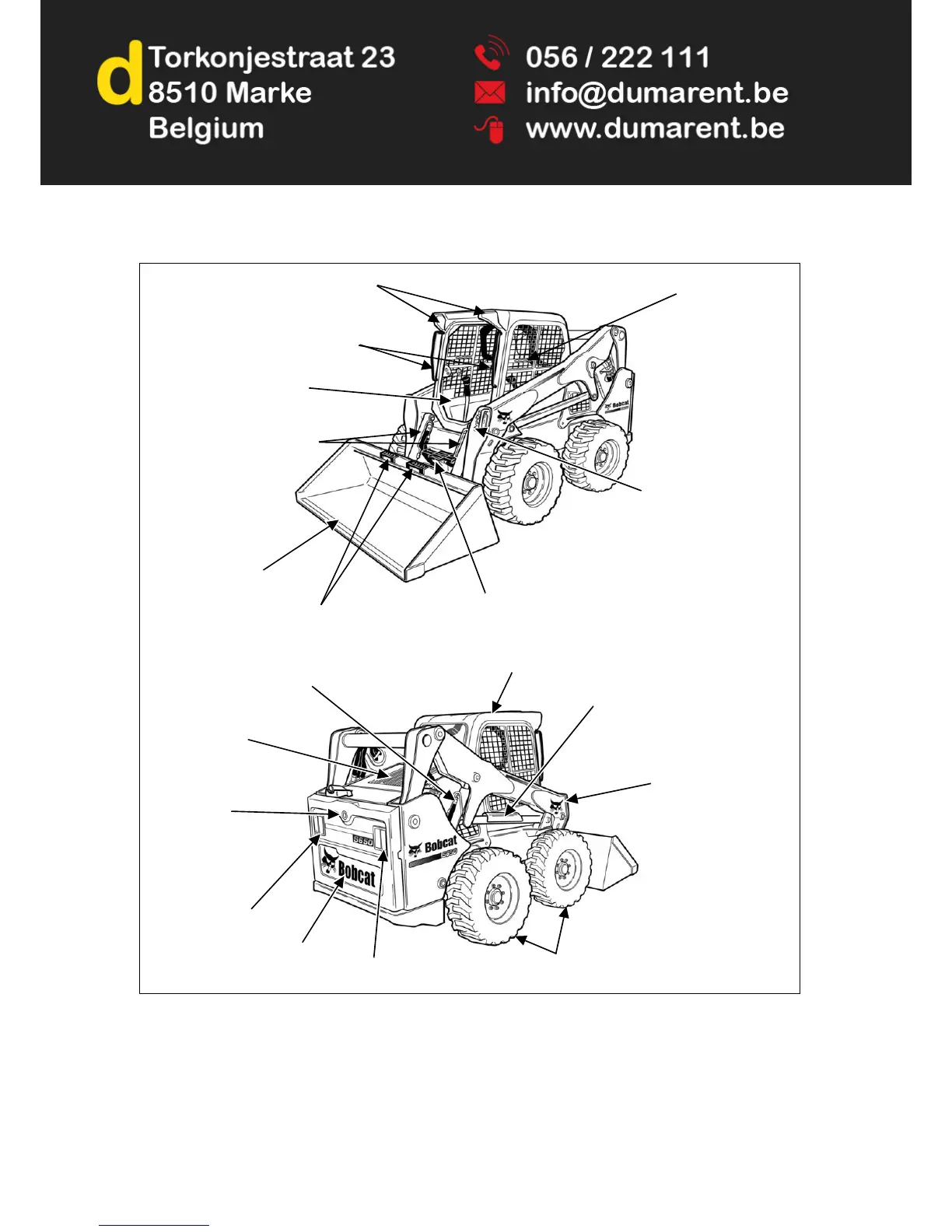

[1] BUCKETS - Several different buckets and other attachments are available for the Bobcat loader.
[2] ROPS, FOPS - Roll Over Protective Structure, per ISO 3471, and Falling Object Protective Structure per ISO
3449, Level I. Level II is available.
[3] TYRES - Standard tyres are shown. Several different tyre styles and sizes are available for the Bobcat loader.
[4] Optional or Field Accessory. (Not Standard Equipment.)
FRONT
LIGHTS
GRAB
HANDLES
OPERATOR SEAT
with SEAT BELT
AND SEAT BAR
TILT
CYLINDERS
[1] BUCKET
STEP
LIFT ARM
[3] TYRES
REAR
GRILLE
BUCKET
STEPS
FRONT AUXILIARY
QUICK COUPLERS
TAIL LIGHT
REAR
DOOR
REAR
LIGHT
[2] OPERATOR CAB
(ROPS AND FOPS)
NA1667
NA5038
LIFT
CYLINDER
LIFT ARM
SUPPORT DEVICE
OPERATION &
MAINTENANCE
MANUAL AND
OPERATOR’S
HANDBOOK
[4] BACK-UP
ALARM
