143 S650 Operation & Maintenance Manual
OPERATOR CAB (CONT’D)
Cab Door Sensor
This machine may be equipped with a Cab Door Sensor.

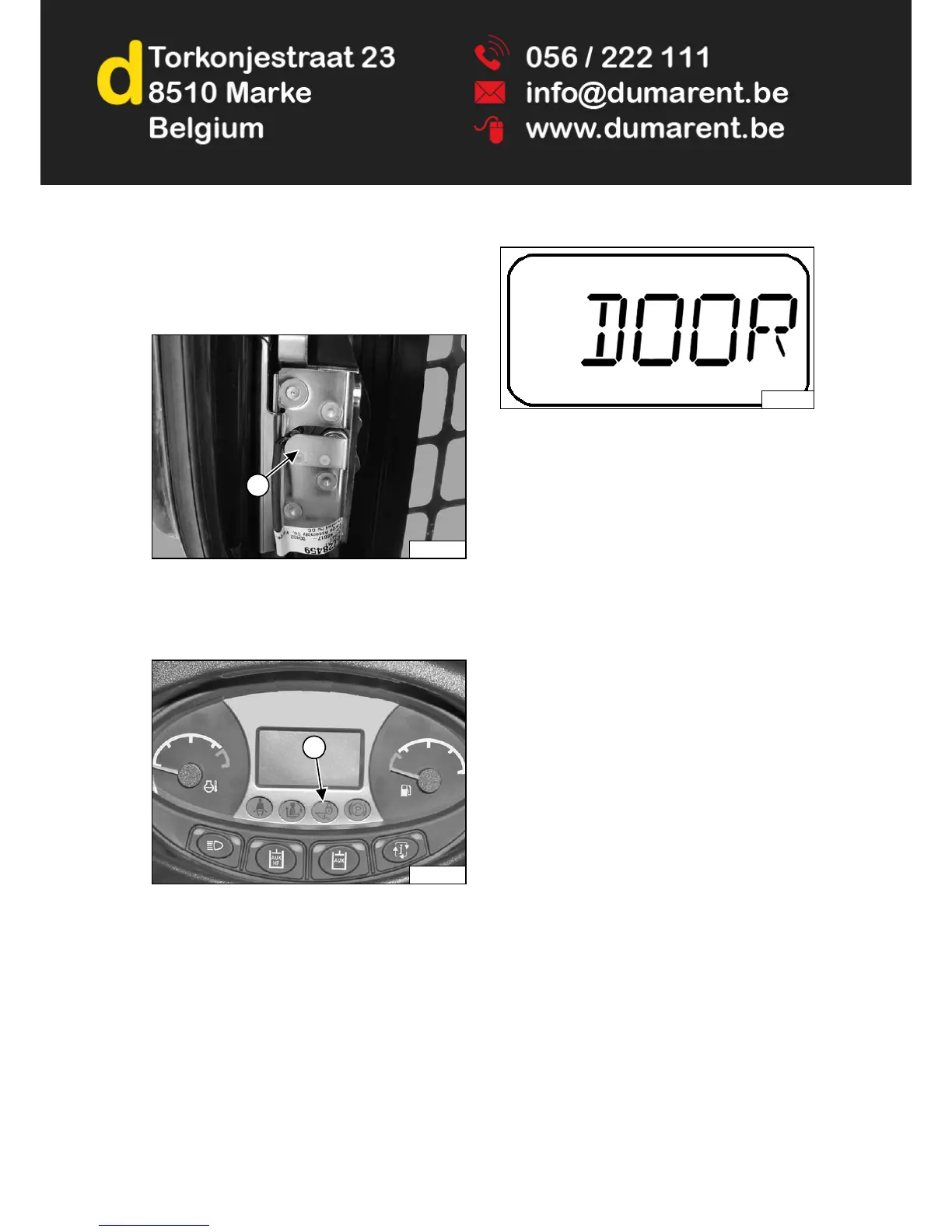

Figure 191
The cab door has a sensor (Item 1) [Figure 191]
installed which deactivates the lift and tilt valves when the
door is open.
Figure 192
The LIFT AND TILT VALVE light (Item 1) [Figure 192] will
be OFF when the door is closed, the key switch is turned
to RUN or the RUN button is pressed, the seat bar is
lowered and the PRESS TO OPERATE LOADER button
is pressed.
Figure 193
The LIFT AND TILT VALVE light (Item 1) [Figure 192] will
be ON when the door is open, the key switch is turned to
RUN or the RUN button is pressed, the seat bar is
lowered and the PRESS TO OPERATE LOADER button
is pressed.
[DOOR] will appear in the data display [Figure 193].
