144 S650 Operation & Maintenance Manual
REAR DOOR (TAILGATE)
Opening And Closing

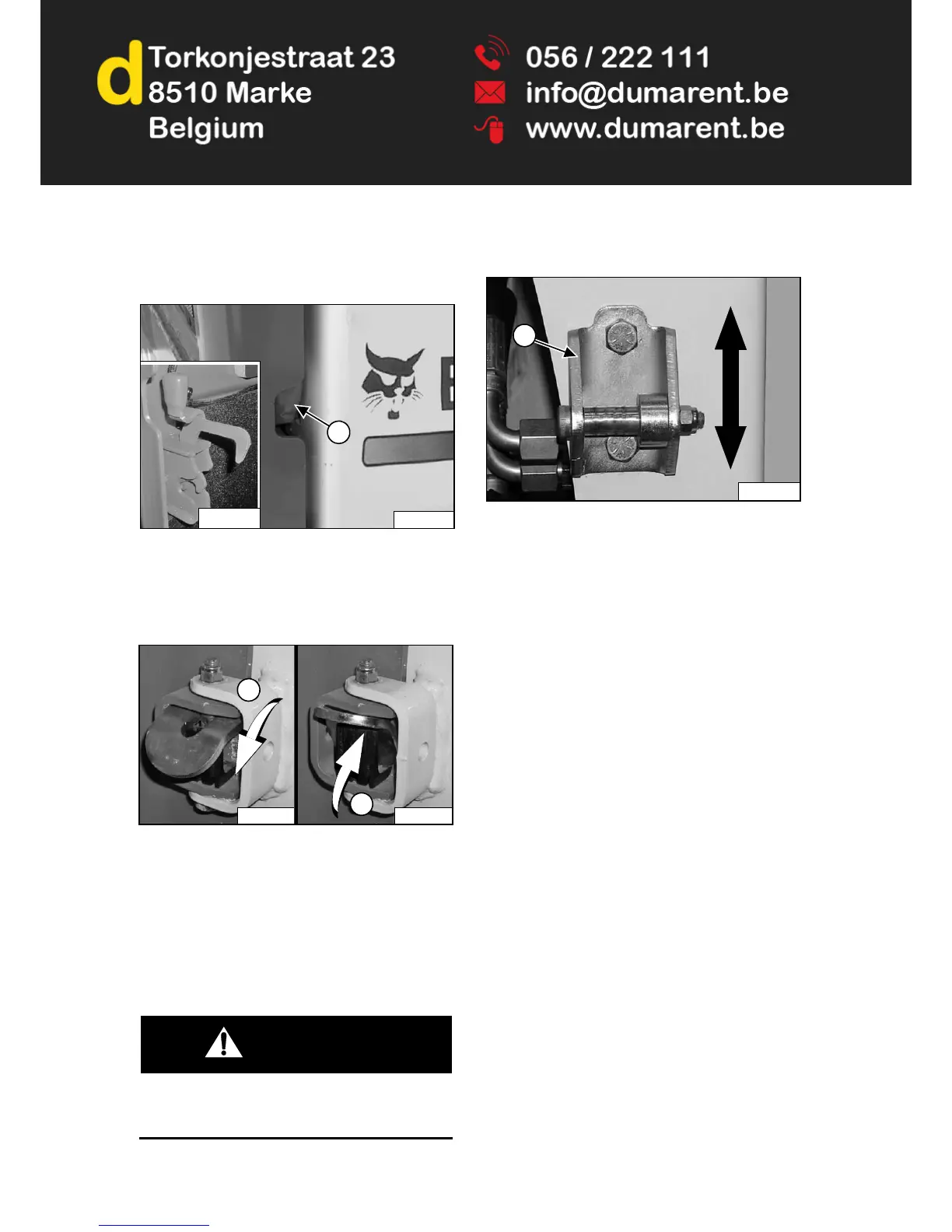

Figure 194
Reach into the slot on the right side of the rear door and
pull the latch handle (Item 1) [Figure 194].
Pull the rear door open.
Figure 195
The rear door is equipped with a door stop feature on the
top hinge.
Move the door stop into the engaged position (Item 1)
[Figure 195] to hold the door open.
Move the door stop up (Item 2) [Figure 195] to
disengage the door stop and allow the door to close.
Close the rear door.
WARNING
Keep the rear door closed when operating the
machine. Failure to do so could seriously injure a
bystander.
W-2020-1285
Adjusting
Figure 196
The door latch (Item 1) [Figure 196] can be adjusted up
or down for alignment with the door latch mechanism.
Close the rear door before operating the loader.
P-85301A
P100043A
1
P-85447
2
P-85446
1
P-85698B
1
