155 S650 Operation & Maintenance Manual
ENGINE COOLING SYSTEM
Check the cooling system every day to prevent over-
heating, loss of performance or engine damage.
Maintenance Platform

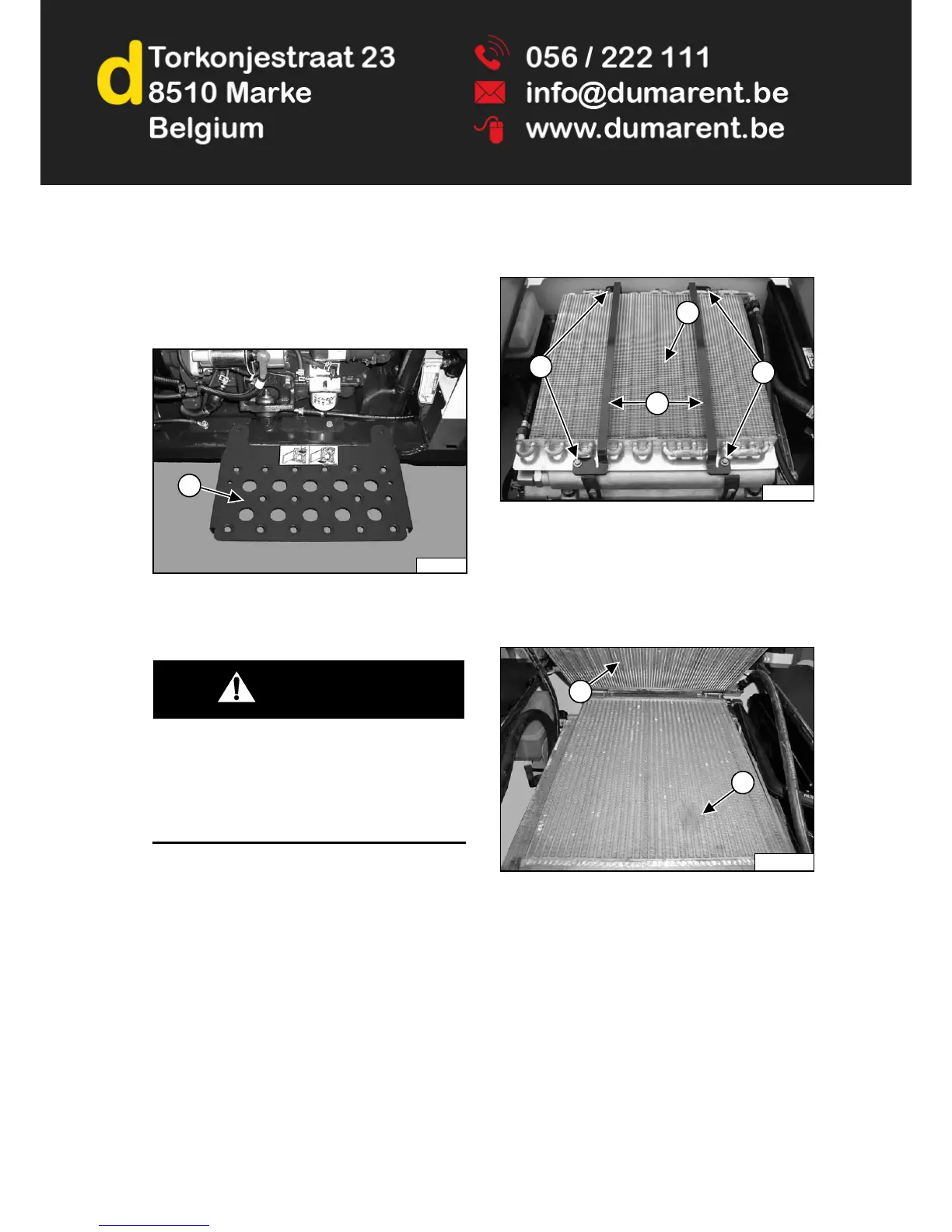

Figure 222
A maintenance platform (Item 1) [Figure 222] is available
from your Bobcat dealer to facilitate access when
cleaning the engine cooling system.
WARNING
AVOID INJURY OR DEATH
Wear safety glasses to prevent eye injury when any
of the following conditions exist:
• When fluids are under pressure.
• Flying debris or loose material is present.
• Engine is running.
• Tools are being used.
W-2019-0907
Cleaning
Open the rear door. (See REAR DOOR (TAILGATE) on
Page 144.)
Remove the rear grille. (See REAR GRILLE on Page
145.)
Loaders With Air Conditioning
Figure 223
Use low air pressure or water pressure to clean the top of
the air conditioning condenser (Item 1) [Figure 223].
The area between the air conditioning condenser and the
oil cooler will require occasional cleaning. Remove the
bolts (Item 2) and the brackets (Item 3) [Figure 223].
Figure 224
NOTE: Be careful when raising and lowering the air
conditioning condenser so that the air
conditioning condenser does not fall on the
oil cooler and damage the fins.
Raise the air conditioning condenser (Item 1) and use
low air pressure or water pressure to clean the top of the
oil cooler (Item 2) [Figure 224].
Lower the air conditioning condenser (Item 1)
[Figure 224]. Install the brackets (Item 3) [Figure 223]
and the bolts (Item 2) [Figure 223].
P100040A
1
P107097
1
2
2
3
P107097A
1
2
