156 S650 Operation & Maintenance Manual
ENGINE COOLING SYSTEM (CONT’D)
Cleaning (Cont’d)
Loaders Without Air Conditioning

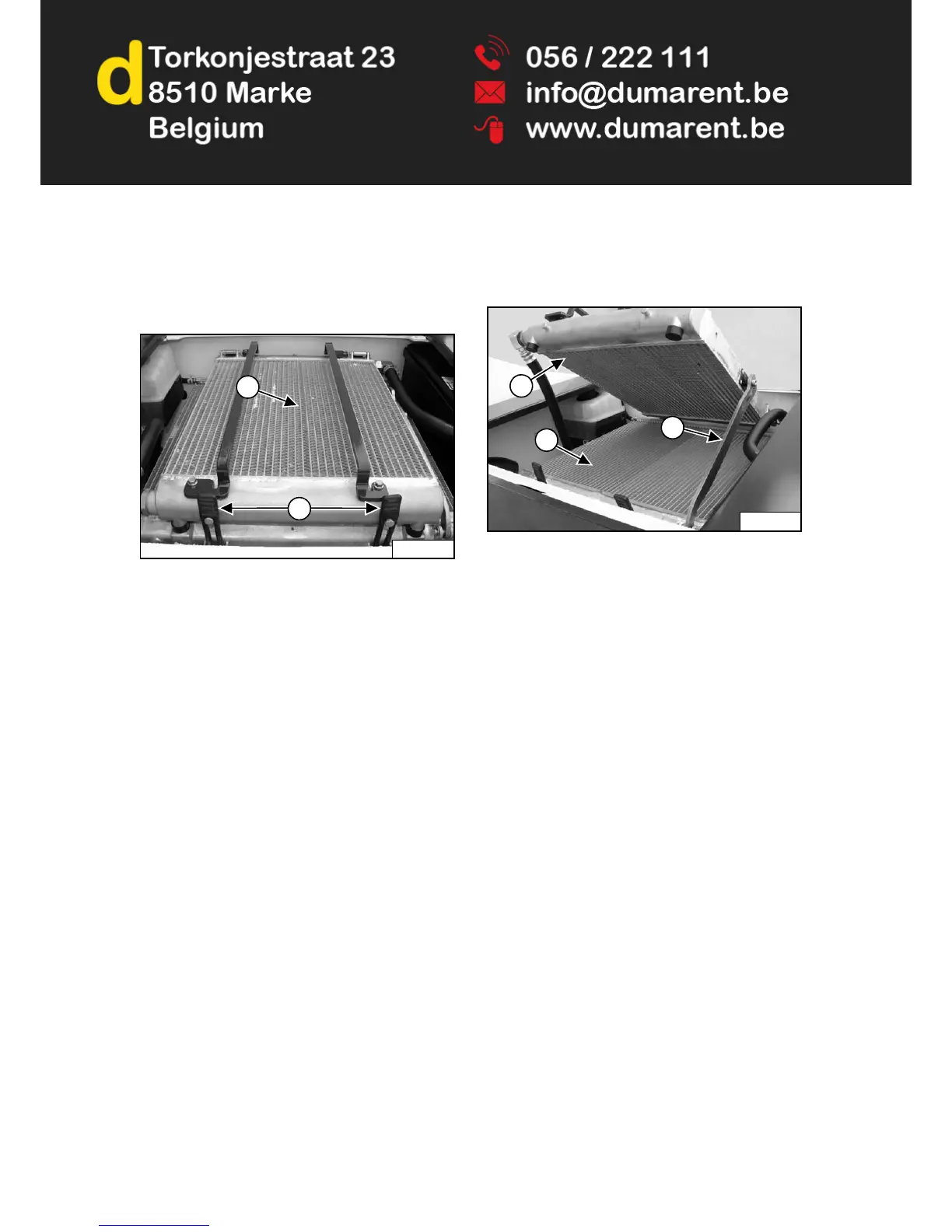

Figure 225
Use low air pressure or water pressure to clean the top of
the oil cooler (Item 1) [Figure 225].
All Loaders
Unhook the two rubber straps (Item 2) [Figure 225].
Figure 226
Raise the oil cooler (Item 1) until the bar (Item 2) drops
into the last position to support the oil cooler. Use low air
pressure or water pressure to clean the top of the radiator
(Item 3) [Figure 226].
Raise the bar (Item 2) [Figure 226] slightly and lower the
oil cooler. Fasten the two rubber straps.
Check the cooling system for leaks.
Install the rear grille and close the rear door.
P100181
1
2
P100179
3
1
2
