HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic Fluid
For the correct service interval (See SERVICE
SCHEDULE on Page 131.)
Replace the fluid if it becomes contaminated or after
major repair.
Always replace the hydraulic / hydrostatic filter and the
hydraulic charge filter whenever the hydraulic fluid is
replaced. (See Removing And Replacing Hydraulic /
Hydrostatic Filter on Page 167.)
Remove the rear grille. (See REAR GRILLE on Page
145.)

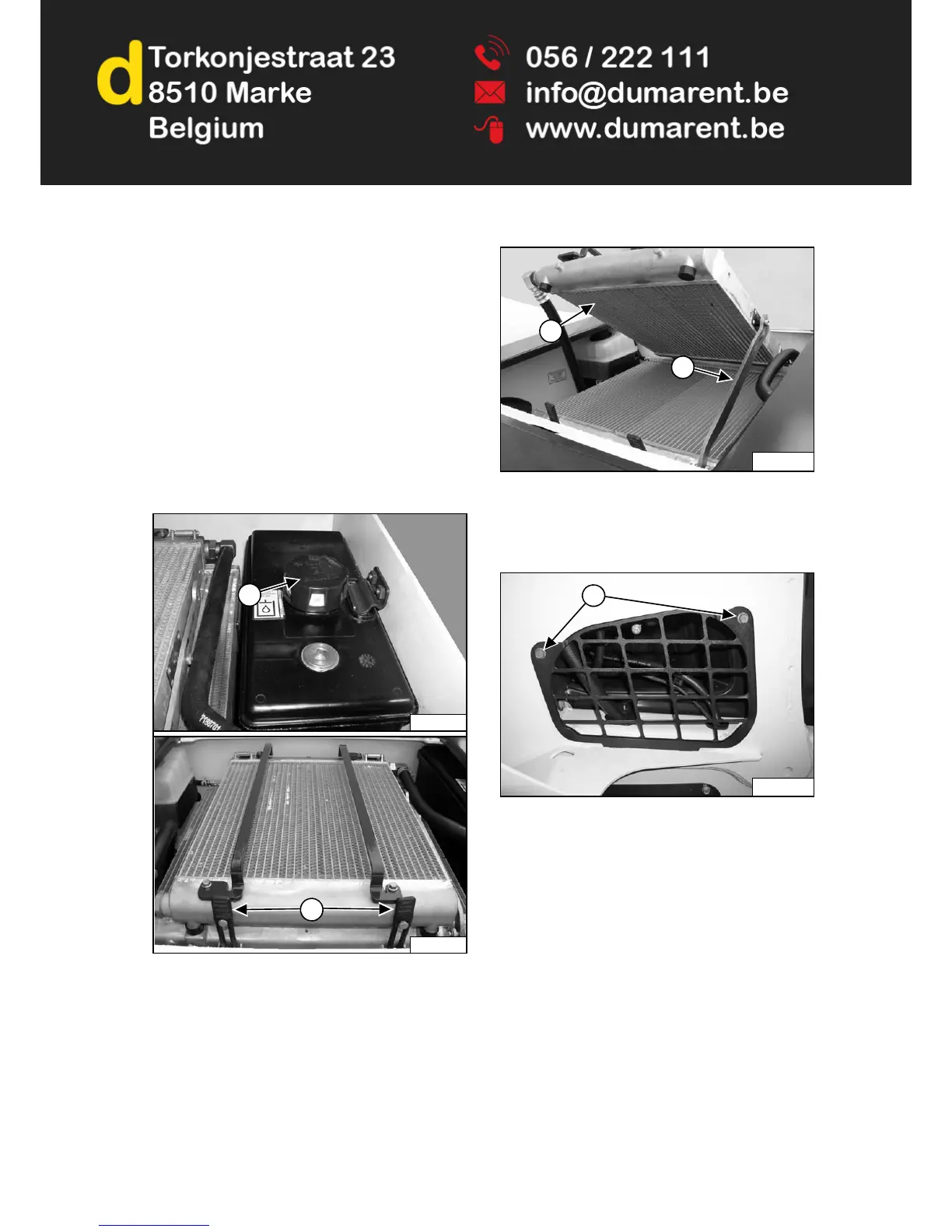

Figure 243
Remove the hydraulic fill cap (Item 1) and unhook the two
rubber straps (Item 2) [Figure 243].
Figure 244
Raise the oil cooler (Item 1) until the bar (Item 2)
[Figure 244] drops into the last position to support the oil
cooler. This will aid in draining the hydraulic fluid.
Figure 245
Remove the right side access cover bolts (Item 1)
[Figure 245] and remove the cover. (Lift arms shown
raised for visual clarity.)
2
P100181
1
P100055
P100179
1
2
P100007
1
