166 S650 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic Fluid (Cont’d)

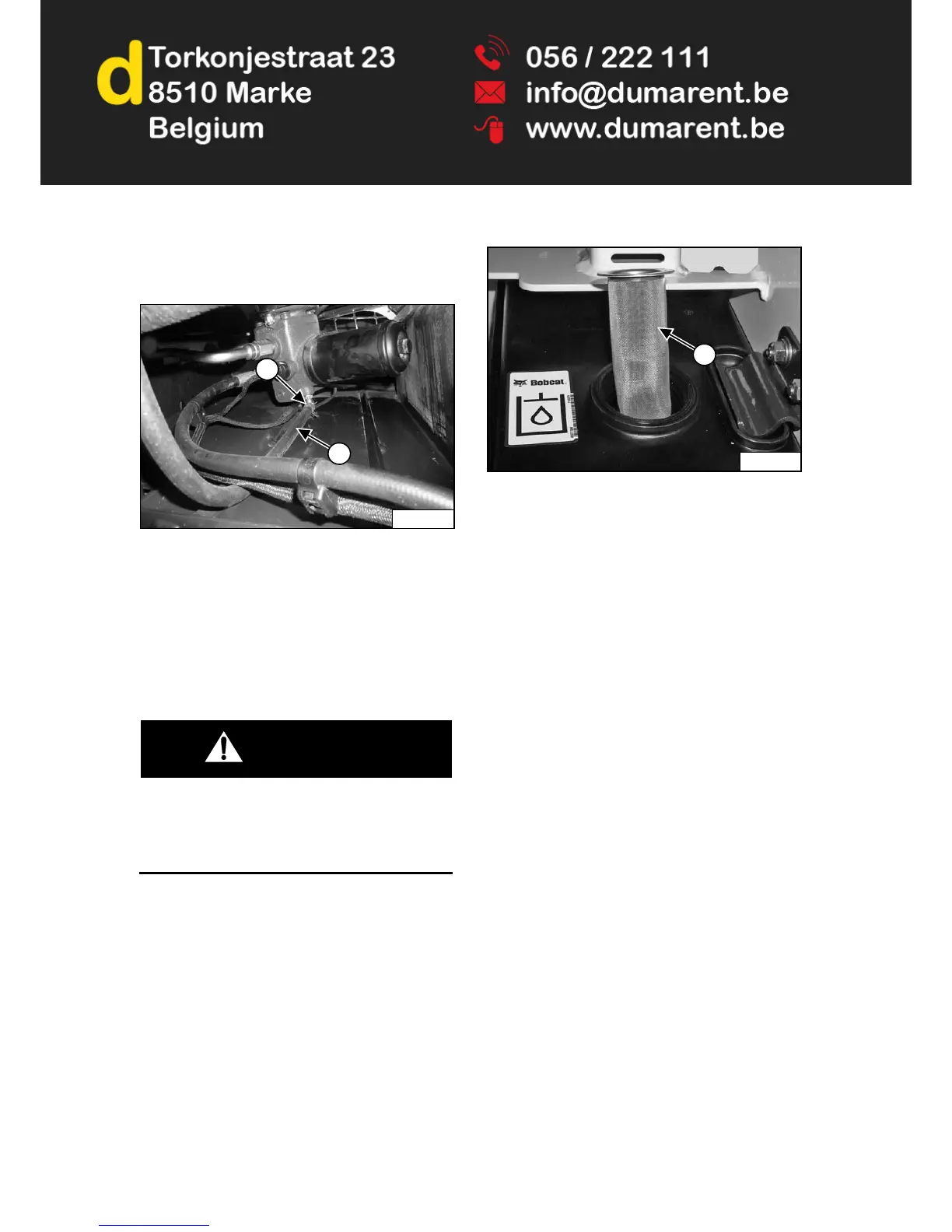

Figure 246
Remove the clamp (Item 1). Pinch off the hose (Item 2)
[Figure 246] near the fitting and disconnect hose from
the fitting. Route the hose out the side of the loader and
drain the fluid into a container.
Connect the hose to the fitting when the fluid stops
draining.
Recycle or dispose of used fluid in an environmentally
safe manner.
WARNING
AVOID INJURY OR DEATH
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire.
W-2103-0508
Install the side access cover.
Raise the bar supporting the oil cooler and lower the oil
cooler. Fasten the two rubber straps.
Figure 247
Remove and clean the hydraulic fill screen (Item 1)
[Figure 247]. Use low air pressure to dry the screen.
Install hydraulic fill screen and add the correct fluid to the
reservoir until the fluid level is within the operating range
of the sight gauge. (See Capacities on Page 205.) and
(See Checking And Adding Fluid on Page 164.)
Install the hydraulic fill cap.
Install the rear grille.
Start the engine and operate the loader hydraulic
controls.
Stop the engine and check for leaks.
Check the fluid level in the reservoir and add as needed.
(See Checking And Adding Fluid on Page 164.)
P-85721
2
1
P-90506A
1
