167 S650 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic / Hydrostatic
Filter
For the correct service interval (See SERVICE
SCHEDULE on Page 131.)
Remove the rear grille. (See REAR GRILLE on Page
145.)
The filter housing is located behind the hydraulic fluid
reservoir.
Clean the top of the filter housing.

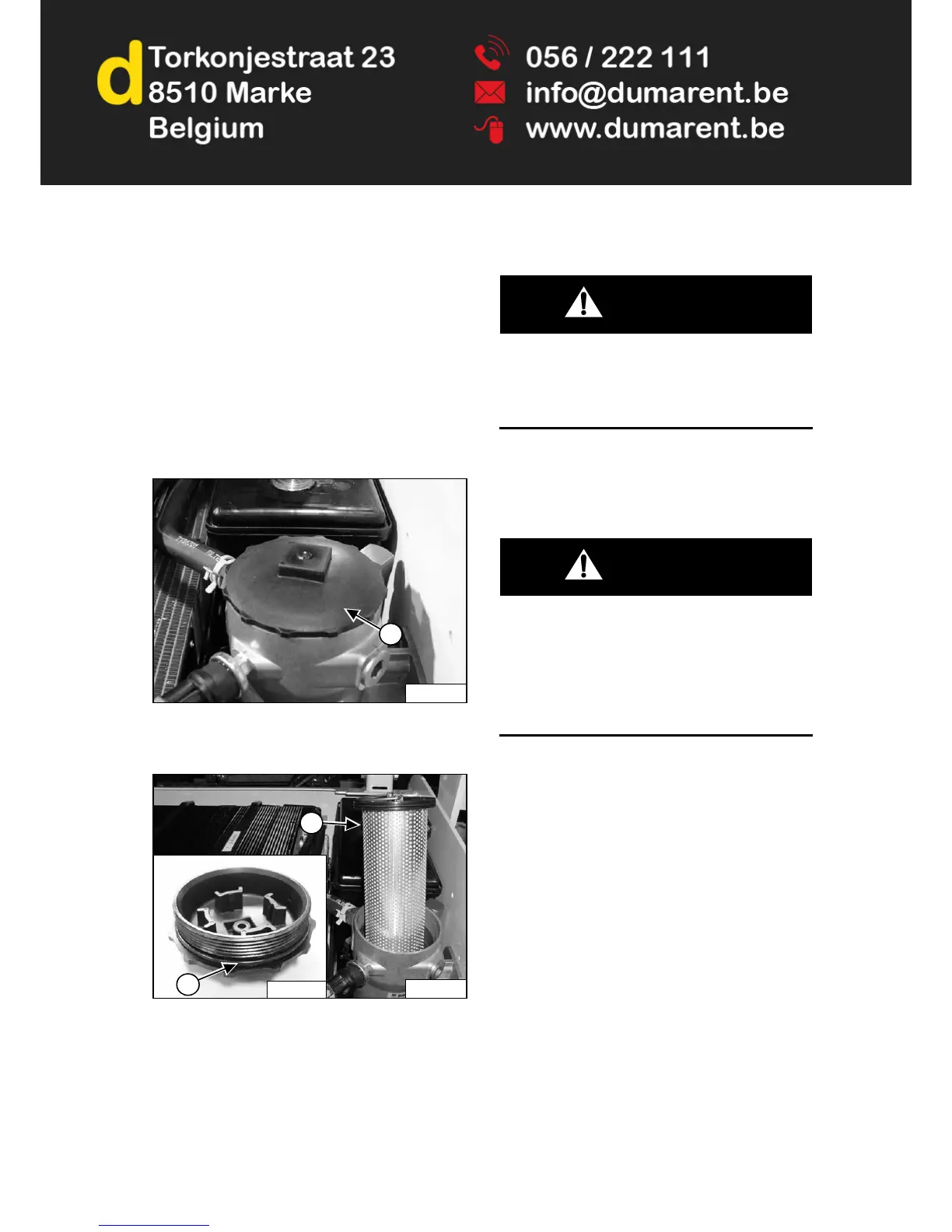

Figure 248
Remove the filter cap (Item 1) [Figure 248].
Figure 249
Remove the filter element (Item 1) [Figure 249] and
discard.
Remove the O-ring (Item 2) [Figure 249] and discard.
Install new O-ring and lubricate with clean oil.
Install new filter element ensuring that element is fully
seated in the housing.
Install the filter cap and tighten to 25 N•m (18 ft-lb)
torque.
WARNING
AVOID INJURY OR DEATH
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire.
W-2103-0508
Install the rear grille.
Start the engine and operate the loader hydraulic
controls.
WARNING
AVOID INJURY OR DEATH
Diesel fuel or hydraulic fluid under pressure can
penetrate skin or eyes, causing serious injury or
death. Fluid leaks under pressure may not be visible.
Use a piece of cardboard or wood to find leaks. Do
not use your bare hand. Wear safety goggles. If fluid
enters skin or eyes, get immediate medical attention
from a doctor familiar with this injury.
W-2072-EN-0909
Stop the engine and check for leaks at the filter.
Check the fluid level in the reservoir and add as needed.
(See Checking And Adding Fluid on Page 164.)
P100047
1
P100046
1
P100044
2
