ALTERNATOR BELT
Belt Adjustment
The alternator belt is a special maintenance free type
that is pretensioned over the pulleys. This belt eliminates
the need for a tensioning device and does not require
periodic adjustment. Contact your Bobcat dealer for
replacement parts.
Belt Replacement
Stop the engine and open the rear door. (See REAR
DOOR (TAILGATE) on Page 144.)
Remove the air conditioning belt. (See AIR
CONDITIONING BELT on Page 175.)

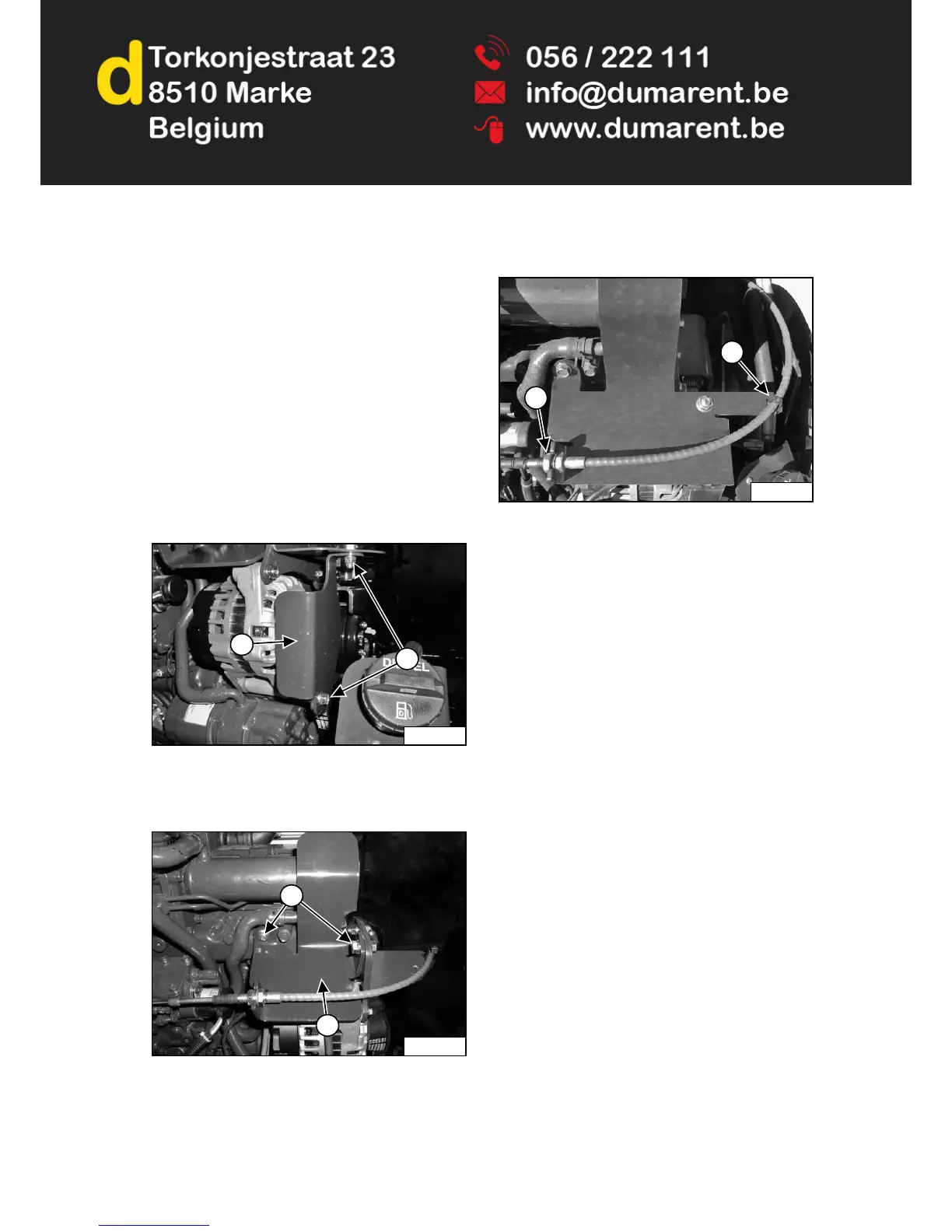

Earlier Models
Figure 260
Remove the belt shield mounting nuts and bolts (Item 1)
and remove the belt shield (Item 2) [Figure 260].
Figure 261
Remove the cable bracket mounting nut and bolts (Item
1) and move the cable bracket (Item 2) [Figure 261] up
slightly.
Later Models
Figure 262
Loosen the throttle cable nut (Item 1) and cut the tie-strap
(Item 2) [Figure 262].
