174 S650 Operation & Maintenance Manual
ALTERNATOR BELT (CONT’D)
Belt Replacement (Cont’d)
Later Models (Cont’d)

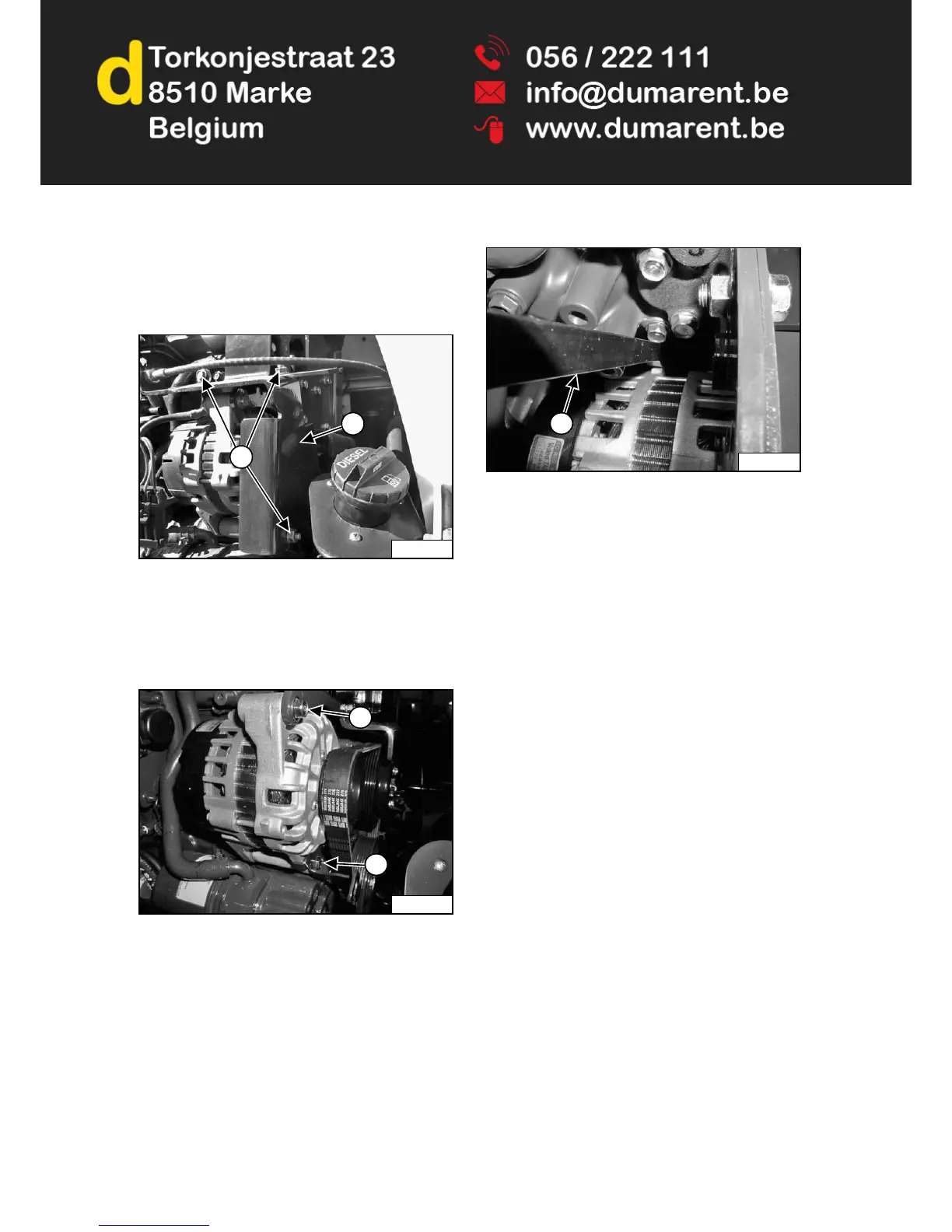

Figure 263
Remove the throttle bracket mounting nuts and bolts
(Item 1) and remove the throttle bracket (Item 2)
[Figure 263].
All Models
Figure 264
Remove the top alternator mounting bolt (Item 1) and
loosen the bottom alternator mounting bolt (Item 2)
[Figure 264].
Move the alternator toward the engine as far as it will go
and remove the belt from the pulleys. Inspect the pulleys
for wear.
Install new belt.
Figure 265
Use a prybar (Item 1) [Figure 265] to move the alternator
until the top alternator mounting bolt (Item 1)
[Figure 264] can be installed.
Tighten the top and bottom alternator mounting bolts
(Items 1 and 2) [Figure 264].
Install the air conditioning belt. (See AIR
CONDITIONING BELT on Page 175.)
Install the cable bracket [Figure 261] and the belt shield
[Figure 260]. (Earlier models)
OR
Install the throttle bracket [Figure 263] and the throttle
cable [Figure 262]. Install a new tie-strap. (Later models)
Close the rear door.
P107091
1
2
P-90474
2
1
P-90475
1
