175 S650 Operation & Maintenance Manual
AIR CONDITIONING BELT
This machine may be equipped with Air Conditioning.
Belt Adjustment
The air conditioning belt is a special maintenance free
type that is pretensioned over the pulleys. This belt
eliminates the need for a tensioning device and does not
require periodic adjustment. Contact your Bobcat dealer
for replacement parts.
Belt Replacement
Stop the engine and open the rear door. (See REAR
DOOR (TAILGATE) on Page 144.)

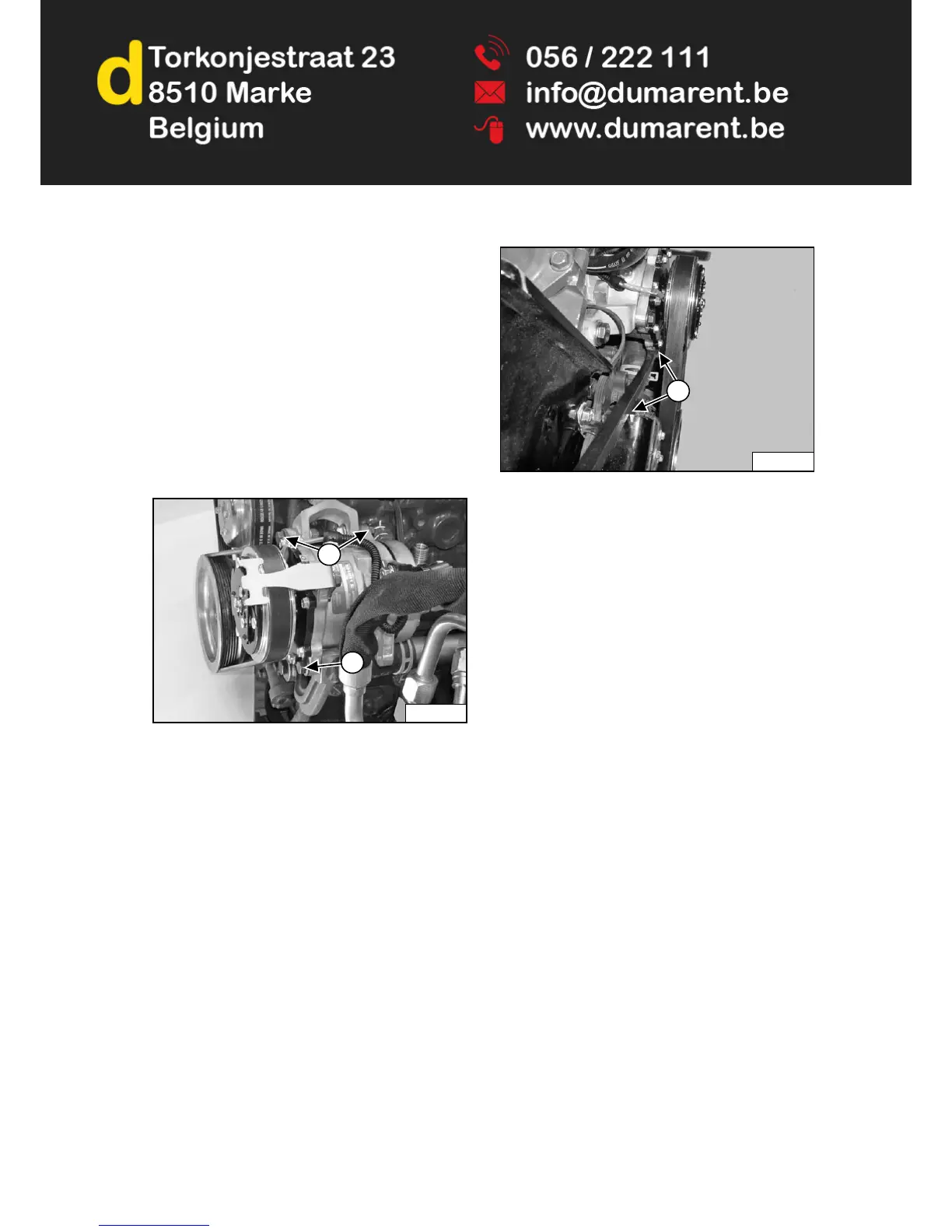

Figure 266
NOTE: The engine is shown removed for visual
clarity.
Remove the bottom air conditioning compressor
mounting bolt (Item 2) [Figure 266].
Loosen the top air conditioning compressor mounting
bolts (Item 1) [Figure 266].
Move the air conditioning compressor toward the engine
as far as it will go and remove the belt from the pulleys.
Inspect the pulleys for wear.
Install new belt.
Figure 267
Use a prybar at the two leverage points (Item 1)
[Figure 267] to move the air conditioning compressor
until the bottom air conditioning compressor mounting
bolt (Item 2) [Figure 266] can be installed.
Tighten the three mounting bolts (Items 1 and 2)
[Figure 266].
Close the rear door.
