PIVOT PINS
Inspection And Maintenance

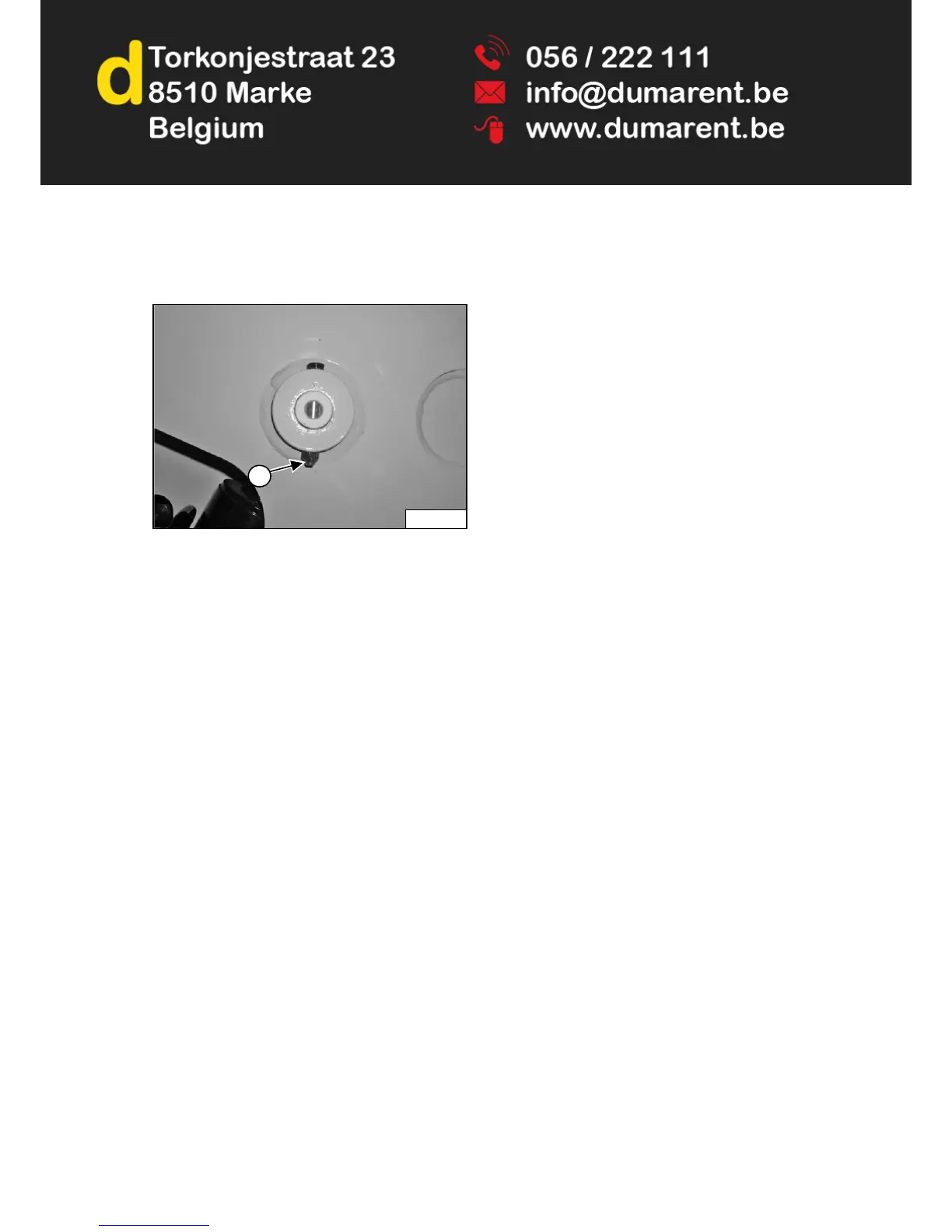

Figure 287
All lift arm and cylinder pivots have a large pin held in
position with a retainer bolt and lock nut (Item 1)
[Figure 287].
Check that the lock nuts are tightened to 48 - 54 N•m (35
- 40 ft-lb) torque.
P100004
1
